Parker派克液压软管Parker hose
高压Parkrimp软管701-701TC
High Pressure Parkrimp Hoses 701 - 701TC
Parker派克流体连接件Parker fluid connectors

Parker的No-Kive高压软管701和701TC设计用于45,0 MPa的工作压力和-40°C至+100°C的温度范围。软管范围与钢和不锈钢的No-Skive接头兼容。Parker's No-Skive High Pressure hoses 701 and 701TC are designed for a working pressure up to 45,0 MPa and a temperature range from -40 °C up to +100 °C. The hose range is compatible with No-Skive fittings in steel and stainless steel.

高压Parkrimp软管701-701TC

Parker's High Pressure No-Skive hoses 701 and 701TC are the preferred hoses for general high pressure hydraulic applications. The hoses are designed with a No-Skive construction and are suitable for a working pressure up to 45,0 MPa. Based on the advanced materials the hose type 701TC is highly abrasion resistant. The Parker High Pressure hose range is complemented by a full selection of compatible No-Skive fittings in steel and stainless steel.派克高压无刮板软管701和701TC是一般高压液压应用的软管。软管设计为无刮板结构，适用于高达45.0 MPa的工作压力。基于先进的材料，701TC型软管具有高耐磨性。派克高压软管系列由全套兼容的不锈钢和无刮板配件组成。

Markets:
- Construction Equipment施工设备
- Injection Moulding注塑成型
- Forestry and Agriculture林业和农业
- Materials Handling材料处理
- Pulp and Paper纸浆和纸张

Features/Benefits:
- Reinforcement of four spirals high-tensile steel wire - according to ISO 3862 - EN 856 Type 4SP.根据ISO 3862-EN 856 4SP型，四螺旋高强度钢丝的加固。
- Matched hose and fitting system guarantees an approved and safe combination and the highest quality and safety, combined with the longest service life of the final product to the end-users.匹配的软管和配件系统保证了经批准和安全的组合，以及高的质量和安全性，并为用户提供了长的产品使用寿命。
- The hose type 701TC has a tough cover (TC) and is therefore ideal for applications where high abrasion resistance is required. Tough cover 80 x greater abrasion resistance than standard rubber cover hoses.701TC型软管具有坚固的盖子（TC），因此非常适合需要高耐磨性的应用场合。坚固的保护层80倍于标准橡胶盖软管的耐磨性。
- 701TC is also MSHA approved and suitable for temporary immersion in mineral oil up to 70 °C with frequent inspections.701TC也获得了MSHA的批准，适合于在高达70°C的矿物油中临时浸泡，并进行频繁检查。
- Complete No-Skive fitting technology across the full range of medium pressure hoses providing simpler, quicker and safer hose assembly.全套中压软管的全套无刮板安装技术，提供更简单、更快和更安全的软管装配。

Applications:
- General high pressure hydraulic applications一般高压液压应用

Parker's High Pressures Hoses 701 and 701TC are compatible with the Parker Parkrimp medium pressure fitting series 70.派克的701和701TC高压软管与派克Parkrimp中压接头系列70兼容。

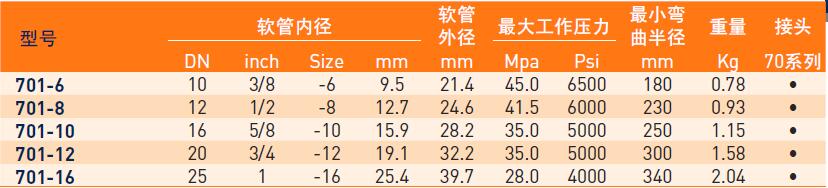

701 - ISO 3862-1 4SP, EN 856 4SP
