Parker派克液压软管Parker hose

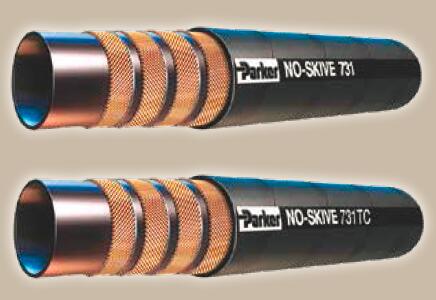

高压Parkrimp软管731-731TC
High Pressure Parkrimp Hoses 731 - 731TC
Parker派克流体连接件Parker fluid connectors
派克的高压无擦伤软管731和731TC符合ISO 3862-EN 856 4SH型无擦伤软管结构是所有一般高压液压应用的软管系列。Parker's High Pressure No-Skive hose 731 and 731TC according to ISO 3862 - EN 856 Type 4SH with the No-Skive hose construction is the ideal hose range for all general high pressure hydraulic applications.
高压Parkrimp软管731-731TC
构成材料： |
内胶层：合成橡胶
增强层：四层钢丝缠绕
外胶层：合成橡胶 |
适用介质： |
石油基液压油，水乙二醇，润滑油，空气和水 |
温度范围： |
-40°C至+100°C，除：空气：+70°C；水：+85°C |
适用接头： |
73系列 |
优势与优点： |
No-Skive?不剥胶技术
4层钢丝缠绕增强层 |
Parker's High Pressure No-Skive hose 731 and 731TC according to ISO 3862 - EN 856 Type 4SH with the No-Skive hose construction is the ideal hose range for all general high pressure hydraulic applications.派克的高压无擦伤软管731和731TC符合ISO 3862-EN 856 4SH型无擦伤软管结构是所有一般高压液压应用的软管系列。
Markets:
- Mobile移动
- Industrial工业
Features/Benefits特点/优点:
- Matched hose and fitting system guarantees an approved and safe combination and the highest quality and safety, combined with the longest service life of the final product to the end-users.匹配的软管和配件系统保证了经批准和安全的组合，以及高的质量和安全性，并为用户提供了长的产品使用寿命
- The tough cover of 731TC over 80 x greater abrasion resistance than standard rubber cover hoses and is MSHA approved731TC的坚固盖比标准橡胶盖软管的耐磨性高80倍，并经MSHA批准
- The hose is suitable for temporary immersion in mineral oil up to 70 °C with frequent inspections软管适用于在温度高达70°C的矿物油中临时浸泡，并进行频繁检查
- Complete No-Skive fitting technology across the full range of medium pressure hoses providing simpler, quicker and safer hose assembly.全套无刮板安装技术中压软管提供更简单、更快捷、更安全软管总成
- The Parker High Pressure hose range is complemented by a full selection of compatible No-Skive fittings in steel and stainless steel.派克高压软管系列由全套兼容的钢制无刮板配件不锈钢。
Applications应用:
- General high pressure hydraulic applications一般高压液压应用
Parker's Medium Pressures Hoses 731 and 731TC are compatible with the Parker Parkrimp high pressure fitting series 73.派克的中压软管731和731TC与派克Parkrimp高压接头系列73兼容。
|

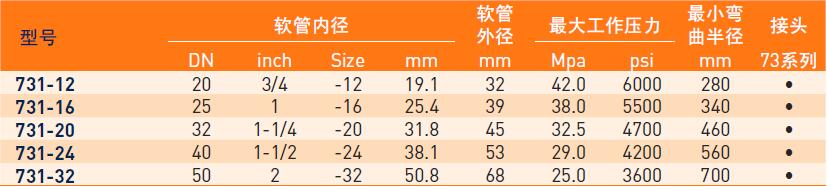

性能特点 |
额定软管内径： |
19 to 51 |
软管内径： |
3/4 to 2 inch
19.1 to 50.8 mm |
软管外径： |
32.0 to 68.0 mm |
兼容配件： |
Parkrimp 73 Series Fittings |
高运行温度： |
100 °C
70 °C
85 °C |
低运行温度： |
-40 °C |
重量： |
1,72 to 5,30 kg |
运行压力： |
25.0 to 42.0 MPa
3600 to 6000 psi |
爆破压力： |
100.0 to 168.0 MPa
14400 to 24000 psi |
弯曲半径： |
280 to 700 mm |
行业应用： |
合成橡胶 |
盖材料： |
合成橡胶，MSHA批准的高耐磨合成橡胶 |
软管加固材料和结构： |
四螺旋高强度钢丝 |
介质： |
石油和水乙二醇基液体，润滑油，空气和水。 |
应用： |
一般高压液压应用 |
符合规格： |
ISO 3862 Type 4SH - EN 856 Type 4SH |
731 - ISO 3862 TYPE 4SH / DIN EN 856 TYPE 4SH / SAE J1942
| Part |
Hose Inside Diameter |
Hose Cover Type |
| 731-12 |
-12 |
Standard |
| 731-16 |
-16 |
Standard |
| 731-20 |
-20 |
Standard |
| 731-24 |
-24 |
Standard |
| 731-32 |
-32 |
Standard |
| 731TC-12 |
-12 |
Tough Cover |
| 731TC-16 |
-16 |
Tough Cover |
| 731TC-20 |
-20 |
Tough Cover |
| 731TC-24 |
-24 |
Tough Cover |
| 731TC-32 |
-32 |
Tough Cover |
|
