Push-to-Connect Fittings - Water & Beverage Applications | Parker LIQUIfit
推入式连接装置-水和饮料应用 | 派克LIQUIfit

派克的LIQUIfit系列即插即用水和饮料连接器系列为水应用提供了“生态设计”的创新替代产品。Parker's LIQUIfit line of push-to-connect water and beverage connectors offers an "eco-designed" innovative alternative for water applications.

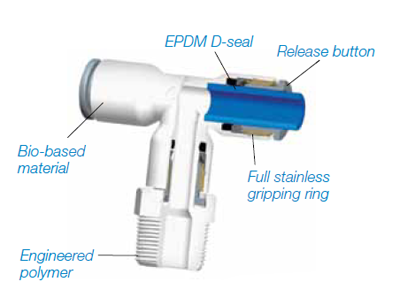

特征Features:
EPDM D密封圈可确保比标准O形圈更大的表面积EPDM D seal secures connection with a larger surface area than standard O-rings
特种聚合物具有出色的机械强度和耐化学性Engineered polymer allows superior mechanical strength and chemical resistance
全不锈钢抓环，无需锁紧夹Full stainless gripping ring eliminates the need for locking clips
释放按钮可保护并支撑油管Release button protects and supports tubing
生物体利用可再生资源Bio-based body utilizes renewable resources
符合FDA FDA compliant

市场Markets:
水过滤Water Filtration
饮料分配Beverage Dispensing
生命科学Life Science
装瓶Bottling
半导体Semi-Conductor



LIQUIfit Connector Selection
6505 - Male Connector
Fractional Inch Tube-to-NPTF & Metric Tube-to-BSPT
6315 - Female Connector
Fractional Inch Tube-to-NPTF & Metric Tube-to-BSPT
6325/6353 - Faucet Connector
Fractional Inch Tube-to-UNS & Metric Tube-to-BSPP
6579 - Fixed Elbow
Fractional Inch Tube-to-NPTF & Metric Tube-to-BSPT
6316 - Bulkhead Union
Fractional Inch & Metric Tube-to-Tube
6306 - Union Connector
Fractional Inch & Metric Tube-to-Tube
6307 - Cross
Metric Tube-to-Tube
6304 - Union Tee
Fractional Inch & Metric Tube-to-Tube
6340 - Union Y Connector
Fractional Inch & Metric Tube-to-Tube
6302 - Union Elbow
Fractional Inch & Metric Tube-to-Tube
6388 - Plug-In Tee
Fractional Inch & Metric Tube-to-Stem
6383 - Plug-In Run Tee
Fractional Inch & Metric Tube-to-Stem
6382 - Plug-In Elbow
Fractional Inch & Metric Tube-to-Stem
6380 - Plug-In 45° Elbow
Metric Tube-to-Stem
6366 - Reducer
Fractional Inch & Metric Tube-to-Stem
6521 - Stem Adapter
Fractional Inch Tube-to-NPTF & Metric Tube-to-BSPT
6509 - Swivel Elbow
Fractional Inch Tube-to-NPTF & Metric Tube-to-BSPT
6503 - Swivel Run Tee
Fractional Inch Tube-to-NPTF & Metric Tube-to-BSPT
6508 - Swivel Branch Tee
Fractional Inch Tube-to-NPTF & Metric Tube-to-BSPT
6531 - End Stop
Fractional Inch & Metric
6548 - Swivel Y Connector
Fractional Inch Tube-to-NPTF
6326 - Plug
Fractional Inch & Metric
6322 - Stem Hose Barb
Fractional Inch & Metric Tube-to-Stem





6505 - Male Connector | Parker

Fractional Inch Tube-to-NPTF
Part Number  Nom Tube O.D. NPTF Thread Size F1 in F2 in H in
6505 56 11WP2 1/4 1/8 1/2 5/32 .67
6505 56 14WP2 1/4 1/4 9/16 5/32 .67
6505 56 18WP2 1/4 3/8 3/4 1/4 .85
6505 60 11WP2 3/8 1/8 3/4 5/32 .87
6505 60 14WP2 3/8 1/4 3/4 1/4 .87
6505 60 18WP2 3/8 3/8 3/4 1/4 .87
6505 60 22WP2 3/8 1/2 15/16 1/4 1.06
6505 62 18WP2 1/2 3/8 15/16 3/8 1.10
6505 62 22WP2 1/2 1/2 15/16 3/8 1.10
Metric Tube-to-BSPT
Part Number  Nom Tube O.D. BSPT Thread Size F1 mm F2 mm H mm
6505 04 10WP2 4 R1/8 11 3 18
6505 04 13WP2 4 R1/4 14 3 18
6505 06 10WP2 6 R1/8 11 4 18
6505 06 13WP2 6 R1/4 14 4 18
6505 08 10WP2 8 R1/8 17 6 20
6505 08 13WP2 8 R1/4 17 6 20
6505 08 17WP2 8 R3/8 17 6 20
6505 10 13WP2 10 R1/4 17 7 21.5
6505 10 17WP2 10 R3/8 19 7 21.5
6505 10 21WP2 10 R1/2 22 7 21.5
6505 12 17WP2 12 R3/8 19 9 24.5
6505 12 21WP2 12 R1/2 22 9 24.5





6315 - Female Connector | Parker LIQUIfit

Fractional Inch Tube-to-NPTF
Part Number Tube Size (in) C NPTF E F H
6315 56 14WP2 1/4 1/4 14 11/16 1.18
6315 60 18WP2 3/8 3/8 14 3/16 1.42
Metric Tube-to-BSPT
Part Number Tube Size (mm) C BSPT E F H
6315 06 10WP2 6 R1/8 11 3 18
6315 06 13WP2 6 R1/4 14 3 18
6315 08 13WP2 8 R1/8 11 4 18
6315 08 17WP2 8 R1/4 14 4 18





6325/6353 - Faucet Connectors | Parker LIQUIfit

Fractional Inch Tube-to-UNS
Part Number Tube Size (in) UNS Thread Size E F H
6325 56 133WP2 1/4 7/16-24 27 9/16 1.22
6325 60 133WP2 3/8 7/16-24 27 9/16 1.26
Metric Tube-to-BSPP
Part Number Tube Size (mm) BSPP Thread Size E F H
6353 10 21WP2 10 - 27 9/16 -





6579 - Fixed Elbow | Parker LIQUIfit

Fractional Inch Tube-to-NPTF
Part Number  Tube Size (in) C NPTF F H L
6579 56 11WP2 1/4 1/8 3/8 .87 .71
6579 56 14WP2 1/4 1/4 3/8 1.03 .71
6579 56 18WP2 1/4 3/8 3/8 1.04 .71
6579 60 14WP2 3/8 1/4 1/2 1.26 1.02
6579 60 18WP2 3/8 3/8 1/2 1.26 1.02
Metric Tube-to-BSPT
Part Number  Tube Size (mm) C BSPT F H L
6579 06 10WP2 6 1/8 10 14 19
6579 06 13WP2 6 1/4 10 14 19
6579 06 17WP2 6 3/8 10 14 19





6316 - Bulkhead Union | Parker LIQUIfit

Fractional Inch Tube-to-Tube
Part Number  Tube Size (in) F K Max L1 L2 T Min
6316 04 00WP2 5/32 .51 .22 .41 .61 .41
6316 56 00WP2 1/4 .59 .33 .39 .79 .49
6316 08 00WP2 5/16 .71 .57 .41 1.06 .61
6316 60 00WP2 3/8 .87 .57 .49 1.16 .73
6316 62 00WP2 1/2 1.41 .81 .67 1.59 1.00
Metric Tube-to-Tube
Part Number Tube Size (mm) F K Max L1 L2 T Min
6316 04 00WP2 4 13 5.50 10.50 15.50 10.50
6316 06 00WP2 6 15 8.50 10.00 20.00 12.50
6316 08 00WP2 8 18 14.50 10.50 27.00 15.50
6316 10 00WP2 10 22 14.50 13.00 30.00 18.50
6316 12 00WP2 12 26 18.50 15.50 35.00 22.50





6306 - Union Connector | Parker LIQUIfit

Fractional Inch Tube-to-Tube
Part Number Tube 1
Size(in) 		Tube 2
Size(in) 		G L
6306 56 00WP2 1/4 1/4 .43 1.18
6306 08 00WP2 5/16 5/16 .53 1.46
6306 60 00WP2 3/8 3/8 .63 1.65
6306 62 00WP2 1/2 1/2 .87 2.24
6306 56 60WP2 1/4 3/8 .63 1.61
6306 56 08WP2 1/4 5/16 .53 1.46
6306 08 60WP2 5/16 3/8 .63 1.65
6306 08 62WP2 5/16 1/2 .87 2.16
6306 60 62WP2 3/8 1/2 .87 2.20
Metric Tube-to-BSPT
Part Number Tube
O.D. 		Tube 2
O.D. 		G1
mm 		G2
mm 		L
mm
6306 04 00WP2 4 4 8.5 8.5 26.5
6306 06 00WP2 6 6 10.5 10.5 30
6306 08 00WP2 8 8 13.5 13.5 37
6306 10 00WP2 10 10 16 16 42
6306 12 00WP2 12 12 19 19 50.5
6306 04 06WP2 4 6 8.5 10.5 29
6306 04 08WP2 4 8 13.5 13.5 37
6306 06 08WP2 6 8 13.5 13.5 37
6306 06 10WP2 6 10 16 16 42
6306 08 10WP2 8 10 16 16 42
6306 08 12WP2 8 12 19 19 50
6306 10 12WP2 10 12 19 19 50





6307 - Cross | Parker LIQUIfit

Fractional Inch Tube-to-BSPP
Part Number Tube Size (mm) H L T
6307 06 00WP2 6 46 22.5 4.2
6307 08 00WP2 8 46 22.5 4.2





6304 - Union Tee | Parker LIQUIfit

Fractional Inch Tube-to-Tube
Part Number  Tube 1 Size (in)  Tube 2 Size (in) H L2
6304 04 00WP2 5/32 5/32 .79 .61
6304 56 00WP2 1/4 1/4 .94 .71
6304 08 00WP2 5/16 5/16 1.14 .89
6304 60 00WP2 3/8 3/8 1.34 1.02
6304 62 00WP2 1/2 1/2 1.85 1.42
6304 60 56WP2 3/8 1/4 1.34 1.02
6304 62 60WP2 3/8 1/2 1.85 1.42
Metric Tube-to-Tube
Part Number Tube Size (mm) H L2
6304 04 00WP2 4 20.00 15.50
6304 06 00WP2 6 23.00 18.00
6304 08 00WP2 8 29.00 22.50
6304 10 00WP2 10 34.50 26.50
6304 12 00WP2 12 40.00 31.00





6340 - Union Y Connector | Parker LIQUIfit

Fractional Inch Tube-to-Tube
Part Number  Tube Size (in)  H K L N
6340 04 00WP2 5/32 .69 .33 1.18 .35
6340 56 00WP2 1/4 .87 .43 1.42 .45
6340 08 00WP2 5/16 1.10 .53 1.75 .57
6340 60 00WP2 3/8 1.30 .63 2.08 .67
6340 62 00WP2 1/2 1.77 .87 2.64 .91
Metric Tube-to-Tube
Part Number Tube Size (mm) H K L N
6340 04 00WP2 4 17.50 8.50 30.00 9.00
6340 06 00WP2 6 21.50 10.50 36.50 11.00
6340 08 00WP2 8 28.00 13.50 44.50 14.50
6340 10 00WP2 10 33.00 33.00 53.00 17.00
6340 12 00WP2 12 39.00 39.00 60.50 20.00





6302 - Union Elbow | LIQUIfit Push-to-Connect Fittings | Water & Beverage Connectors | Parker

Fractional Inch Tube-to-Tube
Part Number  Tube 1 Size (in)  Tube 2 Size (in) L
6302 04 00WP2 5/32 5/32 .75
6302 56 00WP2 1/4 1/4 .94
6302 08 00WP2 5/16 5/16 1.16
6302 60 00WP2 3/8 3/8 1.34
6302 62 60WP2 1/2 1/2 1.83
6302 56 08WP2 1/4 5/16 1.16
6302 08 60WP2 5/16 3/8 1.34
6302 56 60WP2 3/8 1/4 1.30
6302 60 62WP2 3/8 1/2 1.83
Metric Tube-to-Tube
Part Number Tube 1 Size (mm) Tube 2 Size (mm) L
6302 04 00WP2 4 4 19.50
6302 06 00WP2 6 6 24.00
6302 08 00WP2 8 8 29.50
6302 10 00WP2 10 10 34.50
6302 12 00WP2 12 12 40.50
6302 04 06WP2 4 6 24.00
6302 06 08WP2 6 8 29.50
6302 08 10WP2 8 10 34.50
6302 10 12WP2 10 12 40.50





6388 - Plug-In Tee | Parker LIQUIfit

Fractional Inch Tube-to-Stem
Part Number  Tube 1 Size (in) Tube 2 Size (in) H H1 H2 L2
6388 56 00WP2 1/4 1/4 1.20 .43 .79 .71
6388 08 00WP2 5/16 5/16 1.32 .31 .85 .90
6388 60 00WP2 3/8 3/8 1.65 .49 .98 .98
6388 62 00WP2 1/2 1/2 2.01 .51 1.14 1.26
Metric Tube-to-Stem
Part Number Tube 1 Size (mm) Tube 2 Size (mm) H H1 H2 L2
6388 04 00WP2 4 4 25.00 6.00 15.50 15.00
6388 06 00WP2 6 6 28.50 7.00 17.00 16.00
6388 08 00WP2 8 8 33.50 8.00 21.50 23.00
6388 10 00WP2 10 10 41.00 9.50 24.50 26.50





6383 - Plug-In Run Tee | Parker LIQUIfit

Fractional Inch Tube-to-Stem
Part Number  Tube 1 Size (in) Tube 2 Size (in) H H1 H2 L
6383 56 00WP2 1/4 1/4 1.20 .43 .71 .71
6383 56 60WP2 1/4 3/8 1.55 .43 .96 1.00
6383 60 00WP2 3/8 3/8 1.55 .43 .96 1.04
6383 62 00WP2 1/2 1/2 1.93 .71 1.12 1.42
Metric Tube-to-Stem
Part Number Tube 1 Size (mm) Tube 2 Size (mm) H H1 H2 L
6383 04 00WP2 4 4 33.00 6.00 15.50 15.00
6383 06 00WP2 6 6 38.50 7.00 17.00 18.00
6383 08 00WP2 8 8 49.00 8.00 21.50 23.00
6383 10 00WP2 10 10 57.00 10.50 25.50 26.50





6382 - Plug-In Elbow | Parker LIQUIfit

Fractional Inch Tube-to-Stem
Part Number  Tube 1 Size (in) Tube 2 Size (in) H H1 H2 L
6382 56 00WP2 1/4 1/4 1.20 .43 .71 .71
6382 08 00WP2 5/16 5/16 1.32 .31 .85 .88
6382 60 00WP2 3/8 3/8 1.53 .35 .96 1.04
6382 56 60WP2 1/4 3/8 1.93 .51 1.12 1.42
6382 60 56WP2 3/8 1/4 1.26 .43 .71 1.04
Metric Tube-to-Stem
Part Number Tube 1 Size (mm) Tube 2 Size (mm) H H1 H2 L
6382 04 00WP2 4 4 23.00 6.00 15.50 15.00
6382 06 00WP2 6 6 26.50 7.00 17.00 17.00
6382 08 00WP2 8 8 33.00 8.00 21.50 22.50
6382 10 00WP2 10 10 39.00 9.50 24.50 26.50
6382 12 00WP2 12 12 44.50 10.00 27.00 31.00
6382 04 06WP2 4 6 26.50 7.00 17.00 16.50
6382 06 04WP2 6 4 25.00 7.00 15.50 17.00
6382 06 08WP2 6 8 33.50 8.00 21.50 22.50
6382 08 10WP2 8 10 39.00 9.50 24.50 26.00
6382 10 12WP2 10 12 44.50 10.00 27.00 30.00





6366 - Reducer | Parker LIQUIfit

Metric Tube-to-Stem
Part Number Tube Size (mm) Stem Size (mm) H H1 H2
6380 04 00WP2 4 4 33.5 19.0 13.0
6380 06 00WP2 6 6 39.0 21.0 14.5
6380 08 00WP2 8 8 44.0 21.5 19.5
6380 10 00WP2 10 10 53.0 27.0 23.0
6380 12 00WP2 12 12 58.5 27.5 26.5





6382 - Plug-In Elbow | Parker LIQUIfit

Fractional Inch Tube-to-Stem
Part Number Tube 1 Size
(in) 		Tube 2 Size
(in) 		L L1
6366 56 08WP2 1/4 5/16 1.61 .89
6366 56 60WP2 1/4 3/8 1.61 .81
6366 08 60WP2 5/16 3/8 1.91 1.14
6366 08 62WP2 5/16 1/2 1.91 .87
6366 60 62WP2 3/8 1/2 2.01 1.18
Metric Tube-to-Stem
Part Number Tube 1 Size
(mm) 		Tube 2 Size
(mm) 		L L1
6366 04 06WP2 4 6 38.00 23.50
6366 04 08WP2 4 8 38.00 19.00
6366 06 08WP2 6 8 38.00 20.00
6366 06 10WP2 6 10 39.00 17.50
6366 08 10WP2 8 10 48.50 28.50
6366 08 12WP2 8 12 48.50 24.50
6366 10 12WP2 10 12 52.00 33.50
6366 10 14WP2 10 14 53.00 33.50
6366 12 14WP2 12 14 55.50 33.50





6521 - Stem Adapter | Parker LIQUIfit

Fractional Inch Tube-to-NPTF
Part Number  Tube Size (in) C NPTF F H
6521 56 11WP2 1/4 1/8 1/2 .75
6521 56 14WP2 1/4 1/4 1/2 .75
6521 56 18WP2 1/4 3/8 3/4 .77
6521 60 14WP2 3/8 1/4 3/4 .98
6521 60 18WP2 3/8 3/8 3/4 .98
6521 62 18WP2 1/2 3/8 15/16 1.22
6521 62 22WP2 1/2 1/2 15/16 1.28
Metric Tube-to-BSPT
Part Number Tube Size (mm) C BSPT F H
6521 06 10WP2 6 1/8 13 19
6521 06 13WP2 6 1/4 14 19
6521 06 17WP2 6 3/8 17 19
6521 08 10WP2 8 1/8 19 23
6521 08 13WP2 8 3/4 19 23
6521 08 17WP2 8 3/8 19 23
6521 10 13WP2 10 1/4 19 25
6521 10 17WP2 10 3/8 19 25
6521 10 21WP2 10 1/2 22 25
6521 12 17WP2 12 3/8 22 28
6521 12 21WP2 12 1/2 22 28







6509 - Swivel Elbow | Parker LIQUIfit

Fractional Inch Tube-to-NPTF
Part Number  Tube Size (in) C NPTF F H L
6509 56 11WP2 1/4 1/8 1/2 1.10 .93
6509 56 14WP2 1/4 1/4 9/16 1.10 .93
6509 56 18WP2 1/4 3/8 3/4 1.12 .93
6509 60 14WP2 3/8 1/4 3/4 1.50 1.34
6509 60 18WP2 3/8 3/8 3/4 1.50 1.34
6509 62 18WP2 1/2 3/8 15/16 1.99 1.83
6509 62 22WP2 1/2 1/2 15/16 1.99 1.83
Metric Tube-to-BSPT
Part Number Tube Size (mm) C BSPT F H L
6509 06 10WP2 6 1/8 13 28 24.00
6509 06 13WP2 6 1/4 14 28 24.00
6509 06 17WP2 6 3/8 17 28 24.00
6509 08 10WP2 8 1/8 19 34 29.50
6509 08 13WP2 8 3/4 19 34 29.50
6509 08 17WP2 8 3/8 19 34 29.50
6509 10 13WP2 10 1/4 19 38 34.50
6509 10 17WP2 10 3/8 19 38 34.50
6509 10 21WP2 10 1/2 22 38 34.50
6509 12 17WP2 12 3/8 22 44 40.00
6509 12 21WP2 12 1/2 22 44 40.00





6503 - Swivel Run Tee | Parker

Fractional Inch Tube-to-NPTF
Part Number  Tube Size (in) C NPTF F H L
6503 56 11WP2 1/4 1/8 1/2 1.60 .71
6503 56 14WP2 1/4 1/4 9/16 1.60 .71
6503 56 18WP2 1/4 3/8 3/4 1.63 .71
6503 60 14WP2 3/8 1/4 3/4 1.63 1.02
6503 60 18WP2 3/8 3/8 3/4 1.63 1.02
6503 62 18WP2 1/2 3/8 15/16 2.29 1.40
6503 62 22WP2 1/2 1/2 15/16 2.99 1.40
Metric Tube-to-BSPT
Part Number Tube Size (mm) C BSPT F H L
6503 06 10WP2 6 1/8 13 40.00 18.50
6503 06 13WP2 6 1/4 14 40.00 18.50
6503 06 17WP2 6 3/8 17 40.00 18.50
6503 08 10WP2 8 1/8 19 50.00 23.00
6503 08 13WP2 8 1/4 19 50.00 23.00
6503 08 17WP2 8 3/8 19 50.00 23.00
6503 10 13WP2 10 1/4 19 56.50 26.50
6503 10 17WP2 10 3/8 19 56.50 26.50
6503 10 21WP2 10 1/2 22 56.50 26.500
6503 12 17WP2 12 3/8 22 65.50 31.00
6503 12 21WP2 12 1/2 22 65.50 31.00





6508 - Swivel Branch Tee | Parker LIQUIfit

Fractional Inch Tube-to-NPTF
Part Number  Tube Size (in) C NPTF F H L
6508 56 11WP2 1/4 1/8 1/2 1.10 .71
6508 56 14WP2 1/4 1/4 9/16 1.10 .71
6508 56 18WP2 1/4 3/8 3/4 1.10 .71
6508 60 14WP2 3/8 1/4 3/4 1.50 1.02
6508 60 18WP2 3/8 3/8 3/4 1.50 1.02
6508 62 18WP2 1/2 3/8 15/16 1.97 1.40
6508 62 22WP2 1/2 1/2 15/16 2.00 1.40
Metric Tube-to-BSPT
Part Number Tube Size (mm) C BSPT F H L
6508 06 10WP2 6 1/8 13 28.00 18.00
6508 06 13WP2 6 1/4 14 28.00 18.00
6508 06 17WP2 6 3/8 17 28.00 18.00
6508 08 10WP2 8 1/8 19 34.00 23.00
6508 08 13WP2 8 1/4 19 34.00 23.00
6508 08 17WP2 8 3/8 19 34.00 23.00
6508 10 13WP2 10 1/4 19 38.00 26.50
6508 10 17WP2 10 3/8 19 38.00 26.50
6508 10 21WP2 10 1/2 22 38.00 26.50
6508 12 17WP2 12 3/8 22 44.00 31.00
6508 12 21WP2 12 1/2 22 44.00 31.00





6351 - End Stop | Parker LIQUIfit

Fractional Inch
Part Number Tube Size (in) G H
6351 04 00WP2 5/32 .33 .59
6351 56 00WP2 1/4 .43 .63
6351 08 00WP2 5/16 .53 .85
6351 60 00WP2 3/8 .63 .88
Metric
Part Number Tube Size (mm) G H
6351 04 00WP2 4 8.50 15.00
6351 06 00WP2 6 10.50 17.00
6351 08 00WP2 8 13.50 21.50
6351 10 00WP2 10 16.00 22.00
6351 12 00WP2 12 19.00 27.50





6548 - Swivel Y Connector | Parker LIQUIfit

Fractional Inch Tube-to-NPTF
Part Number  Tube Size (in) NPTF C Hex (in) L H N
6548 56 11WP2 1/4 1/8 1/2 1.59 .88 .45
6548 56 14WP2 1/4 1/4 1/2 1.59 .88 .45
6548 56 18WP2 1/4 3/8 3/4 1.62 .88 .45
6548 60 14WP2 3/8 1/4 3/4 2.24 1.30 .66
6548 60 18WP2 3/8 3/8 3/4 2.24 1.30 .66
6548 62 18WP2 1/2 3/8 15/16 2.80 1.78 .91
6548 62 22WP2 1/2 1/2 15/16 2.84 1.78 .91





6326 - Plug | Parker LIQUIfit

Fractional Inch
Part Number Stem Size (in) L L1
6326 56 00WP2 1/4 1.44 .87
6326 08 00WP2 5/16 1.38 .69
6326 60 00WP2 3/8 1.67 .87
6326 62 00WP2 1.2 1.91 .85
Metric
Part Number Stem Size (mm) L L1
6326 04 00WP2 4 30 15.5
6326 06 00WP2 6 33 16.5
6326 08 00WP2 8 33 17.5
6326 10 00WP2 10 42 21.0
6326 12 00WP2 12 45 22.0





6322 - Stem Hose Barb | Parker LIQUIfit

Fractional Inch
Part Number Stem Size (in) Hose Barb L L1 L2
6322 56 56WP2 1/4 1/4 1.65 1.00 .67
6322 60 56WP2 3/8 1/4 1.97 1.16 .87
6322 60 08WP2 3/8 5/16 1.97 1.16 .87
6322 60 60WP2 3/8 3/8 1.97 1.56 .87
6322 62 60WP2 1/2 3/8 2.05 1.30 1.07
Metric
Part Number Stem Size (mm) Hose Barb L L1 L2
6322 06 04WP2 6 4 37.0 25.0 17
6322 08 06WP2 8 6 39.5 21.0 17
6322 10 07WP2 10 7 50.0 29.5 22










信德迈科技（北京）有限公司 CNMEC Technology
2012年开始Parker中国签约授权经销商

E-mail：sales@cnmec.biz fcg.cnmec@parkerdistribution.com.cn
地址：北京市朝阳区望京街10号望京SOHO塔1C座2115室
邮编：100102
电话：010-8428 2935, 8428 9077, 8428 3983
手机：139 101 22694 | 139 1096 2635
Http：//www.cnmec.biz
传真：010-8428 8762

Since 2007 Strong Distribution & Powerful Partnerships


京ICP备08000876号-8
京公网安备 11010502019740
