Parker派克流体连接件Parker fluid connectors
Parker派克液压软管接头hydraulic-hose-fitting
Parkrimp26系列扣压式液压软管接头
Parker派克 Crimp Style Hydraulic Hose Fitting – 26 Series Fittings

派克26系列是适合于Parkrimp扣压设备家族的，腰鼓型的扣压式软管接头。该接头系列成本低廉，效率高效，能便利快速地进行软管总成加工。Parker's 26 series fittings are permanent, compression style fittings made for easy and quick assembly using our family of Parkrimp crimpers.





材质： 碳钢、不锈钢
适用软管： 206, 213

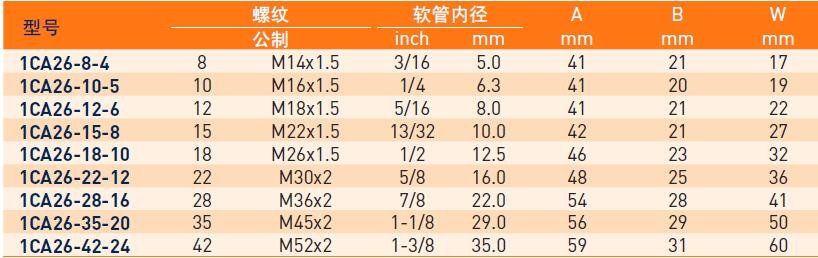

1CA26 - 公制24°锥内螺纹带O形圈 - 轻系列 - 直接头 - ISO 12151-2-SWS-L - DKOL型号





型号
螺纹
软管内径
A B W
公制
inch mm mm mm mm
1CA26-8-4
8
 M14x1.5 3/16 5 41 21 17
1CA26-10-5 10 M16x1.5 1/4 6.3 41 20 19
1CA26-12-6 12 M18x1.5 5/16 8 41 21 22
1CA26-15-8 15 M22x1.5
13/32
10 42 21 27
1CA26-18-10 18 M26x1.5 1/2 12.5 46 23 32
1CA26-22-12 22 M30x2 5/8 16 48 25 36
1CA26-28-16 28 M36x2 7/8 22 54 28 41
1CA26-35-20 35 M45x2 1-1/8 29 56 29 50
1CA26-42-24 42 M52x2 1-3/8 35 59 31 60

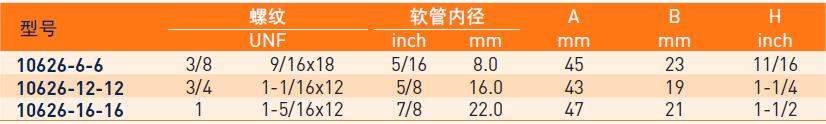

10626 - JIC 37°锥内螺纹 - 直接头 - ISO 12151-5-SWS-DKJ 型号







型号
螺纹
软管内径
A B W
UNF
 inch mm mm mm mm
10626-6-6 3/8 9/16x18 5/16 8 45 23 11/16
10626-12-12 3/4 1-1/16x12 5/8 16 43 19 1-1/4
10626-16-16 1 1-5/16x12 7/8 22 47 21 1-1/2





派克26系列是适合于Parkrimp扣压设备家族，一种腰鼓型的持久扣压式软管接头。该接头系列成本低廉、效率高效，能便利快速地进行软管总成加工。该系列接头也匹配于派克的不剥胶软管，为软管总成的加工提供了很大的便利，减少了加工时间。26系列软管接头匹配于交通应用的空气制动，压缩天然气& 液化石油气,船舶燃气& 发动机和冷冻剂软管. 26系列接头尺寸规格范围从 3/16” 到 1-13/16”，同时能提供多种的终端连接形式。Parker's 26 series fittings are made for easy and quick assembly using our family of Parkrimp crimpers. The fitting series when coupled with Parker's No-Skive hose provides convenience and shorter assembly time. The 26 series fittings are compatible with transportation air brake, compressed natural gas & liquefied petroleum, marine fuel & engine and refrigerant hose. The 26 series fittings are available from sizea -4 to -32 in a wide variety of end configurations.

市场Markets:
- 交通On Road Vehicles
- 军工Military Land Based
- 农机Agriculture
- 物料处理Material Handling
- 船舶Marine

特性/优点Features/Benefits:
- 软管易于插入Easy push on force
- 英制螺母
- 可提供铜材接头Brass option available
- 终端连接形式多样Wide range of end configurations
- 一件式，减少总成加工的复杂性和泄漏点One piece reduces complexity and leakage path
- 不剥胶技术实现总成加工方便快捷和安全No-Skive technology offers easy, efficient, and safe production processes

应用Applications:
- 石油基润滑油和润滑油Petroleum base hydraulic fluids and lubricating oils
- 柴油Diesel fuels
- 防冻应用Antifreeze solutions
- 汽油Gasoline
- 混合乙醇Ethanol blends
- 空气制动系统Air brake systems
- 冷冻剂Refrigerant

适配软管Compatible Hoses:
- 201
- 206
- 213
- 221FR
- 244
- 266
- 285
- 293
- SS23CG





部件号 端口连接 软管内径（尺寸） 形状 形式 材料
10126-12-12 3/4 -12 Straight Male NPTF Pipe - Rigid Steel
10126-16-16 1 -16 Straight Male NPTF Pipe - Rigid Steel
10126-2-4 1/8 -4 Straight Male NPTF Pipe - Rigid Steel
10126-20-20 1-1/4 -20 Straight Male NPTF Pipe - Rigid Steel
10126-24-24 1-1/2 -24 Straight Male NPTF Pipe - Rigid Steel
10126-32-32 2 -32 Straight Male NPTF Pipe - Rigid Steel
10126-4-4 1/4 -4 Straight Male NPTF Pipe - Rigid Steel
10126-4-5 1/4 -5 Straight Male NPTF Pipe - Rigid Steel
10126-4-6 1/4 -6 Straight Male NPTF Pipe - Rigid Steel
10126-4-6B 1/4 -6 Straight Male NPTF Pipe - Rigid Brass
10126-6-6 3/8 -6 Straight Male NPTF Pipe - Rigid Steel
10126-6-6B 3/8 -6 Straight Male NPTF Pipe - Rigid Brass
10126-6-8 3/8 -8 Straight Male NPTF Pipe - Rigid Steel
10126-6-8B 3/8 -8 Straight Male NPTF Pipe - Rigid Brass
10126-8-10 1/2 -10 Straight Male NPTF Pipe - Rigid Steel
10126-8-10B 1/2 -10 Straight Male NPTF Pipe - Rigid Brass
10126-8-8 1/2 -8 Straight Male NPTF Pipe - Rigid Steel
10126-8-8B 1/2 -8 Straight Male NPTF Pipe - Rigid Brass
10326-10-10 5/8 -10 Straight Male JIC 37° - Rigid Steel
10326-4-4 1/4 -4 Straight Male JIC 37° - Rigid Steel
10326-4-4B 1/4 -4 Straight Male JIC 37° - Rigid Brass
10326-6-6 3/8 -6 Straight Male JIC 37° - Rigid Steel
10326-8-8 1/2 -8 Straight Male JIC 37° - Rigid Steel
10426-6-6 3/8 -6 Straight Male SAE 45° - Rigid Steel
10626-12-12 3/4 -12 Straight Female JIC 37° - Swivel Steel
10626-12-12B 3/4 -12 Straight Female JIC 37° - Swivel Brass
10626-16-16 1 -16 Straight Female JIC 37° - Swivel Steel
10626-16-16B 1 -16 Straight Female JIC 37° - Swivel Brass
10626-20-20 1-1/4 -20 Straight Female JIC 37° - Swivel Steel
10626-24-24 1-1/2 -24 Straight Female JIC 37° - Swivel Steel
10626-32-32 2 -32 Straight Female JIC 37° - Swivel Brass
10626-6-6 3/8 -6 Straight Female JIC 37° - Swivel Steel
10626-6-6B 3/8 -6 Straight Female JIC 37° - Swivel Brass
10626-6-8 3/8 -8 Straight Female JIC 37° - Swivel Steel
10626-6-8B 3/8 -8 Straight Female JIC 37° - Swivel Brass
10826-10-10 5/8 -10 Straight Female SAE 45° - Swivel Steel
10826-10-8 5/8 -8 Straight Female SAE 45° - Swivel Steel
10826-12-12 3/4 -12 Straight Female SAE 45° - Swivel Steel
10826-12-12B 3/4 -12 Straight Female SAE 45° - Swivel Brass
10826-6-6 3/8 -6 Straight Female SAE 45° - Swivel Steel
10826-6-6B 3/8 -6 Straight Female SAE 45° - Swivel Brass
12826-10-10 5/8 -10 Straight Male Inverted SAE 45° - Swivel Steel
12826-4-4 1/4 -4 Straight Male Inverted SAE 45° - Swivel Steel
12826-5-5 5/16 -5 Straight Male Inverted SAE 45° - Swivel Steel
12826-6-6 3/8 -6 Straight Male Inverted SAE 45° - Swivel Steel
12826-8-8 1/2 -8 Straight Male Inverted SAE 45° - Swivel Steel
13726-10-10 5/8 -10 45° Elbow - Short Drop Female JIC 37° - Swivel Steel
13726-12-12 3/4 -12 45° Elbow - Short Drop Female JIC 37° - Swivel Steel
13726-16-16 1 -16 45° Elbow - Short Drop Female JIC 37° - Swivel Steel
13726-20-20 1-1/4 -20 45° Elbow - Short Drop Female JIC 37° - Swivel Steel
13726-24-24 1-1/2 -24 45° Elbow - Short Drop Female JIC 37° - Swivel Steel
13726-4-4 1/4 -4 45° Elbow - Short Drop Female JIC 37° - Swivel Steel
13726-6-6 3/8 -6 45° Elbow - Short Drop Female JIC 37° - Swivel Steel
13726-8-8 1/2 -8 45° Elbow - Short Drop Female JIC 37° - Swivel Steel
13926-10-10 5/8 -10 90° Elbow - Short Drop Female JIC 37° - Swivel Steel
13926-10-12 5/8 -12 90° Elbow - Short Drop Female JIC 37° - Swivel Steel
13926-12-12 3/4 -12 90° Elbow - Short Drop Female JIC 37° - Swivel Steel
13926-16-16 1 -16 90° Elbow - Short Drop Female JIC 37° - Swivel Steel
13926-20-20 1-1/4 -20 90° Elbow - Short Drop Female JIC 37° - Swivel Steel
13926-24-24 1-1/2 -24 90° Elbow - Short Drop Female JIC 37° - Swivel Steel
13926-4-4 1/4 -4 90° Elbow - Short Drop Female JIC 37° - Swivel Steel
13926-6-6 3/8 -6 90° Elbow - Short Drop Female JIC 37° - Swivel Steel
13926-8-8 1/2 -8 90° Elbow - Short Drop Female JIC 37° - Swivel Steel
14126-10-10 5/8 -10 90° Elbow - Long Drop Female JIC 37° - Swivel Steel
14126-16-16 1 -16 90° Elbow - Long Drop Female JIC 37° - Swivel Steel
14126-4-4 1/4 -4 90° Elbow - Long Drop Female JIC 37° - Swivel Steel
14126-6-6 3/8 -6 90° Elbow - Long Drop Female JIC 37° - Swivel Steel
14126-8-8 1/2 -8 90° Elbow - Long Drop Female JIC 37° - Swivel Steel
14526-10-12-PT 5/8 -12 Straight - Long Pilot Male Tube-O - Swivel - with Low Pressure Charge Port for R134a Steel
15926-10-12-PT 5/8 -12 Straight - Long Pilot Female Tube-O - Swivel - with Low Pressure Charge Port for R134a Steel
15926-6-6-PB 3/8 -6 Straight - Long Pilot Female Tube-O - Swivel - with High Pressure Charge Port for R134a Steel
15926-8-8-PB 1/2 -8 Straight - Long Pilot Female Tube-O - Swivel - with High Pressure Charge Port for R134a Steel
15G26-10-10 5/8 -10 Straight - Internal Long Pilot (3 Step) Male Tube-O - Rigid Steel
15G26-10-12 5/8 -12 Straight - Internal Long Pilot (3 Step) Male Tube-O - Rigid Steel
15G26-6-6 3/8 -6 Straight - Internal Long Pilot (3 Step) Male Tube-O - Rigid Steel
15G26-8-8 1/2 -8 Straight - Internal Long Pilot (3 Step) Male Tube-O - Rigid Steel
15H26-10-10 5/8 -10 45° Elbow - Short Pilot Female Tube-O - Swivel Steel
15H26-10-12 5/8 -12 45° Elbow - Short Pilot Female Tube-O - Swivel Steel
15H26-6-6 3/8 -6 45° Elbow - Short Pilot Female Tube-O - Swivel Steel
15H26-8-8 1/2 -8 45° Elbow - Short Pilot Female Tube-O - Swivel Steel
15K26-10-10 5/8 -10 90° Elbow - Short Pilot Male Tube-O - Swivel Steel
15K26-10-12 5/8 -12 90° Elbow - Short Pilot Male Tube-O - Swivel Steel
15K26-6-6 3/8 -6 90° Elbow - Short Pilot Male Tube-O - Swivel Steel
15K26-8-8 1/2 -8 90° Elbow - Short Pilot Male Tube-O - Swivel Steel
15K26-8-8-PB 1/2 -8 90° Elbow - Short Pilot Male Tube-O - Swivel - with High Pressure Charge Port for R134a Steel
15L26-10-10-PT 5/8 -10 90° Elbow - Long Pilot Female Tube-O - Swivel - with Low Pressure Charge Port for R134a Steel
15L26-10-12-PT 5/8 -12 90° Elbow - Long Pilot Female Tube-O - Swivel - with Low Pressure Charge Port for R134a Steel
15L26-6-6-PB 3/8 -6 90° Elbow - Long Pilot Female Tube-O - Swivel - with High Pressure Charge Port for R134a Steel
15L26-8-8 1/2 -8 90° Elbow - Long Pilot Female Tube-O - Swivel Steel
15L26-8-8-PB 1/2 -8 90° Elbow - Long Pilot Female Tube-O - Swivel - with High Pressure Charge Port for R134a Steel
15M26-10-12-PT 5/8 -12 90° Elbow - Long Pilot Male Tube-O - Swivel - with Low Pressure Charge Port for R134a Steel
15N26-10-12-PT 5/8 -12 45° Elbow - Long Pilot Female Tube-O - Swivel - with Low Pressure Charge Port for R134a Steel
15N26-8-8-PB 1/2 -8 45° Elbow - Long Pilot Female Tube-O - Swivel - with High Pressure Charge Port for R134a Steel
15P26-10-12-PT 5/8 -12 45° Elbow - Long Pilot Male Tube-O - Swivel - with Low Pressure Charge Port for R134a Steel
15R26-10-10 5/8 -10 45° Elbow - Short Pilot Male Tube-O - Swivel Steel
15R26-10-12 5/8 -12 45° Elbow - Short Pilot Male Tube-O - Swivel Steel
15R26-6-6 3/8 -6 45° Elbow - Short Pilot Male Tube-O - Swivel Steel
15R26-8-8 1/2 -8 45° Elbow - Short Pilot Male Tube-O - Swivel Steel
15S26-10-10 5/8 -10 Straight - Short Pilot Female Tube-O - Swivel Steel
15S26-10-12 5/8 -12 Straight - Short Pilot Female Tube-O - Swivel Steel
15S26-12-12 3/4 -12 Straight - Short Pilot Female Tube-O - Swivel Steel
15S26-6-6 3/8 -6 Straight - Short Pilot Female Tube-O - Swivel Steel
15S26-8-8 1/2 -8 Straight - Short Pilot Female Tube-O - Swivel Steel
15T26-10-10 5/8 -10 90° Elbow - Short Pilot Female Tube-O - Swivel Steel
15T26-10-12 5/8 -12 90° Elbow - Short Pilot Female Tube-O - Swivel Steel
15T26-12-12 3/4 -12 90° Elbow - Short Pilot Female Tube-O - Swivel Steel
15T26-6-6 3/8 -6 90° Elbow - Short Pilot Female Tube-O - Swivel Steel
15T26-8-8 1/2 -8 90° Elbow - Short Pilot Female Tube-O - Swivel Steel
15V26-12-12 3/4 -12 45° Elbow Female Compressor - Swivel Steel
15V26-12-8 3/4 -8 45° Elbow Female Compressor - Swivel Steel
15W26-12-12 3/4 -12 90° Elbow Female Compressor - Swivel Steel
15W26-12-8 3/4 -8 90° Elbow Female Compressor - Swivel Steel
15Z26-12-12 3/4 -12 90° Elbow - Block Type Female Compressor - Swivel Steel
15Z26-12-8 3/4 -8 90° Elbow - Block Type Female Compressor - Swivel Steel
16826-10-10 5/8 -10 Straight Female JIC 37°/SAE 45° Dual Flare - Swivel Steel
16826-10-10B 5/8 -10 Straight Female JIC 37°/SAE 45° Dual Flare - Swivel Brass
16826-10-12 5/8 -12 Straight Female JIC 37°/SAE 45° Dual Flare - Swivel Steel
16826-4-4 1/4 -4 Straight Female JIC 37°/SAE 45° Dual Flare - Swivel Steel
16826-4-4B 1/4 -4 Straight Female JIC 37°/SAE 45° Dual Flare - Swivel Brass
16826-4-5 1/4 -5 Straight Female JIC 37°/SAE 45° Dual Flare - Swivel Steel
16826-4-6 1/4 -6 Straight Female JIC 37°/SAE 45° Dual Flare - Swivel Steel
16826-5-5 5/16 -5 Straight Female JIC 37°/SAE 45° Dual Flare - Swivel Steel
16826-8-10 1/2 -10 Straight Female JIC 37°/SAE 45° Dual Flare - Swivel Steel
16826-8-10B 1/2 -10 Straight Female JIC 37°/SAE 45° Dual Flare - Swivel Brass
16826-8-6 1/2 -6 Straight Female JIC 37°/SAE 45° Dual Flare - Swivel Steel
16826-8-8 1/2 -8 Straight Female JIC 37°/SAE 45° Dual Flare - Swivel Steel
16926-4-4 1/4 -4 90° Elbow Male Inverted SAE 45° - Swivel Steel
16926-6-6 3/8 -6 90° Elbow Male Inverted SAE 45° - Swivel Steel
16926-8-8 1/2 -8 90° Elbow Male Inverted SAE 45° - Swivel Steel
17726-10-10 5/8 -10 45° Elbow Female SAE 45° - Swivel Steel
17726-12-12 3/4 -12 45° Elbow Female SAE 45° - Swivel Steel
17726-4-4 1/4 -4 45° Elbow Female SAE 45° - Swivel Steel
17726-6-6 3/8 -6 45° Elbow Female SAE 45° - Swivel Steel
17726-8-8 1/2 -8 45° Elbow Female SAE 45° - Swivel Steel
17926-10-10 5/8 -10 90° Elbow Female SAE 45° - Swivel Steel
17926-12-12 3/4 -12 90° Elbow Female SAE 45° - Swivel Steel
17926-4-4 1/4 -4 90° Elbow Female SAE 45° - Swivel Steel
17926-6-6 3/8 -6 90° Elbow Female SAE 45° - Swivel Steel
17926-8-8 1/2 -8 90° Elbow Female SAE 45° - Swivel Steel
17B26-8-6BA 1/2 -6 Straight Female Air Brake Jounce Line - Swivel Brass nipple w/ Steel nut and socket
17B26-8-8BA 1/2 -8 Straight Female Air Brake Jounce Line - Swivel Brass nipple w/ Steel nut and socket
1J726-10-10 5/8 -10 45° Elbow Female Seal-Lok - Swivel Steel
1J726-12-12 3/4 -12 45° Elbow Female Seal-Lok - Swivel Steel
1J726-16-16 1 -16 45° Elbow Female Seal-Lok - Swivel Steel
1J726-20-20 1-1/4 -20 45° Elbow Female Seal-Lok - Swivel Steel
1J726-4-4 1/4 -4 45° Elbow Female Seal-Lok - Swivel Steel
1J726-6-6 3/8 -6 45° Elbow Female Seal-Lok - Swivel Steel
1J726-8-8 1/2 -8 45° Elbow Female Seal-Lok - Swivel Steel
1J926-10-10 5/8 -10 90° Elbow - Short Drop Female Seal-Lok - Swivel Steel
1J926-12-12 3/4 -12 90° Elbow - Short Drop Female Seal-Lok - Swivel Steel
1J926-16-16 1 -16 90° Elbow - Short Drop Female Seal-Lok - Swivel Steel
1J926-20-20 1-1/4 -20 90° Elbow - Short Drop Female Seal-Lok - Swivel Steel
1J926-4-4 1/4 -4 90° Elbow - Short Drop Female Seal-Lok - Swivel Steel
1J926-6-6 3/8 -6 90° Elbow - Short Drop Female Seal-Lok - Swivel Steel
1J926-8-8 1/2 -8 90° Elbow - Short Drop Female Seal-Lok - Swivel Steel
1JC26-12-12 3/4 -12 Straight - Short Female Seal-Lok - Swivel Steel
1JC26-16-16 1 -16 Straight - Short Female Seal-Lok - Swivel Steel
1JC26-20-20 1-1/4 -20 Straight - Short Female Seal-Lok - Swivel Steel
1JC26-4-4 1/4 -4 Straight - Short Female Seal-Lok - Swivel Steel
1JC26-6-6 3/8 -6 Straight - Short Female Seal-Lok - Swivel Steel
1JC26-8-8 1/2 -8 Straight - Short Female Seal-Lok - Swivel Steel
1S526-10-10 5/8 -10 Straight - Short Pilot Male Tube-O - Swivel Steel
1S526-10-12 5/8 -12 Straight - Short Pilot Male Tube-O - Swivel Steel
1S526-12-12 3/4 -12 Straight - Short Pilot Male Tube-O - Swivel Steel
1S526-6-6 3/8 -6 Straight - Short Pilot Male Tube-O - Swivel Steel
1S526-8-8 1/2 -8 Straight - Short Pilot Male Tube-O - Swivel Steel
1T126-10-10 5/8 -10 Straight Male Refrigerant Tube Mender (with Nut and Ferrule) Steel
1T126-10-12 5/8 -12 Straight Male Refrigerant Tube Mender (with Nut and Ferrule) Steel
1T126-12-12 3/4 -12 Straight Male Refrigerant Tube Mender (with Nut and Ferrule) Steel
1T126-6-6 3/8 -6 Straight Male Refrigerant Tube Mender (with Nut and Ferrule) Steel
1T126-8-8 1/2 -8 Straight Male Refrigerant Tube Mender (with Nut and Ferrule) Steel



Part Hose I.D. (size) Port Connection Shape Style
10126-12-12 -12 3/4 Straight Male NPTF Pipe - Rigid
10126-4-5 -5 1/4 Straight Male NPTF Pipe - Rigid
10126-4-6 -6 1/4 Straight Male NPTF Pipe - Rigid
10126-6-6 -6 3/8 Straight Male NPTF Pipe - Rigid
10126-6-8 -8 3/8 Straight Male NPTF Pipe - Rigid
10126-8-10 -10 1/2 Straight Male NPTF Pipe - Rigid
10126-8-8 -8 1/2 Straight Male NPTF Pipe - Rigid
10626-12-12 -12 12 Straight Female JIC 37°/SAE 45° Dual Flare - Swivel
10626-16-16 -16 16 Straight Female JIC 37°/SAE 45° Dual Flare - Swivel
10626-20-20 -20 20 Straight Female JIC 37°/SAE 45° Dual Flare - Swivel
10626-24-24 -24 24 Straight Female JIC 37°/SAE 45° Dual Flare - Swivel
10626-32-32 -32 2 Straight Female JIC 37° - Swivel
10626-6-6 -6 3/8 Straight Female JIC 37° - Swivel
10626-6-6BS -6 6 Straight Female JIC 37°/SAE 45° Dual Flare - Swivel
10826-12-12 -12 3/4 Straight Female SAE 45° - Swivel
10826-6-6 -6 3/8 Straight Female SAE 45° - Swivel
10826-6-6BA -6 6 Straight Female SAE 45° - Swivel
13726-12-12 -12 12 45° Elbow Female JIC 37°/SAE 45° Dual Flare - Swivel Female 45° Elbow
13726-16-16 -16 16 45° Elbow Female JIC 37°/SAE 45° Dual Flare - Swivel Female 45° Elbow
13726-4-4 -4 4 45° Elbow Female JIC 37°/SAE 45° Dual Flare - Swivel Female 45° Elbow
13726-6-6 -6 6 45° Elbow Female JIC 37°/SAE 45° Dual Flare - Swivel Female 45° Elbow
13726-8-8 -8 8 45° Elbow Female JIC 37°/SAE 45° Dual Flare - Swivel Female 45° Elbow
13926-10-10 -10 10 90° Elbow Female JIC 37° - Swivel 90° Elbow
13926-10-12 -12 10 90° Elbow Female JIC 37° - Swivel 90° Elbow
13926-12-12 -12 12 90° Elbow Female JIC 37° - Swivel 90° Elbow
13926-16-16 -16 16 90° Elbow Female JIC 37° - Swivel 90° Elbow
13926-20-20 -20 20 90° Elbow Female JIC 37° - Swivel 90° Elbow
13926-4-4 -4 4 90° Elbow Female JIC 37° - Swivel 90° Elbow
13926-6-6 -6 6 90° Elbow Female JIC 37° - Swivel 90° Elbow
13926-8-8 -8 8 90° Elbow Female JIC 37° - Swivel 90° Elbow
13V26-10-10 -10 10 45° Elbow Female JIC 37°/SAE 45° Dual Flare - Swivel Female 45° Elbow
14926-12-6 -6 12 Straight DIN Metric Banjo
14926-14-6 -6 14 Straight DIN Metric Banjo
14926-14-8 -8 14 Straight DIN Metric Banjo
14926-16-8 -8 16 Straight DIN Metric Banjo
15S26-10-10 -10 5/8 Straight - Short Pilot Female Tube-O - Swivel
15S26-10-12 -12 5/8 Straight - Short Pilot Female Tube-O - Swivel
15S26-6-6 -6 3/8 Straight - Short Pilot Female Tube-O - Swivel
15S26-8-8 -8 1/2 Straight - Short Pilot Female Tube-O - Swivel
15T26-10-10 -10 5/8 90° Elbow - Short Pilot Female Tube-O - Swivel
15T26-6-6 -6 3/8 90° Elbow - Short Pilot Female Tube-O - Swivel
15T26-8-8 -8 1/2 90° Elbow - Short Pilot Female Tube-O - Swivel
16286-10-10 -10 10 Straight Female JIC 37°/SAE 45° Dual Flare - Swivel
16826-10-10BA -10 10 Straight Female JIC 37°/SAE 45° Dual Flare - Swivel
16826-10-12 -12 5/8 Straight Female JIC 37°/SAE 45° Dual Flare - Swivel
16826-4-4 -4 4 Straight Female JIC 37°/SAE 45° Dual Flare - Swivel
16826-5-5BA -5 5 Straight Female JIC 37°/SAE 45° Dual Flare - Swivel
16826-8-10 -10 1/2 Straight Female JIC 37°/SAE 45° Dual Flare - Swivel
16826-8-8 -8 8 Straight Female JIC 37°/SAE 45° Dual Flare - Swivel
1CA26-10-5 -5 10 Straight Female Metric 24° Light Series with O-Ring Swivel - Straight
1CA26-10-6 -6 10 Straight Female Metric 24° Light Series with O-Ring Swivel - Straight
1CA26-12-6 -6 12 Straight Female Metric 24° Light Series with O-Ring Swivel - Straight
1CA26-12-8 -8 12 Straight Female Metric 24° Light Series with O-Ring Swivel - Straight
1CA26-15-8 -8 15 Straight Female Metric 24° Light Series with O-Ring Swivel - Straight
1CA26-18-10 -10 18 Straight Female Metric 24° Light Series with O-Ring Swivel - Straight
1CA26-18-12 -12 18 Straight Female Metric 24° Light Series with O-Ring Swivel - Straight
1CA26-22-12 -12 22 Straight Female Metric 24° Light Series with O-Ring Swivel - Straight
1CA26-28-16 -16 28 Straight Female Metric 24° Light Series with O-Ring Swivel - Straight
1CA26-28-20 -20 28 Straight Female Metric 24° Light Series with O-Ring Swivel - Straight
1CA26-35-20 -20 35 Straight Female Metric 24° Light Series with O-Ring Swivel - Straight
1CA26-35-24 -24 35 Straight Female Metric 24° Light Series with O-Ring Swivel - Straight
1CA26-42-24 -24 42 Straight Female Metric 24° Light Series with O-Ring Swivel - Straight
1CA26-8-4 -4 8 Straight Female Metric 24° Light Series with O-Ring Swivel - Straight
1CE26-10-6 -6 10 45° Elbow Female Metric 24° Light Series with O-Ring Swivel - 45° Elbow
1CE26-12-6 -6 12 45° Elbow Female Metric 24° Light Series with O-Ring Swivel - 45° Elbow
1CE26-12-8 -8 12 45° Elbow Female Metric 24° Light Series with O-Ring Swivel - 45° Elbow
1CE26-15-8 -8 15 45° Elbow Female Metric 24° Light Series with O-Ring Swivel - 45° Elbow
1CE26-18-10 -10 18 45° Elbow Female Metric 24° Light Series with O-Ring Swivel - 45° Elbow
1CE26-18-12 -12 18 45° Elbow Female Metric 24° Light Series with O-Ring Swivel - 45° Elbow
1CE26-22-12 -12 22 45° Elbow Female Metric 24° Light Series with O-Ring Swivel - 45° Elbow
1CE26-28-16 -16 28 45° Elbow Female Metric 24° Light Series with O-Ring Swivel - 45° Elbow
1CF26-10-5 -5 10 90° Elbow Female Metric 24° Light Series with O-Ring Swivel - 90° Elbow
1CF26-10-6 -6 10 90° Elbow Female Metric 24° Light Series with O-Ring Swivel - 90° Elbow
1CF26-12-6 -6 12 90° Elbow Female Metric 24° Light Series with O-Ring Swivel - 90° Elbow
1CF26-12-8 -8 12 90° Elbow Female Metric 24° Light Series with O-Ring Swivel - 90° Elbow
1CF26-15-8 -8 15 90° Elbow Female Metric 24° Light Series with O-Ring Swivel - 90° Elbow
1CF26-18-10 -10 18 90° Elbow Female Metric 24° Light Series with O-Ring Swivel - 90° Elbow
1CF26-18-12 -12 18 90° Elbow Female Metric 24° Light Series with O-Ring Swivel - 90° Elbow
1CF26-18-16 -16 18 90° Elbow Female Metric 24° Light Series with O-Ring Swivel - 90° Elbow
1CF26-22-12 -12 22 90° Elbow Female Metric 24° Light Series with O-Ring Swivel - 90° Elbow
1CF26-28-16 -16 28 90° Elbow Female Metric 24° Light Series with O-Ring Swivel - 90° Elbow
1CF26-28-20 -20 28 90° Elbow Female Metric 24° Light Series with O-Ring Swivel - 90° Elbow
1CF26-35-20 -20 35 90° Elbow Female Metric 24° Light Series with O-Ring Swivel - 90° Elbow
1CF26-35-24 -24 35 90° Elbow Female Metric 24° Light Series with O-Ring Swivel - 90° Elbow
1CF26-8-4 -4 8 90° Elbow Female Metric 24° Light Series with O-Ring Swivel - 90° Elbow
1JC26-10-10 -10 10 Straight - Short Pilot Female ORFS Swivel - Straight Short
1JC26-12-12 -12 12 Straight - Short Pilot Female ORFS Swivel - Straight Short
1JC26-16-16 -16 16 Straight - Short Pilot Female ORFS Swivel - Straight Short
1JC26-20-20 -20 20 Straight - Short Pilot Female ORFS Swivel - Straight Short
1JC26-4-4 -4 4 Straight - Short Pilot Female ORFS Swivel - Straight Short
1JC26-6-6 -6 6 Straight - Short Pilot Female ORFS Swivel - Straight Short
1JC26-8-8 -8 8 Straight - Short Pilot Female ORFS Swivel - Straight Short






信德迈科技（北京）有限公司 CNMEC Technology
2012年开始Parker中国签约授权经销商

E-mail：sales@cnmec.biz fcg.cnmec@parkerdistribution.com.cn
地址：北京市朝阳区望京街10号望京SOHO塔1C座2115室
邮编：100102
电话：010-8428 2935, 8428 9077, 8428 3983
手机：139 101 22694 | 139 1096 2635
Http：//www.cnmec.biz
传真：010-8428 8762

Since 2007 Strong Distribution & Powerful Partnerships


京ICP备08000876号-8
京公网安备 11010502019740
