PARKER 5400系列冷媒快速接头 制冷空调快速接头

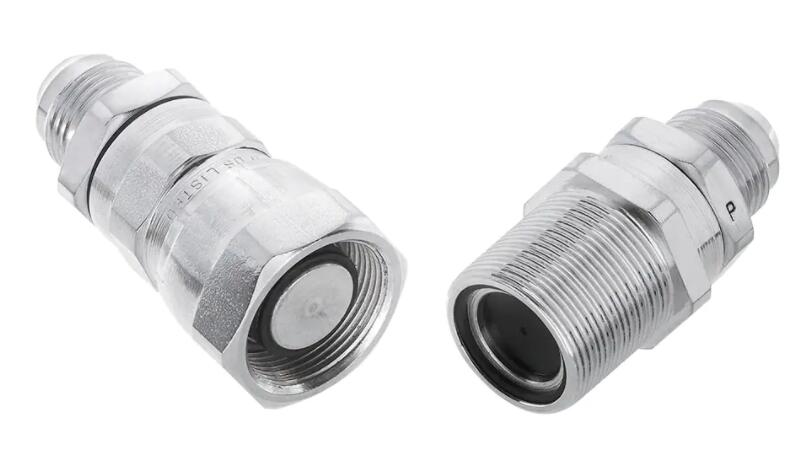

5400 Series Self-Sealing Steel Couplings
Parker快速接头用于工质流动应用，使制冷空调系统更加便于维护。派克持久耐用的制冷联接件应用于液体传送，易于维护制冷和空调系统。 理想的应用还包括制冷系统和空调系统，以及分轴式制冷和分轴式饮料系统。派克汉尼汾为市场提供宽广的快速接头产品。无论是快接、自密封或黄铜、钢制结构，派克均有您所需，应用范围从房间空调到低温泵。
如果齐全的产品线允许Parker开发附加价值组件，以降低库存量及工时。Parker可以集成这些优质服务。
这些快速接头用于工质流动应用，使制冷空调系统更加便于维护。一些型号为自密封的钢制或黄铜制产品，另外有单次黄铜产品用于预充注系统。带铜接口的组件可以解决黄铜阀体产品与铜管的焊接问题。Parker’s 5400 self-sealing steel couplings are used in fluid-transfer applications for easy maintenance on refrigeration and air conditioning systems. The couplings also allow for pre-charging of units for easy installation. Applications can include marine refrigeration and air conditioning systems, along with cryogenic units.
Parker's durable refrigeration couplings
System Couplings
5400 Series Self-Sealing Steel Couplings
市场：
- 空调
- 制冷
- 工业制冷
- 运输
特性及益处：
- 自密封的断开连接设计，阻止空气进入，更小化工质损失
- 黄铜结构防腐蚀
- 金属密封设计阻止制冷剂损失
- 单次快速接头系列产品在接口处设置了一个膜片，在接头连接时被切破并折叠，以减少压力损失。
应用：
- 空调 -家用、商用、分体机
- 热泵 – 分体机
- 制冷 – 船用、分体系统
- 运输
- 低温机组 -用钢制快速接头
技术规格：
- 最高操作温度（F)： 250
- 半联轴器： Female
- 出口连接： 1-7/16"-16UN Threaded
- 最小操作温度（F)： -40
- 产品类型： Self-Sealing Steel
- 最大操作压力（psig)： 700
- 入口连接： 1-1/4"-18 Threaded
- 最大爆破压力： 2100 psi
- 外部泄漏率： 对R22在运行压力范围内，为<0.25盎司/年
- 型号： 快速接头 - 阴接头部分
| 部件 Part No. |
快速接头 |
入口连接 |
出口连接 |
产品类型 |
最高操作温度（F) |
最小操作温度（F) |
最大操作压力（psig) |
| 5400-S5-12 |
Female |
1-1/4"-18 Threaded |
1-7/16"-16UN Threaded |
Self-Sealing Steel |
250 |
-40 |
700 |
| 5400-S5-16 |
Female |
1-19/32"-20 Threaded |
1-3/4"-16UN Threaded |
Self-Sealing Steel |
250 |
-40 |
700 |
| 5400-S5-4 |
Female |
1/2"-20 Threaded |
5/8"-18UNF Threaded |
Self-Sealing Steel |
250 |
-40 |
3000 |
| 5400-S5-8 |
Female |
7/8"-20 Threaded |
1"-20UNEF Threaded |
Self-Sealing Steel |
250 |
-40 |
1750 |
| 5400-S2-12 |
Male |
1-1/4"-18 Threaded |
1-7/16"-16UN Threaded |
Self-Sealing Steel |
250 |
-40 |
700 |
| 5400-S2-16 |
Male |
1-19/32"-20 Threaded |
1-3/4"-16UN Threaded |
Self-Sealing Steel |
250 |
-40 |
700 |
| 5400-S2-4 |
Male |
1/2"-20 Threaded |
5/8"-18UNF Threaded |
Self-Sealing Steel |
250 |
-40 |
3000 |
| 5400-S2-8 |
Male |
7/8"-20 Threaded |
1"-20UNEF Threaded |
Self-Sealing Steel |
250 |
-40 |
1750 |
| 5505-04B-06 |
Female |
1/4" ODF |
3/8" |
Self-Sealing Brass with Plastic Protective Cap |
250 |
-40 |
750 |
| 5505-04B-08 |
Female |
1/4" ODF |
1/2" |
Self-Sealing Brass with Plastic Protective Cap |
250 |
-40 |
750 |
| 5505-06B-06 |
Female |
3/8" ODF |
3/8" |
Self-Sealing Brass with Plastic Protective Cap |
250 |
-40 |
750 |
| 5505-06B-08 |
Female |
3/8" ODF |
1/2" |
Self-Sealing Brass with Plastic Protective Cap |
250 |
-40 |
750 |
| 5505-08B-08 |
Female |
1/2" ODF |
1/2" |
Self-Sealing Brass with Plastic Protective Cap |
250 |
-40 |
750 |
| 5505/10/12 |
Female |
5/8" ODF |
3/4" |
Self-Sealing Brass |
250 |
-40 |
750 |
| 5505-10B-08 |
Female |
5/8" ODF |
1/2" |
Self-Sealing Brass with Plastic Protective Cap |
250 |
-40 |
750 |
| 5505/12/12 |
Female |
3/4" ODF |
3/4" |
Self-Sealing Brass |
250 |
-40 |
750 |
| 5505-14-12 |
Female |
7/8" ODF |
3/4" |
Self-Sealing Brass |
250 |
-40 |
750 |
| 5505-14-16 |
Female |
7/8" ODF |
1" |
Self-Sealing Brass |
250 |
-40 |
750 |
| 5500/4/8 |
N/A |
1/4" ODF |
1/2" |
Self-Sealing Brass |
250 |
-40 |
750 |
| 5500/10/8 |
N/A |
5/8" ODF |
1/2" |
Self-Sealing Brass |
250 |
-40 |
750 |
| 5500/10/12 |
N/A |
5/8" ODF |
3/4" |
Self-Sealing Brass |
250 |
-40 |
750 |
| 5500/12/12 |
N/A |
3/4" ODF |
3/4" |
Self-Sealing Brass |
250 |
-40 |
750 |
| 5500-14-12 |
N/A |
7/8" ODF |
3/4" |
Self-Sealing Brass |
250 |
-40 |
750 |
| 5500-14-16 |
N/A |
7/8" ODF |
1" |
Self-Sealing Brass |
250 |
-40 |
750 |
| 5500-18-16 |
N/A |
1-1/8" ODF |
1" |
Self-Sealing Brass |
250 |
-40 |
750 |
| 5502-04B-06 |
Male |
1/4" ODF |
3/8" |
Self-Sealing Brass with Plastic Protective Cap |
250 |
-40 |
750 |
| 5502-04B-08 |
Male |
1/4" ODF |
1/2" |
Self-Sealing Brass with Plastic Protective Cap |
250 |
-40 |
750 |
| 5502-06B-06 |
Male |
3/8" ODF |
3/8" |
Self-Sealing Brass with Plastic Protective Cap |
250 |
-40 |
750 |
| 5502-06B-08 |
Male |
3/8" ODF |
1/2" |
Self-Sealing Brass with Plastic Protective Cap |
250 |
-40 |
750 |
| 5502-08B-08 |
Male |
1/2" ODF |
1/2" |
Self-Sealing Brass with Plastic Protective Cap |
250 |
-40 |
750 |
| 5502/10/12 |
Male |
5/8" ODF |
3/4" |
Self-Sealing Brass |
250 |
-40 |
750 |
| 5502-10B-08 |
Male |
5/8" ODF |
1/2" |
Self-Sealing Brass |
250 |
-40 |
750 |
| 5502/12/12 |
Male |
3/4" ODF |
3/4" |
Self-Sealing Brass |
250 |
-40 |
750 |
| 5502-14-12 |
Male |
7/8" ODF |
3/4" |
Self-Sealing Brass |
250 |
-40 |
750 |
| 5502-14-16 |
Male |
7/8" ODF |
1" |
Self-Sealing Brass |
250 |
-40 |
750 |
| 5500/6/8 |
Male/Female Assembly |
3/8" ODF |
1/2" |
Self-Sealing Brass |
250 |
-40 |
750 |
| 5500/8/8 |
Male/Female Assembly |
1/2" ODF |
1/2" |
Self-Sealing Brass |
250 |
-40 |
750 |
| 5400-S6-12 |
N/A |
1-7/16"-16UN Threaded |
N/A |
Self-Sealing Steel Dust Cap with Gasket |
N/A |
N/A |
N/A |
| 5400-S6-16 |
N/A |
1-3/4"-16UN Threaded |
N/A |
Self-Sealing Steel Dust Cap with Gasket |
N/A |
N/A |
N/A |
| 5400-S6-4 |
N/A |
5/8"-18UNF Threaded |
N/A |
Self-Sealing Steel Dust Cap with Gasket |
N/A |
N/A |
N/A |
| 5400-S6-8 |
N/A |
1"-20UNEF Threaded |
N/A |
Self-Sealing Steel Dust Cap with Gasket |
N/A |
N/A |
N/A |
| 5400-S8-12 |
N/A |
1-7/16"-16UN Threaded |
N/A |
Self-Sealing Steel Dust Plug with Gasket |
N/A |
N/A |
N/A |
| 5400-S8-16 |
N/A |
1-3/4"-16UN Threaded |
N/A |
Self-Sealing Steel Dust Plug with Gasket |
N/A |
N/A |
N/A |
| 5400-S8-4 |
N/A |
5/8"-18UNF Threaded |
N/A |
Self-Sealing Steel Dust Plug with Gasket |
N/A |
N/A |
N/A |
| 5400-S8-8 |
N/A |
1"-20UNEF Threaded |
N/A |
Self-Sealing Steel Dust Plug with Gasket |
N/A |
N/A |
N/A |
| 150-22-12 |
N/A |
3/4" ODF |
N/A |
5500 Series Steel Mounting Flange |
N/A |
N/A |
N/A |
| 150-22-16 |
N/A |
1" ODF |
N/A |
5500 Series Steel Mounting Flange |
N/A |
N/A |
N/A |
| 150-22-8 |
N/A |
1/2" ODF |
N/A |
5500 Series Steel Mounting Flange |
N/A |
N/A |
N/A |
| RC01YF-013 |
N/A |
N/A |
N/A |
Automotive Process Coupling - High Side R-1243YF |
250 |
-40 |
500 |
| RC01YF-012 |
N/A |
N/A |
N/A |
Automotive Process Coupling - Low Side R-1243YF |
250 |
-40 |
500 |
| RC01C-003 |
N/A |
M14x1.5-6H |
16 mm |
Automotive Process Coupling - High Side R-134a |
250 |
-40 |
500 |
| RC01C-012 |
N/A |
7/16"-20 Male |
16 mm |
Automotive Process Coupling - High Side R-134a |
250 |
-40 |
500 |
| RC01C-011 |
N/A |
7/16"-20 Male |
13 mm |
Automotive Process Coupling - Low Side R-134a |
250 |
-40 |
500 |
| RC01C-002 |
N/A |
M14x1.5-6H |
13 mm |
Automotive Process Coupling - Low Side R-134a |
250 |
-40 |
500 |

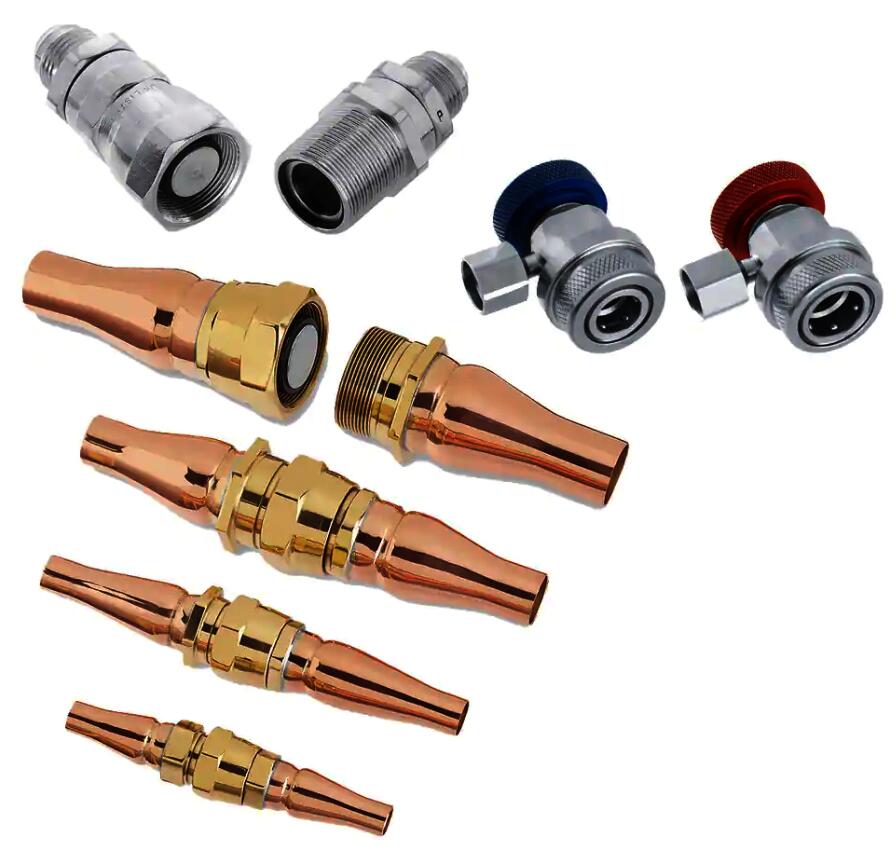

冷媒快速接头
派克持久耐用的制冷联接件应用于液体传送，易于维护制冷和空调系统。 理想的应用还包括制冷系统和空调系统，以及分轴式制冷和分轴式饮料系统。
