Parker 管件在冷却系统的应用-模具冷却应用
Parker Push-Lok 全系列软管接头
Push On Field Attachable Hydraulic Hose Fitting - 82 Series Fittings
Parker派克 82系列Push-Lok软管接头

派克82系列是一件式Push-Lok软管接头，使操作工人能够在生产现场无用工具的情况下，快速便捷并正确地加工软管总成。Configure hose assemblies quickly and easily in the field without special tools with Parker’s 82 series one-piece, push-on field-attachable hydraulic fittings.

Parker No-Skive 82 Series "Push-Lok" Fittings - 派克82系列Push-Lok软管接头

派克82系列是一种一件式Push-Lok软管接头，可使操作工人在生产现场无专用工具的情况下，快速便捷并正确地加工软管总成。该系列软管接头与派克不剥胶软管匹配，为总成加工提供便利，并缩短总成加工时间。82系列软管接头匹配于push-lok多用途管包括高温，干燥空气，热水，防火和较高压力软管。82系列软管接头尺寸规格从?” 到 1”，并有多种连接形式可选。Parker No-Skive 82 Series "Push-Lok" Fittings are push-on, barb-style field-attachable hydraulic fittings that allow users to quickly and easily make hose assemblies right on the job site without special tools. When coupled with Parker’s No-Skive hoses, 82 series fittings deliver convenience and shorter assembly times, as no clamp is required. Reusable 82 Series fittings feature a one-piece construction for reduced complexity and less chance of leakage. Compatible with the Push-Lok family of multipurpose hoses, 82 series fittings can be used with high temperature, dry air, hot water, fire-resistant, and higher pressure hoses. Offered in a wide range of end configurations and in sizes ranging from ?” to 1”, 82 Series fittings are available in brass or steel with zinc dichromate plating. Applications include pneumatics, petroleum-base fluids, antifreeze, diesel, and phosphate ester.

市场Markets:
- 建筑机械Construction
- 公共设施Utility Equipment
- 机械工具Machine Tool
- 地面辅助设备Ground Support Equipment
- 工业Industrial
- 汽车Automotive

特性/优点Features/Benefits:
- 可用扳手在生产现场直接进行总成加工。Can be assembled in field with wrenches
- 英制螺母Imperial HEX
- 多种连接形式Wide range of end configurations
- 一件式减少总成加工的复杂性和泄漏点One piece reduces complexity and leakage path

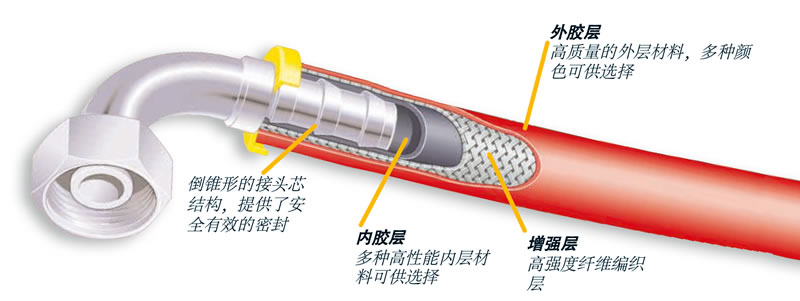

- 不剥胶技术使得总成加工便利，高效和安全No-Skive technology offers easy, efficient, and safe production processes

应用Applications:
- 石油基液压流体和润滑油Petroleum base hydraulic fluids and lubricating oils
- 气动Pneumatic
- 防冻液应用Antifreeze solutions
- 柴油Diesel fuels
- 磷酸酯基流体Phosphate ester
- 干燥空气和水Dry air and water

适配软管Compatible Hoses:
- 801
- 804
- 821
- 821FR
- 836

Parker Push-Lok Hose and Fittings

Parker Push-Lok 801 804 821 836 Hose and Fittings

Parker Push-Lok Push-in Hose System Catalogue 4482/UK

Parker Push-Lok Hoses and Fittings - The self-grip hose system for low-pressure applications

82系列软管接头适用于Push -Lok 全系列软管

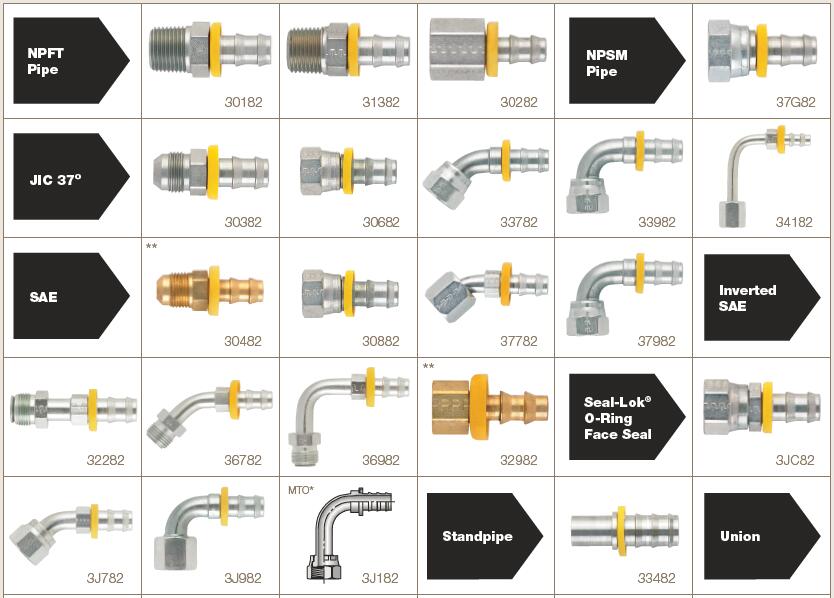

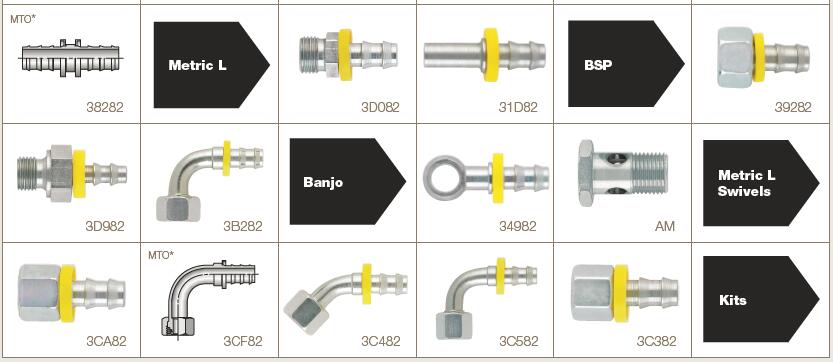

可提供多种外接形式和规格的接头
铜、碳钢不锈材质选项

Push On Field Attachable Hydraulic Hose Fitting - 82 Series Fittings 型号
