Parker派克 Check Valve,Poppet Valve - C Series
Parker派克 单向阀 - C系列
Parker派克 单向阀 - C系列 Check Valve,Poppet Valve - C Series

派克C 系列单向阀用于两相液体和气体的单向流动控制。Parker's C Series check valves are designed for uni-directional flow control of critical fluids and gases.

Parker派克 Check Valve,Poppet Valve - C Series 资料下载

派克的C系列单向阀，是一款结构紧凑的直通型单向阀。C系列单向阀控制流体和气体的单向流动。为使其能正确安装，单向阀阀体上均标有流向指示箭头。C系列单向阀开启压力稳定。多种阀座材料可选，为系统设计者提供了比标准，普通单向阀适用范围更广的产品。Parker's C Series Check Valves are designed as a compact, inline check valve. These check valves provide uni-directional flow control of fluids and gases. To help prevent improper installation, all check valves have a flow arrow label with the valve's crack pressure rating permanently attached. The availability of a wide range of seat materials provide the system designer a variety of uses over a standard, general purpose check valve.

应用市场Markets:
- 石油和天然气Oil and Gas
- 制浆和造纸Pulp and paper
- 制药Pharmaceutical
- 电力Power

特点/优势Features/ Benefits:
- 回弹性强,定制模制品,防泄漏阀座Resilient, custom molded, blow-out resistant seat design
- 单向提动头使弹簧承压更小化Back stopped poppet minimizes spring stress
- 均工厂对每只阀都进行了开启和复位测试100% factory tested for both crack and reseat
- 开启压力Cracking pressures include:1/3, 1, 5, 10, 25, 50, 75, and 100 psi.
- 连接方式：NPT 外/内螺纹，CPI，A-LOK，UltraSeal，VacuSeal，BSP，SAE 和 Seal-LokPort connections include male and female NPT, CPI, A-LOK, UltraSeal, VacuSeal, BSP, SAE and Seal-Lok
- 热代码具有可追溯性Heat code traceability

应用Applications:
- 测试盘Test Panels
- 防回流装置Back Flow Preventers

技术规格：

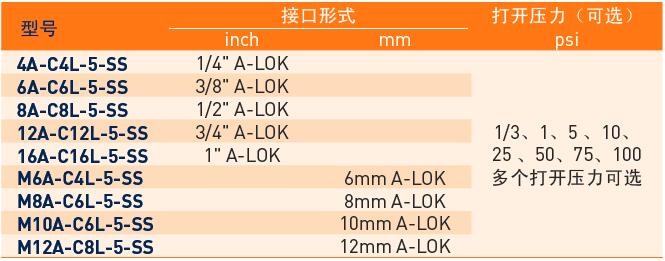

Check Valve,Poppet Valve - C Series 型号：

Parker派克 单向阀 - C系列 Check Valve,Poppet Valve - C Series型号
