Parker 派克 高级诊断测试仪，测量/记录/分析，模拟或CAN传感器，派克测试仪套件包 Service Master Plus/Premier Diagnostic Test Meter, Measure / Record / Analyze, Analog or CAN Sensors, Parker SensoControl Service Master Plus Kits
派克的 SensoControl Service Master Plus 诊断测试套件是测量，记录和分析任何液压或气动系统的关键系统数据的明智之选。可存储10亿个数据点。
Parker 派克 高级诊断测试仪，测量/记录/分析，模拟或CAN传感器，派克测试仪套件包 Service Master Plus 资料下载
派克传感器产品 Service Master Plus是一款结合了数据测量，显示和屏幕分析的高级多功能诊断仪器。借助CAN总线传感器通信和传统模拟输入，派克Service Master Plus具有24个通道，用于各种输入和输出。该系列强大的测试仪器可以存储多达十亿个测量值。并可提供多种测试套件形式可选。

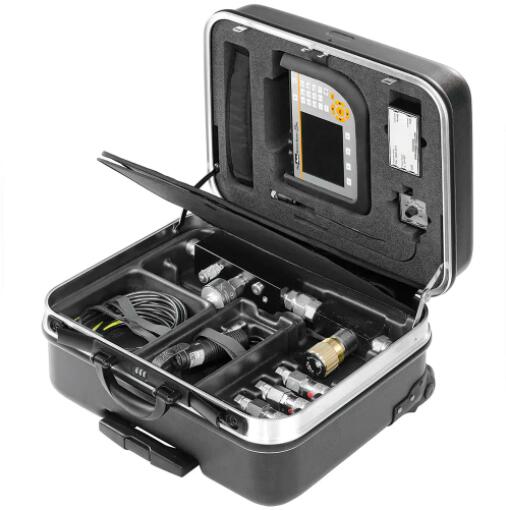

压力测试套件包括：
- 派克Service Master Plus主机
- 存储箱
- 2 个传感器（不同测量范围选择，PD或EMA连接方式，模拟或CAN通讯技术）
- 2 根传感器电缆
- 电池
- SensoWin 软件及文件
- USB 连接电缆
- 快速使用手册
可选套件扩展包包括：其他适配的传感器，流量传感器，温度传感器，转速传感器，电压转换器， 电缆（额外订购）。
派克传感器产品Service Master Plus是测量，记录和分析包括系统压力等多参数测量的工具。多种附件可用于测量流量，流体温度，电流，电压和转速。如需扩展基本压力测试套件包的功能，请购买这些附加的传感附件：压力变送器，流量传感器，温度传感器，转速传感器，电压转换器，电缆（单独订购）。
市场：
- 工业
- 建筑机械
- 模具成型
- 测试
- 维护和维修，MRO
特点与优势：
- 压力套件包可以通过订购派克传感附件进行轻松扩展，以充分利用派克Service Master Plus测试仪的诊断功能
- 在线分析功能可用于现场系统诊断，而无需将数据下载到PC或笔记本电脑。
- 全彩色数据显示，带图表化查看选项
- 1ms扫描速率
- 总存储量高达10亿个数据点
- 多个CAN总线和模拟输入口
- 24通道用于各种输入和输出
- 功能强大的多功能诊断仪器，具有IP64等级保护
- 压力传感器使用颜色编码，与压力范围相对应，便于可视化
- 适用于液压和气动系统
应用：
- 工程机械
- 冷却系统
- 工业液压系统
- 流体或空气系统维护和故障排除
- 系统性能优化
- 系统验证
| 技术选件 |
CAN bus |
| 测量范围1（psi) |
-14.5 to 220 psi (blue) |
| 传感器类型 |
(2) Pressure transducers |
| 测量范围2（psi) |
0 to 2175 psi (yellow) |
| 连接器类型 |
PD |
| 诊断仪表类型 |
派克Service Master Plus |
| 电源电压 |
120 Volt AC |
| 软件 |
SensoWin |
| 壳体类型 |
大型行李箱 |
| 应用 |
液压或气动系统诊断 |
| 包括 |
（2）传感器电缆 - 5m，（1）带终端电阻的CAN Y电缆，（1）USB电缆，（1）LAN电缆 - 5类 |
| 品牌 |
传感控制 |
Parker 派克 高级诊断测试仪，测量/记录/分析，模拟或CAN传感器，派克测试仪套件包 Service Master Plus 型号：
| 型号 |
传感器类型 |
技术选件 |
连接器类型 |
测量范围1（psi) |
测量范围2（psi) |
| PDSMP50-2-01-15-CAN |
(2) Pressure transducers |
CAN bus |
PD |
-14.5 to 220 psi (blue) |
0 to 2175 psi (yellow) |
| PDSMP50-2-06-06-CAN |
(2) Pressure transducers |
CAN bus |
PD |
0 to 870 psi (green) |
0 to 870 psi (green) |
| PDSMP50-2-06-40-CAN |
(2) Pressure transducers |
CAN bus |
PD |
0 to 870 psi (green) |
0 to 5800 psi (orange) |
| PDSMP50-2-15-15 |
(2) Pressure transducers |
Analog |
PD |
0 to 2175 psi (yellow) |
0 to 2175 psi (yellow) |
| PDSMP50-2-40-40 |
(2) Pressure transducers |
Analog |
PD |
0 to 5800 psi (orange) |
0 to 5800 psi (orange) |
| PDSMP50-2-40-40-CAN |
(2) Pressure transducers |
CAN bus |
PD |
0 to 5800 psi (orange) |
0 to 5800 psi (orange) |
| PDSMP50-6-01-01-CAN |
(2) Pressure transducers |
CAN bus |
EMA |
-14.5 to 220 psi (blue) |
-14.5 to 220 psi (blue) |
| PDSMP50-6-01-40 |
(2) Pressure transducers |
Analog |
EMA |
-14.5 to 220 psi (blue) |
0 to 5800 psi (orange) |
| PDSMP50-6-01-40-CAN |
(2) Pressure transducers |
CAN bus |
EMA |
-14.5 to 220 psi (blue) |
0 to 5800 psi (orange) |
| PDSMP50-6-01-60-CAN |
(2) Pressure transducers |
CAN bus |
EMA |
-14.5 to 220 psi (blue) |
0 to 8700 psi (red) |
| PDSMP50-6-06-06 |
(2) Pressure transducers |
Analog |
EMA |
0 to 870 psi (green) |
0 to 870 psi (green) |
| PDSMP50-6-06-40 |
(2) Pressure transducers |
Analog |
EMA |
0 to 870 psi (green) |
0 to 5800 psi (orange) |
| PDSMP50-6-06-60 |
(2) Pressure transducers |
Analog |
EMA |
0 to 870 psi (green) |
0 to 8700 psi (red) |
| PDSMP50-6-06-60-CAN |
(2) Pressure transducers |
CAN bus |
EMA |
0 to 870 psi (green) |
0 to 8700 psi (red) |
| PDSMP50-6-15-15 |
(2) Pressure transducers |
Analog |
EMA |
0 to 2175 psi (yellow) |
0 to 2175 psi (yellow) |
| PDSMP50-6-15-15-CAN |
(2) Pressure transducers |
CAN bus |
EMA |
0 to 2175 psi (yellow) |
0 to 2175 psi (yellow) |
| PDSMP50-6-15-40-CAN |
(2) Pressure transducers |
CAN bus |
EMA |
0 to 2175 psi (yellow) |
0 to 5800 psi (orange) |
| PDSMP50-6-15-60 |
(2) Pressure transducers |
Analog |
EMA |
0 to 2175 psi (yellow) |
0 to 8700 psi (red) |
| PDSMP50-6-40-40 |
(2) Pressure transducers |
Analog |
EMA |
0 to 5800 psi (orange) |
0 to 5800 psi (orange) |
| PDSMP50-6-40-40-CAN |
(2) Pressure transducers |
CAN bus |
EMA |
0 to 5800 psi (orange) |
0 to 5800 psi (orange) |
| PDSMP50-6-60-60 |
(2) Pressure transducers |
Analog |
EMA |
0 to 8700 psi (red) |
0 to 8700 psi (red) |
| PDSMP50-6-60-60-CAN |
(2) Pressure transducers |
CAN bus |
EMA |
0 to 8700 psi (red) |
0 to 8700 psi (red) |
|
