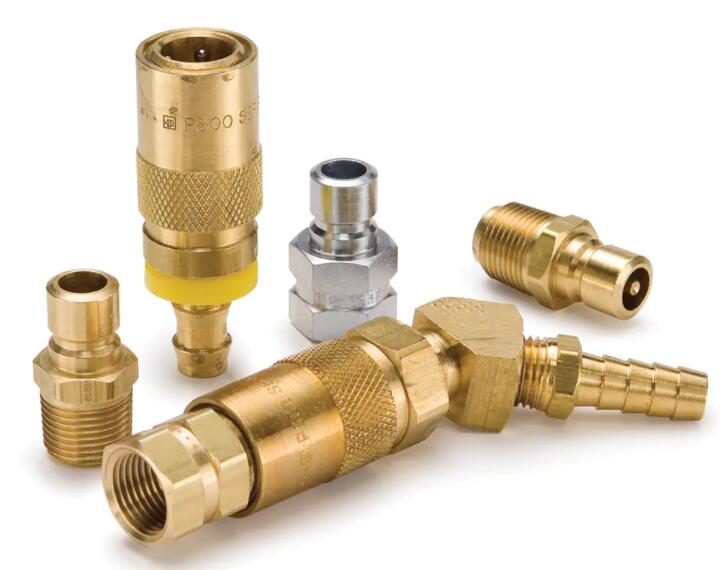

模具冷却快换接头 - Moldmate系列
Mold Coolant Quick Couplings - Moldmate Series



派克的模具冷却快换接头，设计应用于换模期间快速、轻松地连接和断开低压流体管路。Parker's mold coolant quick couplers and nipples are specifically designed to provide a quick and easy way to connect and disconnect low pressure fluid lines during mold changes.

Moldmate系列快换接头（水、油、冷却剂）的压力可达200psi。
派克的Moldmate系列有带阀和无阀两种，设计用于将低压冷却液管路连接到注塑机和压铸机的模具上。带氟橡胶密封锥阀的阴接头，可与带阀或无阀阳接头一起使用。与注塑系统兼容的各种尺寸、材料和管末端可供选择。

技术特点：
- 尺寸：1/4"、3/8"、1/2"
- 材料：黄铜
- 油口端：Push-Lok软管倒钩，标准软管倒钩
- 密封选项：硅胶、氟橡胶
- 其他阴接头选项包括：直通、45度、90度软管倒钩

市场：
- 工业压铸
- 注塑成型

特点/优势：
- 带阀阴接头配有银色套筒，便于目视识别
- 适用于油基介质的可选氟橡胶密封
- 可提供直通、45度和90度的标准和Push-Lok软管倒钩
- 带阀阴接头可与带阀或无阀阳接头一起使用

应用：
- 模具冷却液管路
- 压铸设备





部件 半联轴器 阀形式 流速 阀体材料 阀体尺寸（英寸） 连接类型 连接螺纹尺寸（英寸） 连接软管内径（英寸）
BPN251F Male Nipple Unvalved 3 Brass 1/4 Female NPTF 2001/8/27 na
BPN252F Male Nipple Unvalved 3 Brass 1/4 Female NPTF 2001/4/18 na
BPN253F Male Nipple Unvalved 3 Brass 1/4 Female NPTF 2003/8/18 na
BPN352F Male Nipple Unvalved 6 Brass 3/8 Female NPTF 2001/4/18 na
BPN353F Male Nipple Unvalved 6 Brass 3/8 Female NPTF 2003/8/18 na
BPV252 Male Nipple Poppet 3 Brass 1/4 Male NPTF 2001/4/18 na
BPV353 Male Nipple Poppet 6 Brass 3/8 Male NPTF 2003/8/18 na
PC204 Female Coupler Unvalved 3 Brass 1/4 Hose barb na 1/4
PC204-BP Female Coupler Unvalved 3 Brass 1/4 Push-Lok hose barb na 1/4
PC204AV Female Coupler Poppet 3 Brass 1/4 Hose barb na 1/4
PC204AV-BP Female Coupler Poppet 3 Brass 1/4 Push-Lok hose barb na 1/4
PC205 Female Coupler Unvalved 3 Brass 1/4 Hose barb na 5/16
PC205AV Female Coupler Poppet 3 Brass 1/4 Hose barb na 5/16
PC206 Female Coupler Unvalved 3 Brass 1/4 Hose barb na 3/8
PC206-BP Female Coupler Unvalved 3 Brass 1/4 Push-Lok hose barb na 3/8
PC206AV Female Coupler Poppet 3 Brass 1/4 Hose barb na 3/8
PC206AV-BP Female Coupler Poppet 3 Brass 1/4 Push-Lok hose barb na 3/8
PC214 Female Coupler Unvalved 3 Brass 1/4 Hose barb, 90 degree na 1/4
PC214-BP Female Coupler Unvalved 3 Brass 1/4 Push-Lok hose barb, 90 degree na 1/4
PC214AV Female Coupler Poppet 3 Brass 1/4 Hose barb, 90 degree na 1/4
PC214AV-BP Female Coupler Poppet 3 Brass 1/4 Push-Lok hose barb, 90 degree na 1/4
PC215 Female Coupler Unvalved 3 Brass 1/4 Hose barb, 90 degree na 5/16
PC215AV Female Coupler Poppet 3 Brass 1/4 Hose barb, 90 degree na 5/16
PC216 Female Coupler Unvalved 3 Brass 1/4 Hose barb, 90 degree na 3/8
PC216-BP Female Coupler Unvalved 3 Brass 1/4 Push-Lok hose barb, 90 degree na 3/8
PC216AV Female Coupler Poppet 3 Brass 1/4 Hose barb, 90 degree na 3/8
PC216AV-BP Female Coupler Poppet 3 Brass 1/4 Push-Lok hose barb, 90 degree na 3/8
PC224 Female Coupler Unvalved 3 Brass 1/4 Hose barb, 45 degree na 1/4
PC224-BP Female Coupler Unvalved 3 Brass 1/4 Push-Lok hose barb, 45 degree na 1/4
PC224AV Female Coupler Poppet 3 Brass 1/4 Hose barb, 45 degree na 1/4
PC224AV-BP Female Coupler Poppet 3 Brass 1/4 Push-Lok hose barb, 45 degree na 1/4
PC226 Female Coupler Unvalved 3 Brass 1/4 Hose barb, 45 degree na 3/8
PC226-BP Female Coupler Unvalved 3 Brass 1/4 Push-Lok hose barb, 45 degree na 3/8
PC226AV Female Coupler Poppet 3 Brass 1/4 Hose barb, 45 degree na 3/8
PC226AV-BP Female Coupler Poppet 3 Brass 1/4 Push-Lok hose barb, 45 degree na 3/8
PC306 Female Coupler Unvalved 6 Brass 3/8 Hose barb na 3/8
PC306-BP Female Coupler Unvalved 6 Brass 3/8 Push-Lok hose barb na 3/8
PC306V Female Coupler Poppet 6 Brass 3/8 Hose barb na 3/8
PC306V-BP Female Coupler Poppet 6 Brass 3/8 Push-Lok hose barb na 3/8
PC308 Female Coupler Unvalved 6 Brass 3/8 Hose barb na 1/2
PC308-BP Female Coupler Unvalved 6 Brass 3/8 Push-Lok hose barb na 1/2
PC308V Female Coupler Poppet 6 Brass 3/8 Hose barb na 1/2
PC308V-BP Female Coupler Poppet 6 Brass 3/8 Push-Lok hose barb na 1/2
PC316 Female Coupler Unvalved 6 Brass 3/8 Hose barb, 90 degree na 3/8
PC316-BP Female Coupler Unvalved 6 Brass 3/8 Push-Lok hose barb, 90 degree na 3/8
PC316V Female Coupler Poppet 6 Brass 3/8 Hose barb, 90 degree na 3/8
PC316V-BP Female Coupler Poppet 6 Brass 3/8 Push-Lok hose barb, 90 degree na 3/8
PC318 Female Coupler Unvalved 6 Brass 3/8 Hose barb, 90 degree na 1/2
PC318-BP Female Coupler Unvalved 6 Brass 3/8 Push-Lok hose barb, 90 degree na 1/2
PC318V Female Coupler Poppet 6 Brass 3/8 Hose barb, 90 degree na 1/2
PC318V-BP Female Coupler Poppet 6 Brass 3/8 Push-Lok hose barb, 90 degree na 1/2
PC326 Female Coupler Unvalved 6 Brass 3/8 Hose barb, 45 degree na 3/8
PC326-BP Female Coupler Unvalved 6 Brass 3/8 Push-Lok hose barb, 45 degree na 3/8
PC326V Female Coupler Poppet 6 Brass 3/8 Hose barb, 45 degree na 3/8
PC326V-BP Female Coupler Poppet 6 Brass 3/8 Push-Lok hose barb, 45 degree na 3/8
PC328 Female Coupler Unvalved 6 Brass 3/8 Hose barb, 45 degree na 1/2
PC328-BP Female Coupler Unvalved 6 Brass 3/8 Push-Lok hose barb, 45 degree na 1/2
PC328V Female Coupler Poppet 6 Brass 3/8 Hose barb, 45 degree na 1/2
PC328V-BP Female Coupler Poppet 6 Brass 3/8 Push-Lok hose barb, 45 degree na 1/2
PC504 Female Coupler Unvalved 12 Brass 1/2 Hose barb na 1/2
PC504-BP Female Coupler Unvalved 12 Brass 1/2 Push-Lok hose barb na 1/2
PC506 Female Coupler Unvalved 12 Brass 1/2 Hose barb na 3/4
PC506-BP Female Coupler Unvalved 12 Brass 1/2 Push-Lok hose barb na 3/4
PC514 Female Coupler Unvalved 12 Brass 1/2 Hose barb, 90 degree na 1/2
PC514-BP Female Coupler Unvalved 12 Brass 1/2 Push-Lok hose barb, 90 degree na 1/2
PC516 Female Coupler Unvalved 12 Brass 1/2 Hose barb, 90 degree na 3/4
PC516-BP Female Coupler Unvalved 12 Brass 1/2 Push-Lok hose barb, 90 degree na 3/4
PC524 Female Coupler Unvalved 12 Brass 1/2 Hose barb, 45 degree na 1/2
PC524-BP Female Coupler Unvalved 12 Brass 1/2 Push-Lok hose barb, 45 degree na 1/2
PC526 Female Coupler Unvalved 12 Brass 1/2 Hose barb, 45 degree na 3/4
PC526-BP Female Coupler Unvalved 12 Brass 1/2 Push-Lok hose barb, 45 degree na 3/4
PN250 Male Nipple Unvalved 3 Brass 1/4 Male NPTF 1/16 - 27 na
PN250-25 Male Nipple Unvalved 3 Brass 1/4 Male NPTF (extended length) 1/16 - 27 na
PN250-40 Male Nipple Unvalved 3 Brass 1/4 Male NPTF (extended length) 1/16 - 27 na
PN250-55 Male Nipple Unvalved 3 Brass 1/4 Male NPTF (extended length) 1/16 - 27 na
PN251 Male Nipple Unvalved 3 Brass 1/4 Male NPTF 2001/8/27 na
PN251-25 Male Nipple Unvalved 3 Brass 1/4 Male NPTF (extended length) 2001/8/27 na
PN251-40 Male Nipple Unvalved 3 Brass 1/4 Male NPTF (extended length) 2001/8/27 na
PN251-55 Male Nipple Unvalved 3 Brass 1/4 Male NPTF (extended length) 2001/8/27 na
PN251-70 Male Nipple Unvalved 3 Brass 1/4 Male NPTF (extended length) 2001/8/27 na
PN251-85 Male Nipple Unvalved 3 Brass 1/4 Male NPTF (extended length) 2001/8/27 na
PN251F Male Nipple Unvalved 3 Steel 1/4 Female NPTF 2001/8/27 na
PN251S Male Nipple Unvalved 3 Steel 1/4 Male NPTF 2001/8/27 na
PN252 Male Nipple Unvalved 3 Brass 1/4 Male NPTF 2001/4/18 na
PN252-25 Male Nipple Unvalved 3 Brass 1/4 Male NPTF (extended length) 2001/4/18 na
PN252-40 Male Nipple Unvalved 3 Brass 1/4 Male NPTF (extended length) 2001/4/18 na
PN252-55 Male Nipple Unvalved 3 Brass 1/4 Male NPTF (extended length) 2001/4/18 na
PN252-70 Male Nipple Unvalved 3 Brass 1/4 Male NPTF (extended length) 2001/4/18 na
PN252-85 Male Nipple Unvalved 3 Brass 1/4 Male NPTF (extended length) 2001/4/18 na
PN252F Male Nipple Unvalved 3 Steel 1/4 Female NPTF 2001/4/18 na
PN252S Male Nipple Unvalved 3 Steel 1/4 Male NPTF 2001/4/18 na
PN253 Male Nipple Unvalved 3 Brass 1/4 Male NPTF 2003/8/18 na
PN253F Male Nipple Unvalved 3 Steel 1/4 Female NPTF 2003/8/18 na
PN253S Male Nipple Unvalved 3 Steel 1/4 Male NPTF 2003/8/18 na
PN351-25 Male Nipple Unvalved 6 Brass 3/8 Male NPTF (extended length) 2001/8/27 na
PN351-40 Male Nipple Unvalved 6 Brass 3/8 Male NPTF (extended length) 2001/8/27 na
PN351-55 Male Nipple Unvalved 6 Brass 3/8 Male NPTF (extended length) 2001/8/27 na
PN351-70 Male Nipple Unvalved 6 Brass 3/8 Male NPTF (extended length) 2001/8/27 na
PN351-85 Male Nipple Unvalved 6 Brass 3/8 Male NPTF (extended length) 2001/8/27 na
PN352 Male Nipple Unvalved 6 Brass 3/8 Male NPTF 2001/4/18 na



部件 半联轴器 阀形式 流速 阀体材料 阀体尺寸（英寸） 连接类型 连接螺纹尺寸（英寸） 连接软管内径（英寸）
PN352-25 Male Nipple Unvalved 6 Brass 3月8日 Male NPTF (extended length) 2001/4/18 na
PN352-40 Male Nipple Unvalved 6 Brass 3月8日 Male NPTF (extended length) 2001/4/18 na
PN352-55 Male Nipple Unvalved 6 Brass 3月8日 Male NPTF (extended length) 2001/4/18 na
PN352-70 Male Nipple Unvalved 6 Brass 3月8日 Male NPTF (extended length) 2001/4/18 na
PN352-85 Male Nipple Unvalved 6 Brass 3月8日 Male NPTF (extended length) 2001/4/18 na
PN352F Male Nipple Unvalved 6 Steel 3月8日 Female NPTF 2001/4/18 na
PN352S Male Nipple Unvalved 6 Steel 3月8日 Male NPTF 2001/4/18 na
PN353 Male Nipple Unvalved 6 Brass 3月8日 Male NPTF 2003/8/18 na
PN353-25 Male Nipple Unvalved 6 Brass 3月8日 Male NPTF (extended length) 2003/8/18 na
PN353-40 Male Nipple Unvalved 6 Brass 3月8日 Male NPTF (extended length) 2003/8/18 na
PN353-55 Male Nipple Unvalved 6 Brass 3月8日 Male NPTF (extended length) 2003/8/18 na
PN353-70 Male Nipple Unvalved 6 Brass 3月8日 Male NPTF (extended length) 2003/8/18 na
PN353-85 Male Nipple Unvalved 6 Brass 3月8日 Male NPTF (extended length) 2003/8/18 na
PN353F Male Nipple Unvalved 6 Steel 3月8日 Female NPTF 2003/8/18 na
PN353S Male Nipple Unvalved 6 Steel 3月8日 Male NPTF 2003/8/18 na
PN354 Male Nipple Unvalved 6 Brass 3月8日 Male NPTF 2001/2/14 na
PN553 Male Nipple Unvalved 12 Brass 1月2日 Male NPTF 2003/8/18 na
PN554 Male Nipple Unvalved 12 Brass 1月2日 Male NPTF 2001/2/14 na
PN556 Male Nipple Unvalved 12 Brass 1月2日 Male NPTF 2003/4/14 na
