Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings快速接头
SNAP-TITE DESIGN, MULTI-PURPOSE QUICK COUPLINGS (HYD, FLUIDS) UP TO 11,000 PSI - H SERIES COUPLERS
Snap-tite H 系列快换阴接头 - 多种尺寸，油口以及材料，多功能，承压（液压，流体）可达11,000 psi

派克通用型快换阴接头以及阳接头有多种形式，可用于一系列应用，流体管路可达4英寸，能够用于快速以及简单地进行连接以及断开。 Snap-tite design, general purpose quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options.

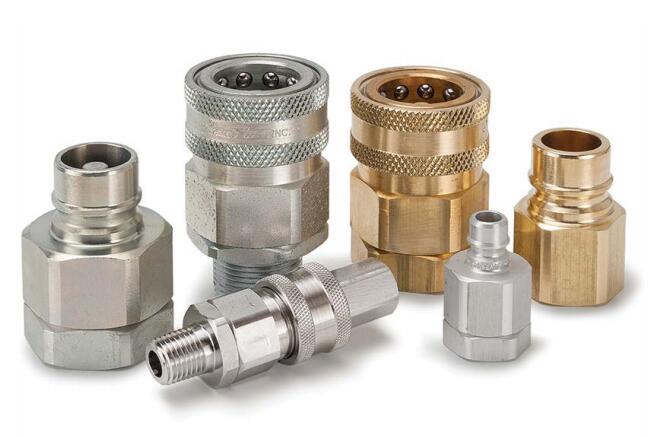

Snap-tite H 系列快换阴接头承压（液压，流体）可达11,000 psi，能与Snap-tite H系列以及 PH 系列阳接头进行配合连接。Snap-tite H 系列原创设计是真正的多功能用途快换接头。本体尺寸可达4英寸，该系列快换定制双截止，单截止以及全流量类型。该系列快换尾端螺纹可定制外螺纹以及内螺纹形式，该系列尺寸范围更广，使得Snap-tite H 系列是需要进行快速连接的多种应用的选择。 Snap-tite H Series Couplers (hydraulic, fluids) up to 11,000 psi connect with Snap-tite H and PH Series Nipples. These original Snap-tite H Series quick disconnects are truely multi-purpose. With sizes up to 4”, this coupling can be valved on both sides, single shut-off, or full flow. Both male and female port ends as well as many material options and the widest range of sizes available, make the Snap-tite H Series an ideal quick connection for a variety of applications.

双截止或者单截止形式-快换阴接头以及阳接头可以定制带阀或者不带阀形式，并以任意形式进行组合连接。 Double or single shut off - Couplers and nipples are compatible to connect with or without valves, in any combination.

全流量形式-使用全流量，不带阀形式时，阴接头以及阳接头均不带阀，额定压力可高达 11,000 psi。 Full flow option - Rated for pressure ranges up to 11,000 psi max when used as a straight through, unvalved connection where both coupler and nipple are plain or without valves.

可选带压连接形式-可选择，压力下连接形式 -PH 系列阴接头，允许与H系列带阀的阳接头进行连接，可用于背压情况下的连接，背压释放器在PH系列阴接头这一侧。我们推荐在进行连接时，只有其中一头而非两端（阴接头或者阳接头）是 PH 系列。 Connect under pressure option - PH Series couplers allow connection with H Series valved nipples when there is residual pressure on the PH Coupler side. It is recommended that only one half of the connection (coupler or nipple) be a PH Series, not both.

SNAP-TITE DESIGN, MULTI-PURPOSE QUICK COUPLINGS (HYD, FLUIDS) UP TO 11,000 PSI - H SERIES COUPLERS

技术特点Technical Characteristics:
- Sizes: 1/4” – 4”
- Materials: Steel, Aluminum, Brass, 316 Stainless Steel
- Port Ends: Male NPT, Female NPTF, Female SAE, Male SAE 37 degree Flare
- Seal Options: Nitrile, Fluorocarbon, Ethylene Propylene
- 尺寸范围：1/4” – 4”
- 材料：碳钢，铝，黄铜，316不锈钢
- 尾端连接: NPT 外螺纹, NPTF内螺纹，SAE内螺纹，SAE37度锥扩口外螺纹
- 密封选择：丁腈橡胶，氟橡胶，三元乙丙橡胶

市场Markets:
- Industrial
- Construction
- Oil and Gas
- Agriculture
- 工业设备
- 建筑机械
- 石油和天然气
- 农机

特点/优势Features/Benefits:
- Original Snap-tite H Series multi-purpose coupling, widely used in varied applications
- Widest range of sizes up to 4"
- Couplers and nipples are compatible to connect with or without valves, in any combination
- PH Series connect under pressure version allows connection of lines with residual pressure caused by thermal expansion
- Male port end options add versatility
- Optional sleeve lock helps to prevent accidental disconnection
- Snap-tite H 系列原创设计是真正的多功能用途快换接头，能用于多种应用之中
- 尺寸范围广，可达4英寸
- 快换阴接头以及阳接头可以定制带阀或者不带阀形式，并以任意形式进行组合连接
- PH 系列带背压释放器，当管路因为热膨胀效应而引起背压时，可使用 PH 系列进行连接
- 外螺纹尾端连接选项,增加了其多样性
- 可选的套筒锁有助于防意外断开情况发生

应用Applications:
- Industrial hydraulic lines
- Food and chemical processing
- Water and coolant lines
- High pressure fluid transfer
- Mobile equipment
- Cleaning equipment
- 工业液压管路
- 食品和化学过程处理
- 水和冷却液管路
- 高压流体输送
- 工程机械设备
- 清洁设备

Technical Specifications

SNAP-TITE DESIGN, MULTI-PURPOSE QUICK COUPLINGS (HYD, FLUIDS) UP TO 11,000 PSI - H SERIES COUPLERS 型号
