Parker Quick Couplings快速接头

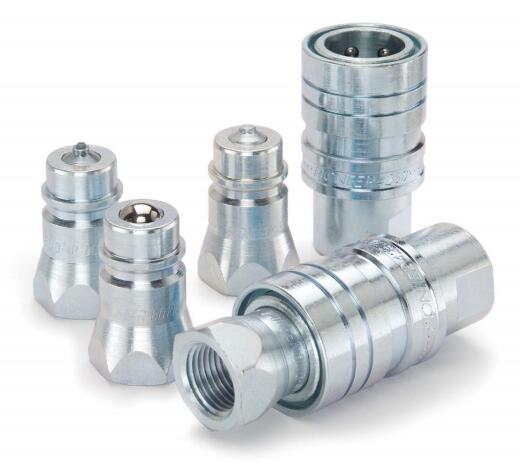

3/8” and 1/2” Sizes, Push to Connect Quick Couplings, Breakaway Sleeve, Pioneer ISO 5675, 3000 psi - 4200 Series Couplers
4200系列快换阴接头 - 3/8” 以及 1/2” ，推动式连接，拉断型套筒，符合Pioneer ISO 5675 标准结构

派克的农机快换阴接头以及阳接头是用于需要经常快速简便地进行连接或者断开管路的选择。 Parker's agricultural quick couplers and nipples are the farmers choice where fluid lines require fast and easy connection and disconnection.

4200 系列快换阴接头承压 (液压) 可达3000 psi，能与1/2" 的 8010 系列阳接头 (符合 ISO5675标准，Pioneer公头) 以及4000 系列阳接头 (3/8") 配合连接。 4200 Series Couplers (hydraulic) 3000 psi, connect with 1/2"" 8010 Series Nipples (ISO 5675, Pioneer male tips) and 4000 Series Nipples (3/8"" size).

派克4200 系列是双截止形式阀芯，1/2"的能与 5001-4 以及 5006-4 拉断型管夹配合使用。该系列快换阴接头的设计是推动式连接，推拉式拉断套筒。当快换接头使用管夹或者隔板形式安装时，它是用于拉断应用的理想选择。该系列阴接头有锥阀或者球阀形式可供选择。 Parker's 4200 Series are double shut-off quick couplings and the 1/2"" size is compatible with 5001-4 and 5006-4 breakaway clamps. Couplers have push to connect operation and a push/pull breakaway sleeve. When the coupler is clamp or bulkhead mounted it is ideal for use in applications where a breakaway feature is desirable. Couplers have a poppet or ball valve option.

3/8” and 1/2” Sizes, Push to Connect Quick Couplings, Breakaway Sleeve, Pioneer ISO 5675, 3000 psi - 4200 Series Couplers

技术参数Technical Characteristics:
- Sizes: 3/8” & 1/2”
- Material: Steel
- Port Ends: Female NPTF, Female ORB
- Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene
- 本体尺寸范围：3/8” & 1/2”
- 材料：碳钢
- 尾端连接形式：NPTF 内螺纹，ORB 内螺纹
- 密封可选：丁腈橡胶, EPR, 氟橡胶，氯丁橡胶

市场Markets:
- Agriculture
- Mobile Equipment
- Construction
- 农机
- 行走机械
- 建筑

特点/优势Features/Benefits:
- One handed push to connect operation
- Push - pull breakaway sleeve allows coupler to disconnect in the case of an implement breakaway
- Poppet or ball valve option
- Critical parts are hardened for durability
- 1/2"" size globally connects with Pioneer universal male tips (nipples) complying to ISO 5675
- 单手推动式连接操作
- 推-拉拉断式套筒能够允许母头断开连接，以符合某些应用的拉断需求
- 锥阀或者球阀形式
- 关键部件经过淬火处理，具有耐用性
- 1/2" 能与 Pioneer 公头形式 (符合 ISO5675 标准) 通用连接

应用Applications:
- Hydraulic Loaders
- Add-on hydraulic circuits
- Implement breakaway
- Hydraulic tools
- Tractors / mobile equipment
- 液压装载机
- 附加液压回路
- 拉断应用
- 液压工具
- 拖拉机/行走机械

Technical Specifications

3/8” and 1/2” Sizes, Push to Connect Quick Couplings, Breakaway Sleeve, Pioneer ISO 5675, 3000 psi - 4200 Series Couplers 型号
