Parker 快速接头和附件
Parker Quick Couplings and Accessories

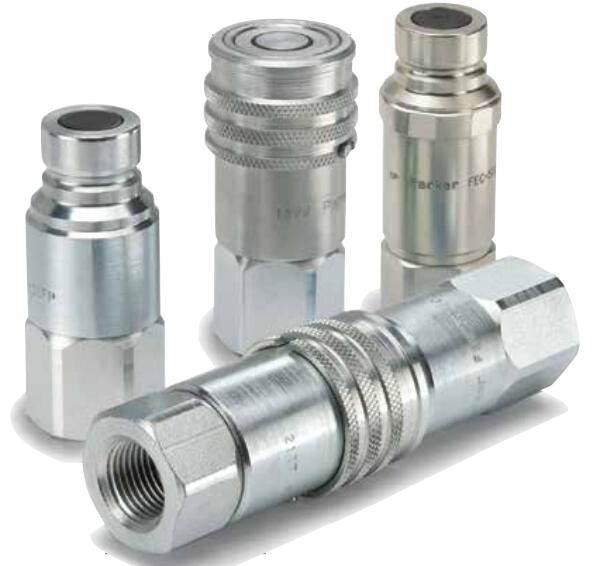

Parker Quick Couplings快速接头
HTMA (ISO 16028) Non-Spill, Flush Face Quick Couplings (hydraulic, up to 4568 psi) - FEM Series Couplers
FEM 系列阴接头 - 符合HTMA (ISO 16028) 标准，平齐端面设计，无溢流型快换接头

派克无溢流型阳接头和阴接头是液压应用的理想选择。在这些应用中，流体管路需要便捷的连接和断开，且要求溢流量和夹气量小。 Parker's non-spill quick couplers and nipples are ideal for use across a variety of hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion.

FEM 系列阴接头耐压（液压）可达4568 psi，符合并超过了液压工具制造商协会 (HTMA - ISO 16028) 的标准，能与 FEM/FEC 系列阳接头进行配合连接。FEC 系列阳接头能够在压力下进行连接。 FEM Series Couplers (hydraulic) up to 4568 psi, meet or exceed design and performance requirements of Hydraulic Tool Manufacturer's Association (HTMA - ISO 16028) standards and connect with FEM/FEC Series Nipples. FEC Nipples provide the ability to connect under pressure.
派克 FEM 系列是双截止形式，无溢流型快换接头，在管路需要连接或者断开时，有效减少溢流量或者夹气量,并且可与其他制造商的符合 HTMA - ISO 16028 标准的快换进行互换。FEM 系列阴接头以及阳接头可选尺寸范围广，并且有各种外螺纹及内螺纹的接头尾端连接形式可选，能够符合各种不同应用的需求，压力可达4568 psi。 Parker's FEM Series are double shut off, non-spill quick couplings designed to minimize spillage and air inclusion when connecting or disconnecting and are interchangeable with other products complying with HTMA - ISO 16028. FEM Couplers and nipples are available in a range of sizes as well as male and female fitting ends to be versatile for use in applications with pressures up to 4568 psi.

HTMA (ISO 16028) Non-Spill, Flush Face Quick Couplings (hydraulic, up to 4568 psi) - FEM Series Couplers

技术参数Technical Characteristics:
- Sizes: 1/4” – 1”
- Material: Steel
- Port Ends: Female NPSF, Female ORB, Male Bulkhead Flare, Male Bulkhead Face Seal
- Seal Options: Nitrile/Polyurethane, EPR, Fluorocarbon
- 本体尺寸范围：1/4” – 1”
- 材料：碳钢
- 尾端连接形式：NPSF 内螺纹，ORB 内螺纹，扩口式隔板外螺纹，端面密封隔板式外螺纹
- 密封可选：丁腈橡胶/聚氨酯，EPR, 氟橡胶

市场Markets:
- Industrial
- Construction
- Utility
- Agriculture
- 工业液压
- 建筑机械
- 公共设施
- 农机设备

特点/优势Features/Benefits:
- Push-to-connect operation makes connection easy with one hand
- All sizes are globally interchangeable with other couplings complying with HTMA (ISO 16028) standards
- Non-spill flush face valves minimize fluid loss when disconnecting, to reduce environmental contamination and avoid safety hazards caused by spillage.
- Flush face valves minimize the amount of air that can enter the system when connecting fluid lines, thus preventing accelerated wear of the system's components.
- Optional sleeve lock guards against accidental disconnection
- 推动式连接，能够使用单手简单地进行连接
- 各尺寸都可与符合 HTMA (ISO 16028) 标准的其他快换接头进行互换
- 当断开连接时，无溢流形式阀芯能够减小流体损失，降低对环境的污染破坏，有效减少因溢流而带来的安全隐患
- 当进行连接时，无溢流的阀芯能够有效减少空气进入到系统，防止系统元件的加速磨损
- 可选择套筒锁功能，防止管路意外断开

应用Applications:
- Skid loader attachments
- Hydraulic tools
- Constuction equipment attachments
- Industrial hydraulic lines
- Agricultural implements
- Coolant fill and drain lines
- 滑移装载机属具
- 液压工具
- 建筑机械属具
- 工业液压管路
- 农机设备
- 冷却水回路以及排水回路

Technical Specifications

HTMA (ISO 16028) Non-Spill, Flush Face Quick Couplings (hydraulic, up to 4568 psi) - FEM Series Couplers 型号
