Parker Quick Couplings快速接头

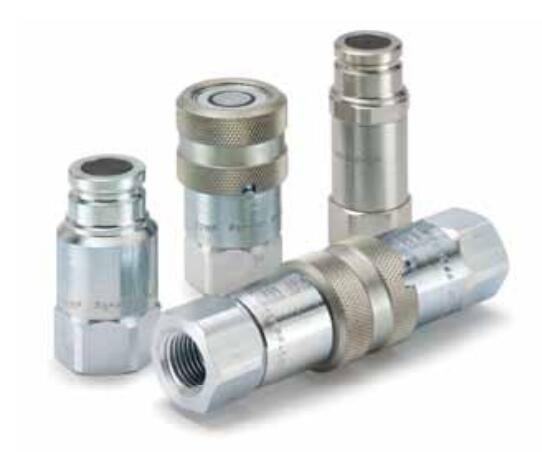

HTMA (ISO 16028, 3/8”) Non-Spill, Flush Face Quick Couplings with Locking Sleeve (hyd, up to 5000 psi) - FF Series Couplers
FF 系列快换阴接头，HTMA (ISO 16028, 3/8”) ，无溢流型，平齐端面快换接头，带套筒锁

派克无溢流型阳接头和阴接头是液压应用的理想选择。在这些应用中，流体管路需要便捷的连接和断开，且要求溢流量和夹气量小。 Parker's non-spill quick couplers and nipples are ideal for use across a variety of hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion.

FF系列快换阴接头承压（液压）可达5000psi，符合液压工具制造商协会(HTMA-ISO16028)的标准尺寸为3/8英寸，可与FF/FC系列阳接头进行配合连接。FC系列阳接头能够在压力下进行连接。 FF Series Couplers (hydraulic) up to 5000 psi, meet the requirements of Hydraulic Tool Manufacturer's Association (HTMA - ISO 16028) standards in the 3/8" size, and connect with FF/FC Series Nipples. FC Nipples provide the ability to connect under pressure.
派克FF 系列是双截止型，平齐端面结构的快换，可以使连接时夹气量更小且断开时溢流量更小。该系列阴接头带套筒锁机械装置，以防意外断开的情况发生。FF 系列阴接头以及阳接头尺寸供货范围全，可以适用于压力达5000 psi 的各种应用当中。 Parker's FF Series are double shut, off non-spill quick couplings designed to minimize spillage and air inclusion when connecting or disconnecting. Couplers have a sleeve locking mechanism to help prevent accidental disconnection. Couplers and nipples are available in a range of sizes to be versatile for use in applications with pressures up to 5000 psi.

HTMA (ISO 16028, 3/8”) Non-Spill, Flush Face Quick Couplings with Locking Sleeve (hyd, up to 5000 psi) - FF Series Couplers

技术参数Technical Characteristics:
- Sizes: 1/4” – 1”
- Material: Steel
- Port Ends: Female NPSF, Female NPTF, Female UNF, Female BSPP
- Seal Options: Nitrile/Polyurethane, EPR, Fluorocarbon
- 尺寸范围：1/4” – 1”
- 材料：碳钢
- 尾端连接：NPSF内螺纹, NPTF内螺纹, UNF内螺纹，BSPP内螺纹,
- 密封选项：丁腈橡胶/聚氨酯,EPR,氟碳橡胶

市场Markets:
- Industrial
- Construction
- Utility
- Agriculture
- 工业
- 建筑
- 设施
- 农业

特点/优势Features/Benefits:
- Push-to-connect operation makes connection easy with one hand
- 3/8" size is globally interchangeable with other couplings complying with HTMA (ISO 16028) standards
- Non-spill flush face valves minimize fluid loss when disconnecting, to reduce environmental contamination and avoid safety hazards caused by spillage.
- Flush face valves minimize the amount of air that can enter the system when connecting fluid lines, thus preventing accelerated wear of the system's components.
- Sleeve lock guards against accidental disconnection
- 推动式连接，能够使用单手进行方便快速地连接
- 3/8" 尺寸系列是全球通用互换型，可与符合HTMA (ISO 16028) 标准的其他制造商的产品进行互换。
- 当断开连接时，非溢流的平齐端面的阀芯设计能够降低流体损失，减少对环境的污染并且有效减少可能因溢流而导致的安全隐患。
- 当进行连接时，平齐端面的阀芯能够保证更少的气体被带进管路系统，从而防其他系统元件的磨损加速。
- 套筒锁能够防管路意外断开

应用Applications:
- Hydraulic tools
- Constuction equipment attachments
- Industrial hydraulic lines
- Agricultural implements
- Coolant fill and drain lines
- 液压工具
- 建筑机械的属具
- 工业液压管路
- 农用工具
- 冷却回路和排水管路

Technical Specifications

HTMA (ISO 16028, 3/8”) Non-Spill, Flush Face Quick Couplings with Locking Sleeve (hyd, up to 5000 psi) - FF Series Couplers 型号
