Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings快速接头

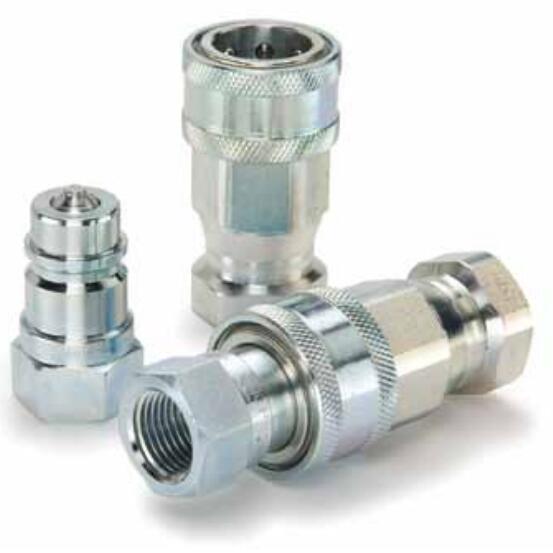

ISO 7241 series A Interchange, Steel Quick Couplings (hydraulic) up to 5000 psi - 6600 Series Nipples
6600 系列快换阳接头 - 可与符合ISO 7241-A标准的进行互换，碳钢材料快换，承压（液压）可达5000 psi

派克液压快换阳接头以及阴接头,为那些需要经常快速简便地进行管路连接或者断开应用提供了理想的方案。 Parker's hydraulic quick couplers and nipples are ideal for use in applications where fluid lines require fast and easy connection and disconnection.

6600 系列阳接头承压（液压）可达5000 psi，能与符合ISO 7241-A 标准的6600阴接头进行配合连接。 6600 Series Nipples (hydraulic) up to 5000 psi, connect with ISO 7241 series A,

派克6600系列使用双截止形式的锥阀阀芯，并且可与其他符合ISO 7241-A 标准的快换进行互换。该系列快换阴接头和阳接头使用碳钢材料，有一系列尺寸可供选择，承压可达5000 psi。 6600 Series Couplers. Parker's 6600 Series have double shut-off poppet valves and are interchangeable with other quick disconnects complying with ISO 7241 series A. These steel couplers and nipples are available in a range of sizes for applications with pressure ranges up to 5000 psi.

ISO 7241 series A Interchange, Steel Quick Couplings (hydraulic) up to 5000 psi - 6600 Series Nipples

技术特点Technical Characteristics:
- Sizes: 1/4” – 1”
- Material: Steel
- Port Ends: Female NPTF, Female ORB
- Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene
- 尺寸范围: 1/4” – 1”
- 本体材料：碳钢
- 尾端连接形式：NPTF 内螺纹，ORB 内螺纹
- 密封可选：丁腈橡胶, EPR, 氟橡胶，氯丁橡胶

市场Markets:
- Construction
- Mobile equipment
- Agriculture
- 建筑机械
- 工程机械
- 农机设备

特点/优势Features/Benefits:
- Globally interchangeable with other manufacturer's quick couplings complying to ISO 7241 series A
- Steel nipple body is hardened for durability
- 可与其他制造商符合ISO7241-A标准的快换进行互换
- 碳钢快换阳接头本体经过硬化处理，从而增加了其耐久性能
- 可选套筒安全锁形式，防止意外断开情况

应用Applications:
- Hydraulic fluid transfer
- Truck trailer connections
- Mobile applications
- Attachments
- 液压流体输送
- 卡车拖车连接
- 工程机械应用
- 属具

Technical Specifications

ISO 7241 series A Interchange, Steel Quick Couplings (hydraulic) up to 5000 psi - 6600 Series Nipples 型号
