Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings快速接头

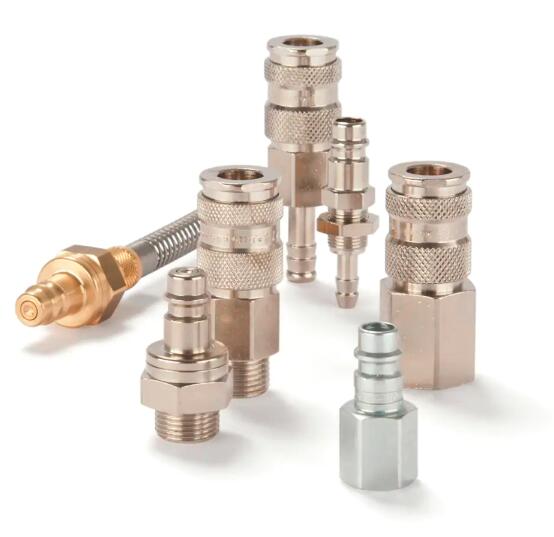

Premium Quick Coupling with European profile, Series 25
25 系列优质快换接头，符合欧洲标准结构

派克优质的快换接头系统，公称通径为7.8mm，用于气动及流体输送应用，承压可达35bar，快换接头符合欧洲标准结构，目前可供材料为黄铜/碳钢或者不锈钢。 Premium quick coupling system with nominal diameter 7,8 for pneumatic and fluid handling applications up to 35 bar. Coupling system with standard European profile. Available made of brass/steel or stainless steel.





该系列是一款通用型工业快换，符合欧洲标准结构。 Parker's universal industrial coupling with standard European profile.

该系列快换接头系统使用单手操作，超大流量阀芯优化了流量，并且减少了压降损失。该系列的坚固设计和长使用寿命，即使恶劣的环境也适用。 Coupling system with single-hand operation. UltraFlo valve for optimum flow and low pressure drop. The series stands out for its robust design and long service life even with the harshest use.



Premium Quick Coupling with European profile, Series 25





市场Markets:
- Machinery Construction
- Automotive
- Life Science
- Process
- Food & Beverage
- Rescue Equipment
- Areospace
- Mobile Hydraulics
- Industrial
- Machine Tooling
- Material Handling
- 机械工程
- 汽车
- 生命科学
- 过程
- 食品和饮料
- 救援设备
- 航空
- 移动液压
- 工业液压
- 机械工具
- 物料搬运



特点/优势Features/Benefits:
- Industrial coupling with European standard profile
- Lower connection forces
- UltraFlo valve for optimum flow and low pressure drop
- Single-hand operation for easy and fast connection
- 符合欧洲标准结构
- 连接力较低
- 超大流量阀芯优化了流量，并且减少了压降损失
- 单手操作，方便快捷的连接



应用Applications:
- Paint Applications
- Fluid Transfere
- Labotory Gas Supply
- Food and chemical processing
- Water and coolant lines
- 喷涂设备
- 流体输送
- 实验室气体供应
- 食品和化学加工
- 水和冷却液管路





Technical Specifications

Minimum Operating Temperature: -15 to -20 °C
Application: Pneumatic & Fluid Handling
Brand: Rectus
Fitting Connection Type: various
Flow Rate: 188 to 476 Gal/min, 710, 1800 L/min
Interchange Type: Europe
Materials of Construction: Brass / Steel, Stainless Steel
Maximum Operating Pressure: 500 psi, 35 bar
Media: Chemical Fluids, Gases, Pneumatic Media, Steam, Water
Valve Type: High Flow Air, Poppet
Diameter: Nominal: 7.4 to 7.8 mm
Seal Material: NBR, FKM
Valve Included: Yes or No acc. to the version
Length: 30 up to 155 mm
Hex Size: 13 up to 24 mm
Outside Diameter: 12 to 23 mm
Maximum Operating Temperature: 212 to 392 °C





Premium Quick Coupling with European profile, Series 25 型号

Part Version Connection Type Connection Thread Size (inch) Connection Thread Size (mm) Hose I.D. Material Type
25FAAK13SPN Single Shut-Off Flex Joint, Male Thread 1/4 na na Steel nickel plated Plug
25KAAD14MPN Single Shut-Off Male Thread - metric na 14x1,5 na Brass nickel plated Coupling
25KAAD16MPN Single Shut-Off Male Thread - metric na 16x1,5 na Brass nickel plated Coupling
25KAAD18MPN Single Shut-Off Male Thread - metric na 18x1,5 na Brass nickel plated Coupling
25KAAK13MPN Single Shut-Off Male Thread - tapered 1/4 na na Brass nickel plated Coupling
25KAAK17MPN Single Shut-Off Male Thread - tapered 3/8 na na Brass nickel plated Coupling
25KAAK21MPN Single Shut-Off Male Thread - tapered 1/2 na na Brass nickel plated Coupling
25KAAM18RVX Single Shut-Off Male Thread - metric na 18x1,5 na AISI 303 Coupling
25KAAW13EVX Single Shut-Off Male Thread - parallel 1/4 na na AISI 316 L Coupling
25KAAW13RVX Single Shut-Off Male Thread - parallel 1/4 na na AISI 303 Coupling
25KAAW17EVX Single Shut-Off Male Thread - parallel 3/8 na na AISI 316 L Coupling
25KAAW17RVX Single Shut-Off Male Thread - parallel 3/8 na na AISI 303 Coupling
25KAAW21EVX Single Shut-Off Male Thread - parallel 1/2 na na AISI 316 L Coupling
25KAAW21RVX Single Shut-Off Male Thread - parallel 1/2 na na AISI 303 Coupling
25KAIM14MPN Single Shut-Off Female Thread - metric na 14x1,5 na Brass nickel plated Coupling
25KAIM16MPN Single Shut-Off Female Thread - metric na 16x1,5 na Brass nickel plated Coupling
25KAIM18MPN Single Shut-Off Female Thread - metric na 18x1,5 na Brass nickel plated Coupling
25KAIW13EVX Single Shut-Off Female Thread - parallel 1/4 na na AISI 316 L Coupling
25KAIW13MPN Single Shut-Off Female Thread - parallel 1/4 na na Brass nickel plated Coupling
25KAIW13RVX Single Shut-Off Female Thread - parallel 1/4 na na AISI 303 Coupling
25KAIW17EVX Single Shut-Off Female Thread - parallel 3/8 na na AISI 316 L Coupling
25KAIW17MPN Single Shut-Off Female Thread - parallel 3/8 na na Brass nickel plated Coupling
25KAIW17RVX Single Shut-Off Female Thread - parallel 3/8 na na AISI 303 Coupling
25KAIW21EVX Single Shut-Off Female Thread - parallel 1/2 na na AISI 316 L Coupling
25KAIW21MPN Single Shut-Off Female Thread - parallel 1/2 na na Brass nickel plated Coupling
25KAIW21RVX Single Shut-Off Female Thread - parallel 1/2 na na AISI 303 Coupling
25KAKK08MPN Single Shut-Off Plastic Hose Connection with Spring Guard na na 6x8 Brass nickel plated Coupling
25KAKK10MPN Single Shut-Off Plastic Hose Connection with Spring Guard na na 8x10 Brass nickel plated Coupling
25KAKK12MPN Single Shut-Off Plastic Hose Connection with Spring Guard na na 9x12 Brass nickel plated Coupling
25KAKO08EVX Single Shut-Off with Plastic Hose Connection na na 6x8 AISI 316 L Coupling
25KAKO08MPN Single Shut-Off with Plastic Hose Connection na na 6x8 Brass nickel plated Coupling
25KAKO08RVX Single Shut-Off with Plastic Hose Connection na na 6x8 AISI 303 Coupling
25KAKO10MPN Single Shut-Off with Plastic Hose Connection na na 8x10 Brass nickel plated Coupling
25KAKO10RVX Single Shut-Off with Plastic Hose Connection na na 8x10 AISI 303 Coupling
25KAKO12EVX Single Shut-Off with Plastic Hose Connection na na 9x12 AISI 316 L Coupling
25KAKO12MPN Single Shut-Off with Plastic Hose Connection na na 9x12 Brass nickel plated Coupling
25KAKO12RVX Single Shut-Off with Plastic Hose Connection na na 9x12 AISI 303 Coupling
25KATF06EVX Single Shut-Off Hose Barb na na 6 AISI 316 L Coupling
25KATF06MPN Single Shut-Off Hose Barb na na 6 Brass nickel plated Coupling
25KATF06RVX Single Shut-Off Hose Barb na na 6 AISI 303 Coupling
25KATF08EVX Single Shut-Off Hose Barb na na 8 AISI 316 L Coupling
25KATF08MPN Single Shut-Off Hose Barb na na 8 Brass nickel plated Coupling
25KATF08RVX Single Shut-Off Hose Barb na na 8 AISI 303 Coupling
25KATF09EVX Single Shut-Off Hose Barb na na 9 AISI 316 L Coupling
25KATF09MPN Single Shut-Off Hose Barb na na 9 Brass nickel plated Coupling
25KATF09RVX Single Shut-Off Hose Barb na na 9 AISI 303 Coupling
25KATF10EVX Single Shut-Off Hose Barb na na 10 AISI 316 L Coupling
25KATF10MPN Single Shut-Off Hose Barb na na 10 Brass nickel plated Coupling
25KATF10RVX Single Shut-Off Hose Barb na na 10 AISI 303 Coupling
25KATF13EVX Single Shut-Off Hose Barb na na 13 AISI 316 L Coupling
25KATF13MPN Single Shut-Off Hose Barb na na 13 Brass nickel plated Coupling
25KATF13RVX Single Shut-Off Hose Barb na na 13 AISI 303 Coupling
25KATP06MPN Single Shut-Off Parker Hose Barb na na 6 Brass nickel plated Coupling
25KATP10MPN Single Shut-Off Parker Hose Barb na na 10 Brass nickel plated Coupling
25KATP13MPN Single Shut-Off Parker Hose Barb na na 13 Brass nickel plated Coupling
25KATS06MPN Single Shut-Off Panel Mount with Hose Barb na na 6 Brass nickel plated Coupling
25KATS06RVX Single Shut-Off Panel Mount with Hose Barb na na 6 AISI 303 Coupling
25KATS08MPN Single Shut-Off Panel Mount with Hose Barb na na 8 Brass nickel plated Coupling
25KATS08RVX Single Shut-Off Panel Mount with Hose Barb na na 8 AISI 303 Coupling
25KATS10MPN Single Shut-Off Panel Mount with Hose Barb na na 10 Brass nickel plated Coupling
25KATS10RVX Single Shut-Off Panel Mount with Hose Barb na na 10 AISI 303 Coupling
25KBAD14BPN Double Shut-Off Male Thread - metric na 14x1,5 na Brass nickel plated Coupling
25KBAD14BPX Double Shut-Off Male Thread - metric na 14x1,5 na Brass Coupling
25KBAD16BPN Double Shut-Off Male Thread - metric na 16x1,5 na Brass nickel plated Coupling
25KBAD16BPX Double Shut-Off Male Thread - metric na 16x1,5 na Brass Coupling
25KBAD18BPN Double Shut-Off Male Thread - metric na 18x1,5 na Brass nickel plated Coupling
25KBAD18BPX Double Shut-Off Male Thread - metric na 18x1,5 na Brass Coupling
25KBAK13BPN Double Shut-Off Male Thread - tapered 1/4 na na Brass nickel plated Coupling
25KBAK13BPX Double Shut-Off Male Thread - tapered 1/4 na na Brass Coupling
25KBAK17BPN Double Shut-Off Male Thread - tapered 3/8 na na Brass nickel plated Coupling
25KBAK17BPX Double Shut-Off Male Thread - tapered 3/8 na na Brass Coupling
25KBAK21BPN Double Shut-Off Male Thread - tapered 1/2 na na Brass nickel plated Coupling
25KBAK21BPX Double Shut-Off Male Thread - tapered 1/2 na na Brass Coupling
25KBAM16EVX Double Shut-Off Male Thread - metric na 16x1,5 na AISI 316 L Coupling
25KBAM16RVX Double Shut-Off Male Thread - metric na 16x1,5 na AISI 303 Coupling
25KBAW13EVX Double Shut-Off Male Thread - parallel 1/4 na na AISI 316 L Coupling
25KBAW13RVX Double Shut-Off Male Thread - parallel 1/4 na na AISI 303 Coupling
25KBAW17EVX Double Shut-Off Male Thread - parallel 3/8 na na AISI 316 L Coupling
25KBAW17RVX Double Shut-Off Male Thread - parallel 3/8 na na AISI 303 Coupling
25KBAW21EVX Double Shut-Off Male Thread - parallel 1/2 na na AISI 316 L Coupling
25KBAW21RVX Double Shut-Off Male Thread - parallel 1/2 na na AISI 303 Coupling
25KBIM14RVX Double Shut-Off Female Thread - metric na 14x1,5 na AISI 303 Coupling
25KBIM16BPN Double Shut-Off Female Thread - metric na 16x1,5 na Brass nickel plated Coupling
25KBIM16BPX Double Shut-Off Female Thread - metric na 16x1,5 na Brass Coupling
25KBIM16RVX Double Shut-Off Female Thread - metric na 16x1,5 na AISI 303 Coupling
25KBIM18BPN Double Shut-Off Female Thread - metric na 18x1,5 na Brass nickel plated Coupling
25KBIM18BPX Double Shut-Off Female Thread - metric na 18x1,5 na Brass Coupling
25KBIM18RVX Double Shut-Off Female Thread - metric na 18x1,5 na AISI 303 Coupling
25KBIW13BPN Double Shut-Off Female Thread - parallel 1/4 na na Brass nickel plated Coupling
25KBIW13BPX Double Shut-Off Female Thread - parallel 1/4 na na Brass Coupling
25KBIW13EVX Double Shut-Off Female Thread - parallel 1/4 na na AISI 316 L Coupling
25KBIW13RVX Double Shut-Off Female Thread - parallel 1/4 na na AISI 303 Coupling
25KBIW17BPN Double Shut-Off Female Thread - parallel 3/8 na na Brass nickel plated Coupling
25KBIW17BPX Double Shut-Off Female Thread - parallel 3/8 na na Brass Coupling
25KBIW17EVX Double Shut-Off Female Thread - parallel 3/8 na na AISI 316 L Coupling
25KBIW17RVX Double Shut-Off Female Thread - parallel 3/8 na na AISI 303 Coupling
25KBIW21BPN Double Shut-Off Female Thread - parallel 1/2 na na Brass nickel plated Coupling
25KBIW21BPX Double Shut-Off Female Thread - parallel 1/2 na na Brass Coupling
25KBIW21EVX Double Shut-Off Female Thread - parallel 1/2 na na AISI 316 L Coupling
25KBIW21RVX Double Shut-Off Female Thread - parallel 1/2 na na AISI 303 Coupling
25KBKK08BPN Double Shut-Off Plastic Hose Connection with Spring Guard na na 6x8 Brass nickel plated Coupling
25KBKK08BPX Double Shut-Off Plastic Hose Connection with Spring Guard na na 6x8 Brass Coupling
25KBKK12BPN Double Shut-Off Plastic Hose Connection with Spring Guard na na 9x12 Brass nickel plated Coupling
25KBKK12BPX Double Shut-Off Plastic Hose Connection with Spring Guard na na 9x12 Brass Coupling
25KBKO08EVX Double Shut-Off with Plastic Hose Connection na na 6x8 AISI 316 L Coupling
25KBKO08RVX Double Shut-Off with Plastic Hose Connection na na 6x8 AISI 303 Coupling
25KBKO10BPN Double Shut-Off with Plastic Hose Connection na na 8x10 Brass nickel plated Coupling
25KBKO10BPX Double Shut-Off with Plastic Hose Connection na na 8x10 Brass Coupling
25KBKO10RVX Double Shut-Off with Plastic Hose Connection na na 8x10 AISI 303 Coupling
25KBKO12BPN Double Shut-Off with Plastic Hose Connection na na 9x12 Brass nickel plated Coupling
25KBKO12BPX Double Shut-Off with Plastic Hose Connection na na 9x12 Brass Coupling
25KBKO12EVX Double Shut-Off with Plastic Hose Connection na na 9x12 AISI 316 L Coupling
25KBKO12RVX Double Shut-Off with Plastic Hose Connection na na 9x12 AISI 303 Coupling
25KBTF06BPN Double Shut-Off Hose Barb na na 6 Brass nickel plated Coupling
25KBTF06BPX Double Shut-Off Hose Barb na na 6 Brass Coupling
25KBTF06EVX Double Shut-Off Hose Barb na na 6 AISI 316 L Coupling
25KBTF06RVX Double Shut-Off Hose Barb na na 6 AISI 303 Coupling
25KBTF08BPN Double Shut-Off Hose Barb na na 8 Brass nickel plated Coupling
25KBTF08BPX Double Shut-Off Hose Barb na na 8 Brass Coupling
25KBTF08EVX Double Shut-Off Hose Barb na na 8 AISI 316 L Coupling
25KBTF08RVX Double Shut-Off Hose Barb na na 8 AISI 303 Coupling
25KBTF09BPN Double Shut-Off Hose Barb na na 9 Brass nickel plated Coupling
25KBTF09BPX Double Shut-Off Hose Barb na na 9 Brass Coupling
25KBTF09EVX Double Shut-Off Hose Barb na na 9 AISI 316 L Coupling
25KBTF09RVX Double Shut-Off Hose Barb na na 9 AISI 303 Coupling
25KBTF10BPN Double Shut-Off Hose Barb na na 10 Brass nickel plated Coupling
25KBTF10BPX Double Shut-Off Hose Barb na na 10 Brass Coupling
25KBTF10EVX Double Shut-Off Hose Barb na na 10 AISI 316 L Coupling
25KBTF10RVX Double Shut-Off Hose Barb na na 10 AISI 303 Coupling
25KBTF13BPN Double Shut-Off Hose Barb na na 13 Brass nickel plated Coupling
25KBTF13BPX Double Shut-Off Hose Barb na na 13 Brass Coupling
25KBTF13EVX Double Shut-Off Hose Barb na na 13 AISI 316 L Coupling
25KBTF13RVX Double Shut-Off Hose Barb na na 13 AISI 303 Coupling
25KBTP10BPN Double Shut-Off Parker Hose Barb na na 10 Brass nickel plated Coupling
25KBTP10BPX Double Shut-Off Parker Hose Barb na na 10 Brass Coupling
25KBTP13BPN Double Shut-Off Parker Hose Barb na na 13 Brass nickel plated Coupling
25KBTP13BPX Double Shut-Off Parker Hose Barb na na 13 Brass Coupling
25KBTS06BPN Double Shut-Off Panel Mount with Hose Barb na na 6 Brass nickel plated Coupling
25KBTS06BPX Double Shut-Off Panel Mount with Hose Barb na na 6 Brass Coupling
25KBTS08BPN Double Shut-Off Panel Mount with Hose Barb na na 8 Brass nickel plated Coupling
25KBTS08BPX Double Shut-Off Panel Mount with Hose Barb na na 8 Brass Coupling
25KBTS10BPN Double Shut-Off Panel Mount with Hose Barb na na 10 Brass nickel plated Coupling
25KBTS10BPX Double Shut-Off Panel Mount with Hose Barb na na 10 Brass Coupling
25KBTS10RVX Double Shut-Off Panel Mount with Hose Barb na na 10 AISI 303 Coupling
25KLAK13BPN Flat-Sealing Male Thread - tapered 1/4 na na Brass nickel plated Coupling
25KLAK17BPN Flat-Sealing Male Thread - tapered 3/8 na na Brass nickel plated Coupling
25KLAK21BPN Flat-Sealing Male Thread - tapered 1/2 na na Brass nickel plated Coupling
25KLAW13EVX Flat-Sealing Male Thread - parallel 1/4 na na AISI 316 L Coupling
25KLAW13RVX Flat-Sealing Male Thread - parallel 1/4 na na AISI 303 Coupling
25KLAW17EVX Flat-Sealing Male Thread - parallel 3/8 na na AISI 316 L Coupling
25KLAW17RVX Flat-Sealing Male Thread - parallel 3/8 na na AISI 303 Coupling
25KLAW21EVX Flat-Sealing Male Thread - parallel 1/2 na na AISI 316 L Coupling
25KLAW21RVX Flat-Sealing Male Thread - parallel 1/2 na na AISI 303 Coupling
25KLIM14BPN Flat-Sealing Female Thread - metric na 14x1,5 na Brass nickel plated Coupling
25KLIM16BPN Flat-Sealing Female Thread - metric na 16x1,5 na Brass nickel plated Coupling
25KLIM18BPN Flat-Sealing Female Thread - metric na 18x1,5 na Brass nickel plated Coupling
25KLIW13BPN Flat-Sealing Female Thread - parallel 1/4 na na Brass nickel plated Coupling
25KLIW13EVX Flat-Sealing Female Thread - parallel 1/4 na na AISI 316 L Coupling
25KLIW13RVX Flat-Sealing Female Thread - parallel 1/4 na na AISI 303 Coupling
25KLIW17BPN Flat-Sealing Female Thread - parallel 3/8 na na Brass nickel plated Coupling
25KLIW17EVX Flat-Sealing Female Thread - parallel 3/8 na na AISI 316 L Coupling
25KLIW17RVX Flat-Sealing Female Thread - parallel 3/8 na na AISI 303 Coupling
25KLIW21BPN Flat-Sealing Female Thread - parallel 1/2 na na Brass nickel plated Coupling
25KLIW21EVX Flat-Sealing Female Thread - parallel 1/2 na na AISI 316 L Coupling
25KLIW21RVX Flat-Sealing Female Thread - parallel 1/2 na na AISI 303 Coupling
25KLKK08BPN Flat-Sealing Plastic Hose Connection with Spring Guard na na 6x8 Brass nickel plated Coupling
25KLKK10BPN Flat-Sealing Plastic Hose Connection with Spring Guard na na 8x10 Brass nickel plated Coupling
25KLKK12BPN Flat-Sealing Plastic Hose Connection with Spring Guard na na 9x12 Brass nickel plated Coupling
25KLKO08BPN Flat-Sealing with Plastic Hose Connection na na 6x8 Brass nickel plated Coupling
25KLKO10BPN Flat-Sealing with Plastic Hose Connection na na 8x10 Brass nickel plated Coupling
25KLKO12BPN Flat-Sealing with Plastic Hose Connection na na 9x12 Brass nickel plated Coupling
25KLTF06BPN Flat-Sealing Hose Barb na na 6 Brass nickel plated Coupling
25KLTF08BPN Flat-Sealing Hose Barb na na 8 Brass nickel plated Coupling
25KLTF09BPN Flat-Sealing Hose Barb na na 9 Brass nickel plated Coupling
25KLTF09EVX Flat-Sealing Hose Barb na na 9 AISI 316 L Coupling
25KLTF09RVX Flat-Sealing Hose Barb na na 9 AISI 303 Coupling
25KLTF10BPN Flat-Sealing Hose Barb na na 10 Brass nickel plated Coupling
25KLTF13BPN Flat-Sealing Hose Barb na na 13 Brass nickel plated Coupling
25KLTF13EVX Flat-Sealing Hose Barb na na 13 AISI 316 L Coupling
25KLTF13RVX Flat-Sealing Hose Barb na na 13 AISI 303 Coupling
25SBAD14MPN Double Shut-Off Male Thread - metric na 14x1,5 na Brass nickel plated Plug
25SBAD14MPX Double Shut-Off Male Thread - metric na 14x1,5 na Brass Plug
25SBAD16MPN Double Shut-Off Male Thread - metric na 16x1,5 na Brass nickel plated Plug
25SBAD16MPX Double Shut-Off Male Thread - metric na 16x1,5 na Brass Plug
25SBAD18MPN Double Shut-Off Male Thread - metric na 18x1,5 na Brass nickel plated Plug
25SBAD18MPX Double Shut-Off Male Thread - metric na 18x1,5 na Brass Plug
25SBAM16EVX Double Shut-Off Male Thread - metric na 16x1,5 na AISI 316 L Plug
25SBAM16RVX Double Shut-Off Male Thread - metric na 16x1,5 na AISI 303 Plug
25SBAM18RVX Double Shut-Off Male Thread - metric na 18x1,5 na AISI 303 Plug
25SBAW10EVX Double Shut-Off Male Thread - parallel 1/8 na na AISI 316 L Plug
25SBAW10MPN Double Shut-Off Male Thread - parallel 1/8 na na Brass nickel plated Plug
25SBAW10MPX Double Shut-Off Male Thread - parallel 1/8 na na Brass Plug
25SBAW10RVX Double Shut-Off Male Thread - parallel 1/8 na na AISI 303 Plug
25SBAW13EVX Double Shut-Off Male Thread - parallel 1/4 na na AISI 316 L Plug
25SBAW13MPN Double Shut-Off Male Thread - parallel 1/4 na na Brass nickel plated Plug
25SBAW13MPX Double Shut-Off Male Thread - parallel 1/4 na na Brass Plug
25SBAW13RVX Double Shut-Off Male Thread - parallel 1/4 na na AISI 303 Plug
25SBAW17EVX Double Shut-Off Male Thread - parallel 3/8 na na AISI 316 L Plug
25SBAW17MPN Double Shut-Off Male Thread - parallel 3/8 na na Brass nickel plated Plug
25SBAW17MPX Double Shut-Off Male Thread - parallel 3/8 na na Brass Plug
25SBAW17RVX Double Shut-Off Male Thread - parallel 3/8 na na AISI 303 Plug
25SBAW21EVX Double Shut-Off Male Thread - parallel 1/2 na na AISI 316 L Plug
25SBAW21MPN Double Shut-Off Male Thread - parallel 1/2 na na Brass nickel plated Plug
25SBAW21MPX Double Shut-Off Male Thread - parallel 1/2 na na Brass Plug
25SBAW21RVX Double Shut-Off Male Thread - parallel 1/2 na na AISI 303 Plug
25SBIM14MPN Double Shut-Off Female Thread - metric na 14x1,5 na Brass nickel plated Plug
25SBIM14MPX Double Shut-Off Female Thread - metric na 14x1,5 na Brass Plug
25SBIM16MPN Double Shut-Off Female Thread - metric na 16x1,5 na Brass nickel plated Plug
25SBIM16MPX Double Shut-Off Female Thread - metric na 16x1,5 na Brass Plug
25SBIM18MPN Double Shut-Off Female Thread - metric na 18x1,5 na Brass nickel plated Plug
25SBIM18MPX Double Shut-Off Female Thread - metric na 18x1,5 na Brass Plug
25SBIM18RVX Double Shut-Off Female Thread - metric na 18x1,5 na AISI 303 Plug
25SBIW13EVX Double Shut-Off Female Thread - parallel 1/4 na na AISI 316 L Plug
25SBIW13MPN Double Shut-Off Female Thread - parallel 1/4 na na Brass nickel plated Plug
25SBIW13MPX Double Shut-Off Female Thread - parallel 1/4 na na Brass Plug
25SBIW13RVX Double Shut-Off Female Thread - parallel 1/4 na na AISI 303 Plug
25SBIW17EVX Double Shut-Off Female Thread - parallel 3/8 na na AISI 316 L Plug
25SBIW17MPN Double Shut-Off Female Thread - parallel 3/8 na na Brass nickel plated Plug
25SBIW17MPX Double Shut-Off Female Thread - parallel 3/8 na na Brass Plug
25SBIW17RVX Double Shut-Off Female Thread - parallel 3/8 na na AISI 303 Plug
25SBIW21EVX Double Shut-Off Female Thread - parallel 1/2 na na AISI 316 L Plug
25SBIW21MPN Double Shut-Off Female Thread - parallel 1/2 na na Brass nickel plated Plug
25SBIW21MPX Double Shut-Off Female Thread - parallel 1/2 na na Brass Plug
25SBIW21RVX Double Shut-Off Female Thread - parallel 1/2 na na AISI 303 Plug
25SBKK06MPN Double Shut-Off Plastic Hose Connection with Spring Guard na na 4x6 Brass nickel plated Plug
25SBKK06MPX Double Shut-Off Plastic Hose Connection with Spring Guard na na 4x6 Brass Plug
25SBKK08MPN Double Shut-Off Plastic Hose Connection with Spring Guard na na 6x8 Brass nickel plated Plug
25SBKK08MPX Double Shut-Off Plastic Hose Connection with Spring Guard na na 6x8 Brass Plug
25SBKK10MPN Double Shut-Off Plastic Hose Connection with Spring Guard na na 8x10 Brass nickel plated Plug
25SBKK10MPX Double Shut-Off Plastic Hose Connection with Spring Guard na na 8x10 Brass Plug
25SBKK12MPN Double Shut-Off Plastic Hose Connection with Spring Guard na na 9x12 Brass nickel plated Plug
25SBKK12MPX Double Shut-Off Plastic Hose Connection with Spring Guard na na 9x12 Brass Plug
25SBKO06MPN Double Shut-Off with Plastic Hose Connection na na 4x6 Brass nickel plated Plug
25SBKO06MPX Double Shut-Off with Plastic Hose Connection na na 4x6 Brass Plug
25SBKO06RVX Double Shut-Off with Plastic Hose Connection na na 4x6 AISI 303 Plug
25SBKO08EVX Double Shut-Off with Plastic Hose Connection na na 6x8 AISI 316 L Plug
25SBKO08MPN Double Shut-Off with Plastic Hose Connection na na 6x8 Brass nickel plated Plug
25SBKO08MPX Double Shut-Off with Plastic Hose Connection na na 6x8 Brass Plug
25SBKO08RVX Double Shut-Off with Plastic Hose Connection na na 6x8 AISI 303 Plug
25SBKO10MPN Double Shut-Off with Plastic Hose Connection na na 8x10 Brass nickel plated Plug
25SBKO10MPX Double Shut-Off with Plastic Hose Connection na na 8x10 Brass Plug
25SBKO10RVX Double Shut-Off with Plastic Hose Connection na na 8x10 AISI 303 Plug
25SBKO12EVX Double Shut-Off with Plastic Hose Connection na na 9x12 AISI 316 L Plug
25SBKO12MPN Double Shut-Off with Plastic Hose Connection na na 9x12 Brass nickel plated Plug
25SBKO12MPX Double Shut-Off with Plastic Hose Connection na na 9x12 Brass Plug
25SBKO12RVX Double Shut-Off with Plastic Hose Connection na na 9x12 AISI 303 Plug
25SBTF06EVX Double Shut-Off Hose Barb na na 6 AISI 316 L Plug
25SBTF06MPN Double Shut-Off Hose Barb na na 6 Brass nickel plated Plug
25SBTF06MPX Double Shut-Off Hose Barb na na 6 Brass Plug
25SBTF06RVX Double Shut-Off Hose Barb na na 6 AISI 303 Plug
25SBTF08EVX Double Shut-Off Hose Barb na na 8 AISI 316 L Plug
25SBTF08MPN Double Shut-Off Hose Barb na na 8 Brass nickel plated Plug
25SBTF08MPX Double Shut-Off Hose Barb na na 8 Brass Plug
25SBTF08RVX Double Shut-Off Hose Barb na na 8 AISI 303 Plug
25SBTF09EVX Double Shut-Off Hose Barb na na 9 AISI 316 L Plug
25SBTF09MPN Double Shut-Off Hose Barb na na 9 Brass nickel plated Plug
25SBTF09MPX Double Shut-Off Hose Barb na na 9 Brass Plug
25SBTF09RVX Double Shut-Off Hose Barb na na 9 AISI 303 Plug
25SBTF10EVX Double Shut-Off Hose Barb na na 10 AISI 316 L Plug
25SBTF10MPN Double Shut-Off Hose Barb na na 10 Brass nickel plated Plug
25SBTF10MPX Double Shut-Off Hose Barb na na 10 Brass Plug
25SBTF10RVX Double Shut-Off Hose Barb na na 10 AISI 303 Plug
25SBTF13EVX Double Shut-Off Hose Barb na na 13 AISI 316 L Plug
25SBTF13MPN Double Shut-Off Hose Barb na na 13 Brass nickel plated Plug
25SBTF13MPX Double Shut-Off Hose Barb na na 13 Brass Plug
25SBTF13RVX Double Shut-Off Hose Barb na na 13 AISI 303 Plug
25SBTP06MPN Double Shut-Off Parker Hose Barb na na 6 Brass nickel plated Plug
25SBTP06MPX Double Shut-Off Parker Hose Barb na na 6 Brass Plug
25SBTP10MPN Double Shut-Off Parker Hose Barb na na 10 Brass nickel plated Plug
25SBTP10MPX Double Shut-Off Parker Hose Barb na na 10 Brass Plug
25SBTP13MPN Double Shut-Off Parker Hose Barb na na 13 Brass nickel plated Plug
25SBTP13MPX Double Shut-Off Parker Hose Barb na na 13 Brass Plug
25SBTS06MPN Double Shut-Off Panel Mount with Hose Barb na na 6 Brass nickel plated Plug
25SBTS06MPX Double Shut-Off Panel Mount with Hose Barb na na 6 Brass Plug
25SBTS06RVX Double Shut-Off Panel Mount with Hose Barb na na 6 AISI 303 Plug
25SBTS08MPN Double Shut-Off Panel Mount with Hose Barb na na 8 Brass nickel plated Plug
25SBTS08MPX Double Shut-Off Panel Mount with Hose Barb na na 8 Brass Plug
25SBTS08RVX Double Shut-Off Panel Mount with Hose Barb na na 8 AISI 303 Plug
25SBTS10MPN Double Shut-Off Panel Mount with Hose Barb na na 10 Brass nickel plated Plug
25SBTS10MPX Double Shut-Off Panel Mount with Hose Barb na na 10 Brass Plug
25SBTS10RVX Double Shut-Off Panel Mount with Hose Barb na na 10 AISI 303 Plug
25SFAD14SXZ Single Shut-Off Male Thread - metric na 14x1,5 na Steel zinc plated Plug
25SFAD16SXZ Single Shut-Off Male Thread - metric na 16x1,5 na Steel zinc plated Plug
25SFAD18SXZ Single Shut-Off Male Thread - metric na 18x1,5 na Steel zinc plated Plug
25SFAK10SXZ Single Shut-Off Male Thread - tapered 1/8 na na Steel zinc plated Plug
25SFAK13SXZ Single Shut-Off Male Thread - tapered 1/4 na na Steel zinc plated Plug
25SFAK17SXZ Single Shut-Off Male Thread - tapered 3/8 na na Steel zinc plated Plug
25SFAK21SXZ Single Shut-Off Male Thread - tapered 1/2 na na Steel zinc plated Plug
25SFAW17EXX Single Shut-Off Male Thread - parallel 3/8 na na AISI 316 L Plug
25SFAW17RXX Single Shut-Off Male Thread - parallel 3/8 na na AISI 303 Plug
25SFAW21EXX Single Shut-Off Male Thread - parallel 1/2 na na AISI 316 L Plug
25SFAW21RXX Single Shut-Off Male Thread - parallel 1/2 na na AISI 303 Plug
25SFIM14SXZ Single Shut-Off Female Thread - metric na 14x1,5 na Steel zinc plated Plug
25SFIM16RXX Single Shut-Off Female Thread - metric na 16x1,5 na AISI 303 Plug
25SFIM16SXZ Single Shut-Off Female Thread - metric na 16x1,5 na Steel zinc plated Plug
25SFIM18SXZ Single Shut-Off Female Thread - metric na 18x1,5 na Steel zinc plated Plug
25SFIW10EXX Single Shut-Off Female Thread - parallel 1/8 na na AISI 316 L Plug
25SFIW10RXX Single Shut-Off Female Thread - parallel 1/8 na na AISI 303 Plug
25SFIW10SXZ Single Shut-Off Female Thread - parallel 1/8 na na Steel zinc plated Plug
25SFIW13EXX Single Shut-Off Female Thread - parallel 1/4 na na AISI 316 L Plug
25SFIW13RXX Single Shut-Off Female Thread - parallel 1/4 na na AISI 303 Plug
25SFIW13SXZ Single Shut-Off Female Thread - parallel 1/4 na na Steel zinc plated Plug
25SFIW17EXX Single Shut-Off Female Thread - parallel 3/8 na na AISI 316 L Plug
25SFIW17RXX Single Shut-Off Female Thread - parallel 3/8 na na AISI 303 Plug
25SFIW17SXZ Single Shut-Off Female Thread - parallel 3/8 na na Steel zinc plated Plug
25SFIW21EXX Single Shut-Off Female Thread - parallel 1/2 na na AISI 316 L Plug
25SFIW21RXX Single Shut-Off Female Thread - parallel 1/2 na na AISI 303 Plug
25SFIW21SXZ Single Shut-Off Female Thread - parallel 1/2 na na Steel zinc plated Plug
25SFKO06EXX Single Shut-Off with Plastic Hose Connection na na 4x6 AISI 316 L Plug
25SFKO06RXX Single Shut-Off with Plastic Hose Connection na na 4x6 AISI 303 Plug
25SFKO08EXX Single Shut-Off with Plastic Hose Connection na na 6x8 AISI 316 L Plug
25SFKO08RXX Single Shut-Off with Plastic Hose Connection na na 6x8 AISI 303 Plug
25SFKO10RXX Single Shut-Off with Plastic Hose Connection na na 8x10 AISI 303 Plug
25SFTF06EXX Single Shut-Off Hose Barb na na 6 AISI 316 L Plug
25SFTF06RXX Single Shut-Off Hose Barb na na 6 AISI 303 Plug
25SFTF06SXZ Single Shut-Off Hose Barb na na 6 Steel zinc plated Plug
25SFTF08EXX Single Shut-Off Hose Barb na na 8 AISI 316 L Plug
25SFTF08RXX Single Shut-Off Hose Barb na na 8 AISI 303 Plug
25SFTF08SXZ Single Shut-Off Hose Barb na na 8 Steel zinc plated Plug
25SFTF09EXX Single Shut-Off Hose Barb na na 9 AISI 316 L Plug
25SFTF09RXX Single Shut-Off Hose Barb na na 9 AISI 303 Plug
25SFTF09SXZ Single Shut-Off Hose Barb na na 9 Steel zinc plated Plug
25SFTF10EXX Single Shut-Off Hose Barb na na 10 AISI 316 L Plug
25SFTF10RXX Single Shut-Off Hose Barb na na 10 AISI 303 Plug
25SFTF10SXZ Single Shut-Off Hose Barb na na 10 Steel zinc plated Plug
25SFTF13EXX Single Shut-Off Hose Barb na na 13 AISI 316 L Plug
25SFTF13RXX Single Shut-Off Hose Barb na na 13 AISI 303 Plug
25SFTF13SXZ Single Shut-Off Hose Barb na na 13 Steel zinc plated Plug
25SLAD14MPN Flat-Sealing Male Thread - metric na 14x1,5 na Brass nickel plated Plug
25SLAD16MPN Flat-Sealing Male Thread - metric na 16x1,5 na Brass nickel plated Plug
25SLAD18MPN Flat-Sealing Male Thread - metric na 18x1,5 na Brass nickel plated Plug
25SLAW13EVX Flat-Sealing Male Thread - parallel 1/4 na na AISI 316 L Plug
25SLAW13MPN Flat-Sealing Male Thread - parallel 1/4 na na Brass nickel plated Plug
25SLAW13RVX Flat-Sealing Male Thread - parallel 1/4 na na AISI 303 Plug
25SLAW17EVX Flat-Sealing Male Thread - parallel 3/8 na na AISI 316 L Plug
25SLAW17MPN Flat-Sealing Male Thread - parallel 3/8 na na Brass nickel plated Plug
25SLAW17RVX Flat-Sealing Male Thread - parallel 3/8 na na AISI 303 Plug
25SLAW21EVX Flat-Sealing Male Thread - parallel 1/2 na na AISI 316 L Plug
25SLAW21MPN Flat-Sealing Male Thread - parallel 1/2 na na Brass nickel plated Plug
25SLAW21RVX Flat-Sealing Male Thread - parallel 1/2 na na AISI 303 Plug
25SLIM14MPN Flat-Sealing Female Thread - metric na 14x1,5 na Brass nickel plated Plug
25SLIM16MPN Flat-Sealing Female Thread - metric na 16x1,5 na Brass nickel plated Plug
25SLIM18MPN Flat-Sealing Female Thread - metric na 18x1,5 na Brass nickel plated Plug
25SLIW13EVX Flat-Sealing Female Thread - parallel 1/4 na na AISI 316 L Plug
25SLIW13MPN Flat-Sealing Female Thread - parallel 1/4 na na Brass nickel plated Plug
25SLIW13RVX Flat-Sealing Female Thread - parallel 1/4 na na AISI 303 Plug
25SLIW17EVX Flat-Sealing Female Thread - parallel 3/8 na na AISI 316 L Plug
25SLIW17MPN Flat-Sealing Female Thread - parallel 3/8 na na Brass nickel plated Plug
25SLIW17RVX Flat-Sealing Female Thread - parallel 3/8 na na AISI 303 Plug
25SLIW21EVX Flat-Sealing Female Thread - parallel 1/2 na na AISI 316 L Plug
25SLIW21MPN Flat-Sealing Female Thread - parallel 1/2 na na Brass nickel plated Plug
25SLIW21RVX Flat-Sealing Female Thread - parallel 1/2 na na AISI 303 Plug
25SLKK08MPN Flat-Sealing Plastic Hose Connection with Spring Guard na na 6x8 Brass nickel plated Plug
25SLKK10MPN Flat-Sealing Plastic Hose Connection with Spring Guard na na 8x10 Brass nickel plated Plug
25SLKK12MPN Flat-Sealing Plastic Hose Connection with Spring Guard na na 9x12 Brass nickel plated Plug
25SLKO08MPN Flat-Sealing with Plastic Hose Connection na na 6x8 Brass nickel plated Plug
25SLKO10MPN Flat-Sealing with Plastic Hose Connection na na 8x10 Brass nickel plated Plug
25SLKO12MPN Flat-Sealing with Plastic Hose Connection na na 9x12 Brass nickel plated Plug
25SLTF06RVX Flat-Sealing Hose Barb na na 6 AISI 303 Plug
25SLTF09EVX Flat-Sealing Hose Barb na na 9 AISI 316 L Plug
25SLTF09MPN Flat-Sealing Hose Barb na na 9 Brass nickel plated Plug
25SLTF09RVX Flat-Sealing Hose Barb na na 9 AISI 303 Plug
25SLTF10MPN Flat-Sealing Hose Barb na na 10 Brass nickel plated Plug
25SLTF13EVX Flat-Sealing Hose Barb na na 13 AISI 316 L Plug
25SLTF13MPN Flat-Sealing Hose Barb na na 13 Brass nickel plated Plug
25SLTF13RVX Flat-Sealing Hose Barb na na 13 AISI 303 Plug
25SLTS06MPN Flat-Sealing Panel Mount with Hose Barb na na 6 Brass nickel plated Plug
25SLTS10MPN Flat-Sealing Panel Mount with Hose Barb na na 10 Brass nickel plated Plug










信德迈科技（北京）有限公司 CNMEC Technology
2012年开始Parker中国签约授权经销商

E-mail：sales@cnmec.biz fcg.cnmec@parkerdistribution.com.cn
地址：北京市朝阳区望京街10号望京SOHO塔1C座2115室
邮编：100102
电话：010-8428 2935, 8428 9077, 8428 3983
手机：139 101 22694 | 139 1096 2635
Http：//www.cnmec.biz
传真：010-8428 8762

Since 2007 Strong Distribution & Powerful Partnerships


京ICP备08000876号-8
京公网安备 11010502019740
