Parker Quick Couplings快速接头

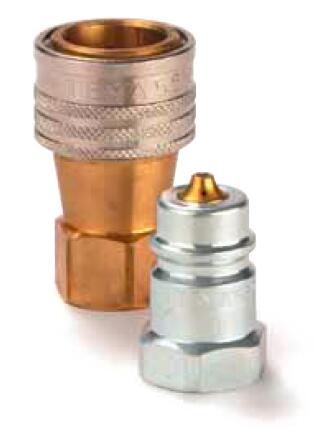

Hydraulic Quick Coupling with ISO A Profile, Series 5500
5500系列液压快换接头，符合ISO A 标准结构

该系列液压快换接头本体尺寸为 1/2"，用于中等压力液压应用场合，耐压可达 250 bar。该系列快换设计符合 ISO A 系列标准结构。 Quick coupling system with body size 1/2" for medium pressure applications up to 250 bar. Coupling system with ISO A Profile

派克5500系列液压快换接头是按 ISO 7241-1 A 标准规范以及尺寸要求进行生产制造的。该系列可定制带背压释放器形式，因此可以在背压（可高达 200 bar）的情况下进行连接。阴接头或者阳接头均可定制带背压释放器形式。 Parker's Series 5500 has been manufactured according to the regulations and dimensions of the standard specification of ISO 7241-1 A Series. With the pressure eliminator, it is possible to establish connections with residual pressure (up to 200 bar). The pressure eliminator is available for both – coupling and the plug.

工作压力Working Pressure Connected:
max. 250 bar

爆破压力Bursting Pressure Connected:
> 1000 bar

Hydraulic Quick Coupling with ISO A Profile, Series 5500

市场Markets:
- Agriculture
- Automotive
- Transportation
- Vocational & Municipal
- Defense
- Industrial
- Construction
农用机械
汽车行业
交通行业
市政设施
安防
工业液压
建筑机械

特点/优势Features/Benefits:
- Can be fitted with pressure eliminator to ensure effortless connection even with residual pressure.
- High flow performance with low pressure drop
- Coupling made of brass to avoid corrosion
可定制带背压释放器形式，即使在背压情况下，也能轻易连接
优化结构设计，流量高，压降低
阴接头标准本体材料为铜镀镍，防腐性能优异

应用Applications:
Easy connection / disconnection in hydraulic systems, both mobile and industrial applications
- Tractors
- Trucks
- Wheel loaders
- Military vehicles
- Presses
- Molding machines
在液压应用中，能方便快捷地进行管路断开或者连接，适用于工业液压以及行走机械液压系统
拖拉机
卡车
装载机
军用设施
压铸机
注塑机

Technical Specifications

Hydraulic Quick Coupling with ISO A Profile, Series 5500 型号
