Parker Quick Couplings快速接头

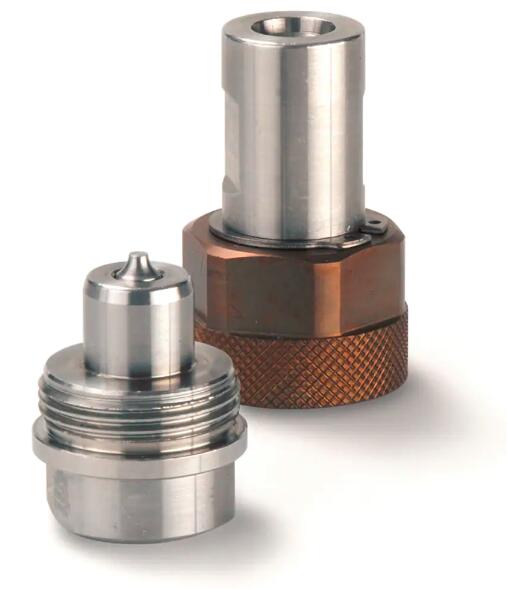

High Pressure Screw-to-Connect Quick Coupling with Parker Profile, Series SK
SK 系列液压快换接头，螺纹连接形式，符合派克内部设计结构
该系列高压快换接头本体尺寸为 1/4" 或者 3/8" ，为螺纹连接形式快换，用于高压液压应用场合，耐压可达1100bar。该系列快换设计符合派克内部设计结构。 High pressure screw-to-connect quick coupling system with body size 1/4" or 3/8" for high pressure applications up to 1100 bar. Coupling system with Parker Profile.
派克高压快换SK系列，使用螺纹进行连接，是为了海工应用开发的。SK系列的本体材料是高强度不锈钢，可耐受高工作压力，适合于腐蚀性较强的应用环境中。
Parker's High Pressure Screw-to-Connect Quick Coupling Series SK were specially developed for off-shore applications. Series SK is made of stainless steel for high working pressure in corrosive environment.
High Pressure Screw-to-Connect Quick Coupling with Parker Profile, Series SK
市场Markets:
- Oil & Gas
- 石油及天然气
特点/优势Freatures/Benefits:
- Corrosion resistant due to the stainless steel construction
- No leckage due to the double-shut-off valve
- Screw-to-connect - connectable under pressure
- Dust caps available for coupling and plug
- 本体材料为不锈钢，有较强的耐腐蚀性
- 阀芯类型为双截止形式，因此断开时无泄漏
- 连接形式为螺纹锁紧形式，因此能够在压力下进行连接
- 公头与母头均可带防尘帽
应用领域Application Area:
- Hydraulic tools in marine- & offshore applications
- 海工以及海上平台的液压工具
Technical Specifications
| Minimum Operating Temperature: |
-25 °C |
| Connection Type: |
Female Thread |
| Application: |
High Pressure |
| Body Size: |
1/4, 3/8 inch |
| Brand: |
Tema |
| Fitting Connection Type: |
Female Thread |
| Interchange Type: |
Tema Profile |
| Maximum Operating Pressure: |
750, 1100 bar, 10870, 15950 psi |
| Maximum Operating Temperature: |
212 °F, 100 °C |
| Media: |
Hydraulic Fluids |
| Valve Type: |
Poppet |
| Connection Thread Size: |
ISO-G 1/4 ORB, ISO-G 3/8 ORB inch |
| Length: |
43 up to 67 mm |
| Hex Size: |
26 up to 41 mm |
| Outside Diameter: |
35, 40, 45 mm |
| Materials of Construction: |
Stainless Steel |
| Seal Material: |
NBR / FKM |
High Pressure Screw-to-Connect Quick Coupling with Parker Profile, Series SK 型号
|
