Parker Quick Couplings快速接头

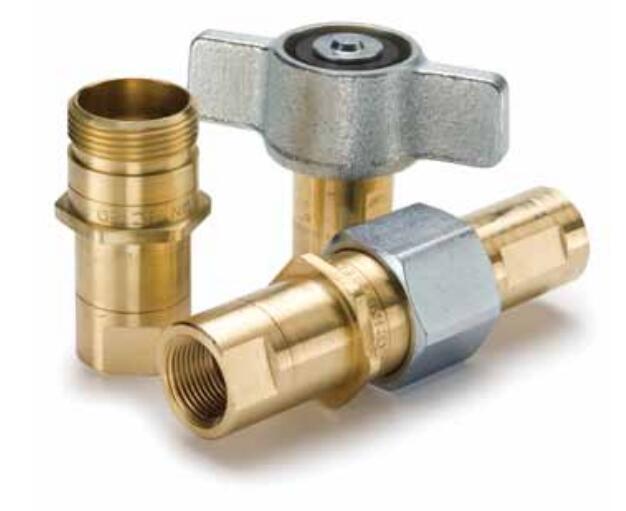

Connect Under Pressure, Hex / Wing Nut Thread to Connect, Low Spill Brass Quick Couplings, up to 3000 psi - 6100 Series Nipples
6100 系列黄铜快换阳接头 - 使用六角螺纹或者翼形螺母，溢流量小，承压可达 3000 psi

派克无溢流型快换阴接头与阳接头，使用翼形螺母或者六角螺母，进行螺纹连接，适用于高压流体冲洗阀应用的理想选择，可在压力下进行连接。 Parker's low spill thread to connect couplers and nipples, wing nut or hex nut style, are ideal for use in applications where a high flow flush valve and connect under pressure is needed.

6100 系列快换阳接头承压（液压油）可达 3000 psi，能与6100系列阴接头进行配合连接。 6100 Series Nipples (hydraulic) up to 3000 psi, connect with 6100 Series Couplers.

派克6100系列使用螺纹形式进行连接，属于无溢流型快换接头，能够在压力下进行连接。快换阴接头以及阳接头本体使用防腐性能较强的黄铜材料。快换阴接头目前有碳钢六角螺母或者重型的翼形螺母套筒进行供货选择。当公母头进行连接，阀芯完全打开后，在公头本体上有沟槽可以可视化地直观显示连接完成。阴接头与阳接头目前可全尺寸系列供货，一套完整快换接头由阴接头，阳接头，以及法兰安装板组成。 Parker's 6100 Series is a thread to connect, low spill coupling that can be connected under pressure. Coupler and nipple bodies are corrosion resistant brass. Couplers are available with a steel hex nut or heavy duty wing nut sleeve. A connection indicator groove on the nipple body visually shows when the connection is complete and valves are fully open. Couplers and nipples are available in a range of sizes. Couplings sets consisting of a coupler, nipple, and mounting flanges are also available.

Connect Under Pressure, Hex / Wing Nut Thread to Connect, Low Spill Brass Quick Couplings, up to 3000 psi - 6100 Series Nipples

技术特点Technical Characteristics:
- Sizes: 3/4” thru 1-1/2"
- Materials: Brass
- Port Ends: Female NPTF
- Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene
- 本体尺寸：3/4” 到 1-1/2"
- 材料：黄铜
- 尾端连接：NPTF 内螺纹
- 密封选项：丁腈橡胶，三元乙丙橡胶，氟橡胶，氯丁橡胶

市场Markets:
- Oil and gas
- Construction
- Testing
- 石油和天然气
- 建筑
- 测试

特点/优势Features/Benefits:
- Couplers are available with steel hex or heavy duty wing nut sleeve
- Low spill flush valves
- Bonded valve seal is durable under full pressure connect and disconnect
- Connection indicator groove on the nipple body visually indicates when the connection is complete
- Optional flange for secure bulkhead or panel mounting
- 阴接头可选择碳钢六角螺母或者重型的翼形螺母
- 低溢流量的冲洗阀
- 阀芯使用组合密封，能够在压力下进行连接或者断开
- 阳接头的沟槽里使用连接指示器可以可视地指示连接是否完成
- 可选择法兰接头形式，来保障隔板或者平板安装形式

应用Applications:
- Submersible pumps
- Oil field equipment
- Dump trailers
- Engine test stands
- Bulk liquid transfer
- CO2 transfer
- 潜水泵
- 油田设备
- 倾倒拖车
- 发动机试验台
- 散装液体转移
- CO2传输

Technical Specifications

Connect Under Pressure, Hex / Wing Nut Thread to Connect, Low Spill Brass Quick Couplings, up to 3000 psi - 6100 Series Nipples 型号
