Parker派克流体连接件Parker fluid connectors
Parker派克热塑软管-Parflex

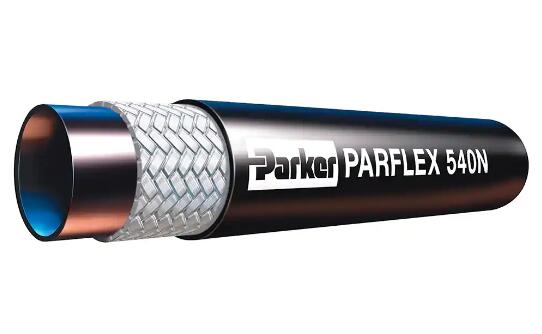

Parker Parflex 540N - 中压软管

派克的 540N 通用液压软管，具有优异的化学兼容性，能比传统的SAE100R1AT软管输送更多更广泛的液压流体。 540N hose is the optimum solution for applications that involve the conveyance of fluids, gases and other media. Hose features excellent chemical compatibility and the ability to handle a greater range of fluid compatibility than competing hoses.

派克的 540N通用液压软管，符合或超过 SAE 100R7 标准要求、并通过 MSHA 认证，其表面光滑，摩擦系数低。该软管是派克公司生产的一款很受欢迎的热塑软管，能广泛地使用于各种应用中。 由于该软管芯管具有优异的化学兼容性，而使得该产品可传输比传统的 SAE 100R1AT 软管更为广泛的流体介质，因此 540N 软管能为各种应用场合提供优异的解决方案，尤其在流体、气体和其它介质的传输应用中就更能彰显其用武之地，比如农业喷洒、热水、耐火流体以及更多介质。 Parker's 540N General Purpose Hydraulic Hose meets or exceeds SAE 100R7, is MSHA accepted, and has a matte cover for low coefficient of friction. It is one of the most popular thermoplastic hoses Parker offers and is used in a wide variety of applications. Featuring excellent chemical compatibility and the ability to handle a greater range of fluid compatibility in comparison to SAE 100R1AT hose, the 540N is the optimum solution for applications that involve the conveyance of fluids, gases and other media, such as agricultural spraying, hot water, fire-resistant fluid and more. Similar to 3TR7/3130 hose but weighing in at 20% less.

PU外胶热塑软管

派克汉尼汾旗下的PU外胶热塑软管具备优异的耐 UV 射线能力，在恶劣的自然环境中耐气候能力优异；
外径小而紧凑，可完美适应镜面跟随阳光慢速旋转；
同时耐生物降解能力优异。
PU外胶热塑软管能够帮助客户大幅降低意想不到的额外维修和维护成本，进而显著降低太阳能电厂的运行成本。

工作压力情况下软管长度变化率为+/-2%

Parker Parflex 540N - 中压软管

市场Markets:
- Agriculture
- Industrial
- Machine Tool
- Automation
- Fluid Handling
- 农业
- 工业
- 机械工具
- 自动化
- 流体处理

特点/优势Features/Benefits:
- Matte cover for low coefficient of friction
- Handles greater range of fluid capability than SAE 100R1AT hose
- Special order colors
- Twin or multi-line configurations available
- Excellent chemical compatibility
- Clean core tube
- 光滑表面使得软管表面的摩擦系数低
- 比传统 SAE 100R1AT 软管处理更为广泛流体的能力
- 可根据客户要求定制特有的颜色
- 可提供双联或多联管产品
- 优异的化学兼容性
- 芯管易于清洁

应用Applications:
- Hydraulic and pneumatic systems
- Agricultural spraying
- Polyurethane foam mixers
- Fire-resistant fluid
- Air or water transfer
- Car wash wands
- Carpet cleaning equipment
- 液压和气动系统
- 农业喷洒
- 聚氨酯泡沫塑料混料器
- 耐火流体输送
- 空气或水的输送
- 汽车清洗
- 地毯清洗设备

证书/符合标准Certifications/Compliance:
- Meets/Exceeds SAE 100R7
- MSHA Accepted
- 符合/超过SAE 100R7标准要求
- 通过MSHA 认证

技术参数Technical Specifications:
- Tube: Nylon
- Reinforcement: Fiber
- Cover: Polyurethane, perforated
- Hose I.D. is nominal
- Hose O.D. is maximum
- 芯管: 尼龙
- 增强层: 纤维
- 外胶层:聚氨酯，针刺
- 软管内径采用公称尺寸
- 软管外径按最大尺寸设计

Parker Parflex 540N - 中压软管 型号：
