Parker Parflex588N - 高压绝缘管

派克绝缘软管518C/518D 系列，采用高密度的编织结构，使得软管具有大的脉冲寿命。518D 软管芯管采用尼龙材质，这就使得该软管具有更为优异的化学兼容性。 The 580N/588N High Pressure Flexible Hose meets SAE 100R8 specifications and offers a smaller O.D. and lighter weight than the 100R2, replacing 100R2 rubber hose wherever greater flexibility, fluid compatibility, and cover durability are required.

派克580N/H580N/588N高压软管符合SAE 100R8标准要求，比常见的100R2橡胶液压软管重量轻且外径小，在需要更好柔韧性、流体兼容性以及表面持久耐磨性的应用场合中能替换100R2橡胶液压管。该系列软管采用高标准的设计理念，可以提供双联和多联结构，在液压和气动系统应用中表现出卓越的产品性能。由于具有更优良的产品特性，比如重量轻、柔韧能力更好，Parflex 580N/H580N/588N高压软管集中了诸多优点于一身，适用于流体处理和工业气动市场。 Parker's 580N/588N High Pressure Hose meets SAE 100R8 specifications and, with a lighter weight and smaller O.D. than the 100R2, replaces 100R2 rubber hose wherever greater flexibility, fluid compatibility, and cover durability are required. This high pressure hydraulic hose features a highly developed design, available in twin-line and multi-line constructions, to ensure high performance in hydraulic and pneumatic circuits and systems applications. Offering superior features, such as a reduced weight and improved flexing capabilities, the Parflex 580N/588N High Pressure Hose combines a variety of advantages to fulfill application requirements in expanding fluid handling and industrial pneumatic markets.

588N - 高压绝缘管

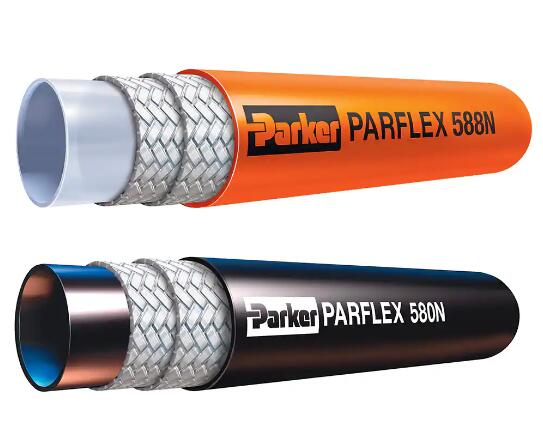

580N/H580N/588N 高压软管

市场Markets:
- Fluid Handling
- Industrial
- Mobile Equipment
- 流体处理
- 工业
- 工程机械设备

特点/优势Features/Benefits:
- Twin and multi-line available to fulfill diverse application requirements
- Lighter weight and smaller O.D. than 100R2 for improved handling and routing
- Replaces 100R2 rubber hose wherever greater flexibility, fluid compatibility, and cover durability are required
- 针对各种实际应用需求可提供双联和多联结构产品
- 比常见的100R2橡胶液压软管重量轻且外径小，这提高了现场操作的效率，而且实现了优良的现场管路安装布置效果
- 在需要更优异的柔韧性、流体兼容性以及表面持久耐磨能力的应用场合中，能替换100R2橡胶液压软管

应用Applications:
- Hydraulic and pneumatic circuits and systems
- Construction Equipment
- Factory Automation
- Machine Tools
- Material Handling Equipment
- Turf Equipment
- 液压和气动系统应用
- 建筑设备
- 工厂自动化
- 机器工具
- 材料处理设备
- 草皮保养设备

证书/符合标准Certifications/Compliance:
- Meets/Exceeds SAE 100R8 specifications
- 580N MSHA Approved
- 588N Meets SAE J517 for less than 50 micro-amps leakage under 75,000 volts per foot
- 符合甚至超过SAE 100R8标准要求
- 580N软管具备MSHA认证
- 588N软管符合SAE J517绝缘性要求，即每英尺长度上加75,000伏电压其电流不大于50微安

技术参数Technical Specifications:
- Tube: Nylon (588N has a non-conductive core tube for applications where electric shock is a potential danger for operators)
- Reinforcement: Fiber
- Cover: 580N Black polyurethane, perforated
588N Orange polyurethane, non-perforated
- Burst pressures are rated at 73°F (23°C)
- Hose I.D. is nominal
- Hose O.D. is maximum
- 芯管:尼龙(588N软管的绝缘芯管以符合那些有电击并潜在威胁操作者安全的应用)
- 增强层:纤维
- 外胶层: 580N软管外胶层是黑色的聚氨酯，针刺
588N软管外胶层是橙色的聚氨酯，不针刺
H580N软管外胶层是黑色的聚氨酯材料，不针刺
- 爆破压力在+23°C时标定
- 软管I.D.是公称尺寸
- 软管O.D.是大尺寸设计

580N/H580N/588N 高压软管 型号
