Parker派克流体连接件Parker fluid connectors
派克乐可利工程塑料或者铜镀镍气动调速节流阀

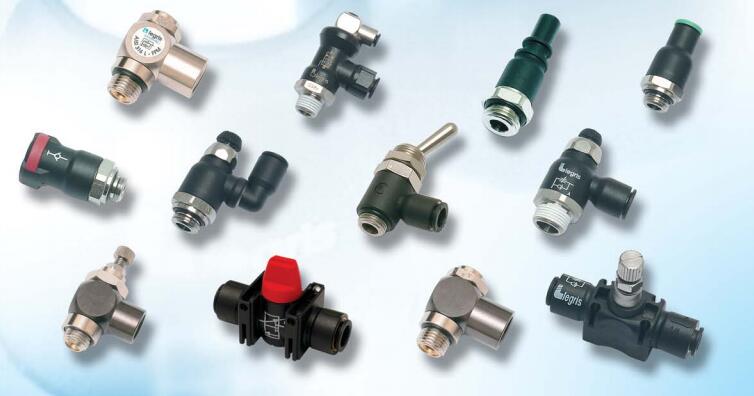

Parker Legris Pneumatic Flow Control Regulators in Polymer or Nickel-Plated Brass

派克乐可利调速节流阀产品有工程塑料、铜镀镍或铝等形式的产品。带外部调节和安全调节螺丝两种调节方式，提供了精密调节和紧凑性，适用于所有应用。 Parker Legris flow control regulators with polymer, nickel-plated brass or aluminium bodies,external or recessed adjustment screws, offer precise adjustment, accuracy and compactness providing the solution for all applications.

派克乐可利调速节流阀产品有工程塑料、铜镀镍或铝等形式的产品。带外部调节和安全调节螺丝两种调节方式，提供了精密调节、正确性和紧凑性的特点，适用于相关应用。该系列节流阀比一般品牌调速接头流量更大 ,因此能够帮助您提供生产效率。 Parker Legris flow control regulators offer precise adjustment, accuracy and compactness providing the solution for all applications. Those flow control regulators are available with polymer, nickel-plated brass or aluminium bodies, external or recessed adjustment screws. By allowing a higher maximum flow than standards regulators and precise adjustement, this range of products helps you improve your productivity and performance with accuracy.

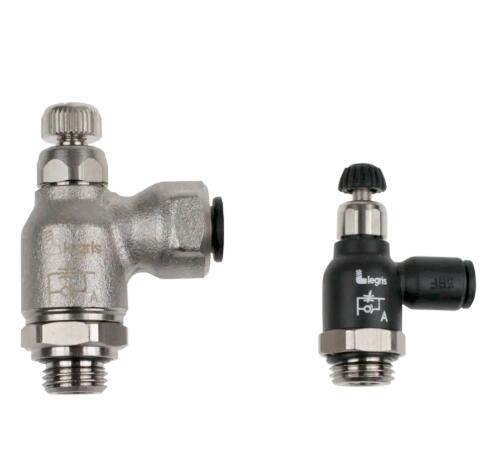

Pneumatic Flow Control Regulators in Polymer or Nickel-Plated Brass

Legris节流阀、快速排气阀

特点/优势Features/Benefits:

- Improved Productivity

- Higher maximum flow than standard regulators
- Full flow with minimum pressure drop (model 7060)
- Optimal control of the cylinder rod speed
- 100% leak-tested in production
- Date coding to guarantee quality and traceability
- Reduce compressed air and energy consumption

- Accuracy & Performance

- Precise adjustment for accurate flow regulation from initial to maximum opening
- Constant cylinder rod displacement speed
- Long-term stability of flow
- Reduced weight (polymer version)
- Mechanical strength and corrosion resistance with nickel-plated brass version

- Ergonomics & Large Range

- External adjustment screw: easy to adjust without tooling and lockable
- Recessed adjustment screw: more compact and protects the adjustment mechanism
- Uni-directional: exhaust or inlet
- Bi-directional: adjustment of air flow in both directions
- 360° positioning
- NPT version on request

- 提高生产力

-比一般品牌调速接头流量更大; 全流量，更小压降
-型号7060; 控制气缸活塞杆运动速度选择
-生产环节完整防泄漏检测;
- 提供质量和可追溯性的日期代码
-降低压缩空气和能源的消耗

- 精度以及性能

- 从初流量到流量上限的正确调节
- 活塞杆位移速度恒定
- 气流长期稳定
- 重量轻（工程塑料型式）
- 铜镀镍型式具有较高的机械强度和耐腐蚀性

- 符合人体工程学设计，产品应用范围广

-外部调节螺丝：易于调节，无需工具，并且可以锁定
- 安全调节螺丝：更紧凑，保护调节设置
- 单方向：排气节流型或进气机器节流型
- 双方向：双方调节型
- 可360°旋转定位
- 根据要求可提供NPT螺纹型式的接头

市场Markets:

- Factory Automation
- Vehicle Assembly Facilities
- Food and Beverage
- Semiconductor
- Wearing Apparel
- Packaging Machinery
- Rail
- 工厂自动化
- 汽车装配生产线
- 食品以及饮料

应用Applications:

- Pneumatic Cylinder Control
- Low Pressure Compressed Air Flow Regulation
- 气缸控制；
- 低压空气流量调节阀

技术Technologies:

- Flow control
- Bi-directional regulator
- Uni-directional regulator
- Pneumatic controls
- Swivel Outlet
- 流量控制
- 双向调速阀
- 单向调速阀
- 气动控制
- 出口方向可调

技术参数Technical Characteristics:

- Fluids: Compressed Air. Other fluids: contact us
- Materials: Nickel-plated brass, technical polymer, stainless steel, NBR
- Pressure: Vacuum to 10 bar
- Temperature: 0°C to +70°C
- 流体：压缩空气。气体流体请咨询派克销售
- 材料：铜镀镍，工程塑料，不锈钢，NBR
- 压力：真空至10 bar
- 温度范围：0℃至 +70℃

符合规范Regulations:

- DI: 2002/95/EC (RoHS)
- RG: 1907/2006 (REACH)
- DI: 97/23/EC (PED)

产品类型Product Types:

- Flow Regulator with Recessed Adjustment Screw Exhaust / Supply, Male BSPP and Metric Thread
- Bi-Directional Flow Regulator with Recessed Adjustment Screw, Male BSPP and Metric Thread
- Compact Flow Regulator Exhaust / Supply, Male BSPP / BSPT Thread
- Bi-Directional Compact Flow Regulator, Male BSPP / BSPT Thread
- Miniature Flow Regulator Exhaust, Male BSPP and Metric Thread / BSPT
- Miniature Flow Regulator Supply, Male BSPP and Metric Thread / BSPT
- Bi-Directional Miniature Flow Regulator, Male BSPP and Metric Thread
- Compact Flow Regulator Swivel Outlet Exhaust / Supply, Male BSPP / BSPT Thread
- Compact Flow Regulator Swivel Outlet Exhaust, Male BSPT Thread
- Miniature Swivel Outlet Flow Regulator Exhaust / Supply, Male BSPP and Metric Thread / BSPT
- In-Line One-Way Flow Regulator
- Bi-Directional In-Line Flow Regulator
- Panel-Mountable In-Line One-Way Flow Regulator
- In-Line One-Way Flow Regulator, Female BSPP Thread
- Joining Clips
- Straight Flow Regulator Exhaust, Male BSPP Thread
- Compact Plug-In Flow Regulator, Exhaust / Supply
- Miniature Plug-In Flow Regulator, Exhaust / Supply
- Flow Regulator, Exhaust, Male BSPP and Metric Thread
- Flow Regulator, Exhaust, Male/Female BSPP and Metric Thread
- Flow Regulator with Brass Compression Fitting, Exhaust, Male BSPP Thread
- Compact Flow Regulator, Exhaust / Supply, Male BSPP Thread
- Compact Flow Regulator, Male BSPP Thread
- Miniature Flow Regulator Exhaust, Male BSPP and Metric Thread
- Compact Flow Regulator Exhaust / Supply, Male/Female BSPP Thread
- Miniature Flow Regulator Exhaust, Male/Female BSPP and Metric Thread
- Flow Regulator Exhaust, with Brass Compression Fitting, Male BSPP Thread
- Panel-Mountable In-Line Flow Regulator, Female BSPP and Metric Thread
- 带安全调节螺丝的排气调速阀，BSPP和公制外螺纹
- 带安全调节螺丝的进气调速阀，BSPP和公制外螺纹
- 带安全调节螺丝的双向调速阀，BSPP和公制外螺纹
- 大流量排气型调速阀，BSPP外螺纹
- 大流量排气型调速阀，BSPT外螺纹
- 大流量排气型调速阀，BSPT外螺纹
- 大流量进气型调速阀，BSPP外螺纹
- 大流量进气型调速阀，BSPT外螺纹
- 大流量双向节流型调速阀，BSPP外螺纹;
-大流量双向节流型调速阀，BSPT外螺纹
-迷你型排气调速阀，BSPP和公制外螺纹
- 迷你型排气调速阀，BSPT外螺纹
- 迷你型进气调速阀，BSPP和公制外螺纹
- 迷你型进气调速阀，BSPT外螺纹
- 迷你型双向调速阀，BSPP和公制外螺纹
- 大流量“U”形出口排气型调速阀，BSPP外螺纹
- 大流量“U”形出口排气型调速阀，BSPT外螺
- 大流量“U”形出口进气型调速阀，BSPP外螺纹
- 迷你型带“U”形出口排气调速阀，BSPP和公制外螺纹
- 迷你型带“U”形出口排气调速阀，BSPT外螺纹
- 迷你型带“U”形出口进气调速阀，BSPP和公制外螺纹
- 管对管单向调速阀；
- 双向管对管调速阀；
- 穿板式管对管单向调速阀/管对管单向调速阀，BSPP内螺纹/并联管夹
- “直接头型”排气调速阀，BSPP外螺纹
- 大流量带尾管排气型调速阀/大流量带尾管进气型调速阀/
-迷你型带尾管排气型调速阀/迷你型带尾管进气型调速阀/排气型调速阀
-BSPP和公制外螺纹/排气型调速阀
-BSPP和公制内/外螺纹/带铜卡套式接头排气调速阀
-BSPP外螺纹/排气型调速阀
-BSPP外螺纹/进气型调速阀
-BSPP外螺纹/排气型调速阀
-BSPP外螺纹/迷你型排气调速阀
-BSPP和公制外螺纹/排气型调速阀
-BSPP内/外螺纹/进气型调速阀
-BSPP内/外螺纹/迷你排气型调速阀
-BSPP和公制内/外螺纹/带铜质卡套式接头排气型调速阀
-BSPP外螺纹；穿板式管对管调速阀，BSPP和公制内螺

Technical Specifications

Pneumatic Flow Control Regulators in Polymer or Nickel-Plated Brass 型号
