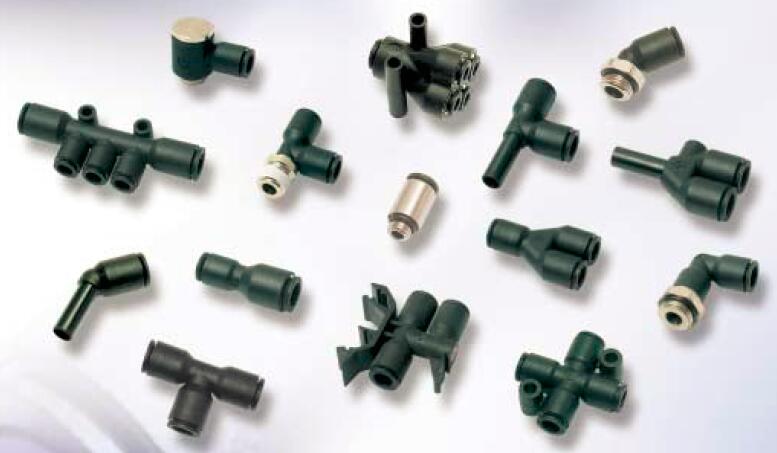

Legris LF3000系列快插式接头Pneumatic Push-In Fittings - LF 3000

LF 3000 系列快插式接头系列有多种形状和尺寸，您可以找到符合您需求的优质产品，从而优化设备的使用。 The LF 3000 pneumatic fitting range, with its wide variety of shapes and configurations, allows you to find the perfect connector to meet your needs and thus optimise the use of your equipment.

LF 3000 系列快插式接头系列有多种形状和尺寸，您可以找到符合您需求的产品，从而优化设备的使用。 The LF 3000 pneumatic fitting range, with its wide variety of shapes and configurations, allows you to find the perfect connector to meet your needs and thus optimise the use of your equipment.

推动式连接是将接头连接到管子，创建管路连接系统的非常直观有效的方法。由于其快速安装，多功能性和长久的使用寿命，推入式接头连接方式有助于提高机器效率。 The push-in fitting is the most intuitive way of connecting tubes to a fitting in order to create a fluid distribution network. Thanks to its quick installation, versatility and exceptional lifespan, the push-in fitting contributes to improving machine efficiency.

此外，LF3000 的高级设计有助于降低总体使用成本。 Moreover, the advanced patented design of the LF 3000 contributes to reducing total cost of use.

Legris LF3000系列快插式接头 Pneumatic Push-In Fittings - LF 3000

优势与优点： 安装简便、快速密封、多种产品选项

3175直接头
3199直角接头
3109直角接头
3104管对管接头
3118铰接式接头
3149铰接式接头
3119铰接式接头
3102直角接头
3106直接头
3140管对管接头
3116穿板直接头
3136穿板接头
3139穿板直角接头
3182直角接头
3126接头用堵头

特点/优势Features/Benefits:

- Extreme Durability for Optimum Profitability
- 卓越的品质

- 40 years of expertise
- Conforms to ISO 14743
- Ideal for vacuum or pressure applications
- Tried-and-tested longevity according to DI 2006/42/CE requirements
- Materials with high resistance
- Durability of product and equipment
- 40年的理论知识
- 符合ISO 14743标准
- 真空或压力应用的选择
- 根据DI 2006/42 / CE要求进行试验和测试的寿命
- 具有高电阻材料
- 产品和设备的耐久性

- Maximum Machine Efficiency
- 显著提高机器效率

- 100% leak-tested in production
- Full bore for optimum flow
- Tube fixed during connection, preventing leakage
- Excellent vacuum performance thanks to the patented sealing technology
- 生产环节防泄漏全检
- 实现更好流量的全通径设计
- 在连接过程中固定管道，预防泄露
- 不同寻常的密封技术，卓越的真空性能

- Productivity & Maintenance Improvement
- 生产效率和保养改善

- Compact and aesthetic design: reduced dimensions for space-saving
- Lightweight: reduced energy consumption of operating systems
- Parallel threaded fitting with a patented captive O-ring seal
- Maximum flexibility due to the wide product range
- Date coding to guarantee quality and traceability
- Automatic sealing guaranteed, in both static and dynamic applications
- 紧凑和美观的设计：减少尺寸，节省空间
- 质量轻：降低操作系统的能耗
- 带有不同寻常的沟槽O形密封圈的直螺纹接头
- 由于产品范围广泛，灵活性很高
- 实现质量追踪的可追溯性日期代码
- 在静态和动态应用中达到自动密封

市场Markets:

- Factory Automation
- Vehicule Assembly Facilities
- Food and Beverage
- Semiconductor
- Wearing Apparel
- Packaging Machinery
- 工厂自动化
- 车辆装配设施
- 食品和饮料
- 半导体
- 服装
- 包装机械

应用Applications:

- Pneumatic Machinery Equipment
- Low Pressure Compressed Air Conveying
- Suitable for Vaccum Applications
- 气动机械设备
- 低压压缩空气输送
- 适用于真空应用

技术Technologies:

- Push-In Fittings
- Push-to-Connect Fittings
- Pneumatic Fittings
- Instant Fittings
- Quick Fittings
- Connectors
- Swivel Fittings
- 快插接头
- 推入式连接接头
- 气动接头
- 即时接头
- 快速接头
- 管路连接
- 旋转接头

技术特点Technical Characteristics:

- Fluids: Compressed Air, Other fluids: please consult us
- Materials: Technical polymer, nickel-plated brass, NBR
- Pressure: Vacuum to 20 bar
- Temperature: -20°C to +80°C
- Metric: 4mm to 16 mm
- Inch: 1/8" to 1/2"
- 流体：压缩空气，其他流体：请咨询我们
- 材料：工程材料，镀镍黄铜，NBR
- 压力：真空至20bar
- 温度：-20°C至+ 80°C
- 直径公制：4mm至16mm
- 直径英制：1/8 英寸 1/2英寸

法规Regulations:

- ISO 14743: Pneumatic fluid power, push-in connectors for thermoplastic tubes
- DI: 97/23/EC (PED)
- DI : 2002/95/EC (RoHS), 2011/65/EC
- DI : 1907/2006 (REACH)
- ISO 14743：气动流体动力，用于热塑管的快插接头
- DI:97/23/EC (PED)
- DI :2002/95/EC (RoHS), 2011/65/EC
- DI :1907/2006 (REACH)

产品类型Product Types:

- Stud Fittings
- Stud Standpipe
- Stud Elbow
- Extended Stud Elbow
- Elbow
- Stud Branch Tee
- Stud Run Tee
- Y Piece
- Double Y Piece
- Tube-to-Tube Fittings
- Equal & Unequal Tube-to-Tube Connector
- Equal & Unequal Elbow
- Equal & Unequal Tee
- Equal & Unequal Single Y Piece
- Equal & Unequal Cross
- Bulkhead Connector Fittings
- Equal Bulkhead Connector
- Equal Mixed Bulkhead Connector
- Bulkhead Connector
- Equal Bulkhead Elbow
- Multiple Fittings
- Equal & Unequal Multiple Y Piece
- Multiple Tee
- 90° Multiple Elbow
- In-Line Manifold
- Plug-In Fittings and Accessories
- Equal & Unequal Plug-In Elbow
- Equal Plug-In Elbow
- Extended Equal and Unequal Plug-In Elbow
- 45° Plug-In Equal Elbow
- Equal & Unequal Plug-In Run Tee
- Equal & Unequal Plug-In Branch Tee
- Equal & Unequal Plug-In Single Y Piece
- Multiple Plug-In Y Piece
- Stem Connector
- Plug-In Reducer & Increaser
- Blanking Plug
- Plug-In Barb Connector
- End Cap
- 油口接头
- 尾管油口接头
- 油口弯头
- 加长油口弯头
- 弯头
- 支路油口三通
- 直路油口三通
- Y形接头
- 双Y形接头
- 管对管接头
- 等径以及异径管对管接头
- 等径以及异径弯头
- 等径以及异径三通
- 等径以及异径Y形接头
- 等径以及异径十字接头
- 隔板连接接头
- 等径隔板连接接头
- 等径隔板混合连接接头
- 隔板接头
- 等径隔板弯头
- 多功能接头
- 等径以及异径多功能Y形接头
- 多功能三通
- 90°多功能弯头
- 管路阀块
- 快插接头及附加
- 等径以及异径快插弯头
- 等径快插弯头
- 等径以及异径快插弯头
- 45°等径快插弯头
- 等径以及异径直管三通
- 等径以及异径快插支管接头
- 等径以及异径快插Y形接头
- 多功能Y形快插接头
- 尾管连接接头
- 快插式减径以及膨胀接头
- 堵头
- 快插宝塔接头
- 管帽

Technical Specifications

Pneumatic Push-In Fittings - LF 3000 型号
