派克60系列阀芯结构是双截止型，并且可与气体符合ISO 7241-B 标准的快换进行互换。
这些通用型快换接头有多种材料以及全尺寸范围可供货，包括高温蒸汽。派克的60系列作为一款多用途型产品，适用于各种应用，承压能力可达5000 psi。

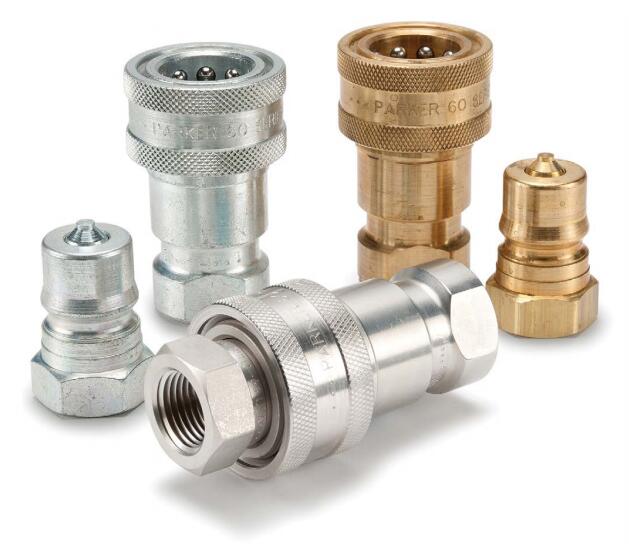

Parker派克 60系列快换接头 - 多功能快换，符合ISO 7241-B 标准
密封材料及温度范围： |
丁腈橡胶：黄铜、碳钢及303不锈钢的标准密封材料，-40°C ~ +120°C
氟橡胶：316不锈钢的标准密封材料，-25°C ~ +200°C |
本体材料： |
黄铜
碳钢
303不锈钢 |
优势与优点： |
- 符合ISO 7241-1-B标准要求
- 压紧式锥阀结构
- 可选碳钢、黄铜、303不锈钢
- 黄铜阴接头带双层O形圈，适用于低压及真空应用
- 碳钢阴接头套筒和阳接头本体均经过硬化处理，极耐磨损
- 可选带套筒锁型式
- 可选适用于高循环或高冲击压力等重载场合的阳接头型式(HD) |
60系列阴接头
60 系列快换阴接头承压（液压油，流体，气体，蒸汽）可达 5000 psi，可与符合ISO 7241-B 标准的 60系列阳接头配合连接。
派克60 系列阀芯结构是双截止型，并且可与气体符合ISO7241-B 标准的快换进行互换。
这些通用型快换接头有多种材料以及全尺寸范围可供货，包括高温蒸汽。派克的60系列作为一款多用途型产品，适用于各种应用，承压能力可达5000 psi。
用于蒸汽的快换阴接头是全铜接头，并使用双密封圈形式，锁紧钢珠材料为不锈钢。密封材料是三元乙丙橡胶，3/8" 的套筒上有滚花设计，方便带手套时进行操作。
技术参数：
- 尺寸范围：1/8” – 2-1/2”
- 材料：碳钢，黄铜，302 不锈钢，316 不锈钢
- 尾端连接：NPTF 内螺纹，ORB 内螺纹
- 密封可选：丁腈橡胶，EPR，氟橡胶，氯丁橡胶
- 阴接头可选项：套筒锁，阀门执行器，蒸汽兼容性
市场：
- 工业液压
- 建筑机械
- 化工过程
- 商业清洗
- 农机设备
特点/优点：
- 可与全球范围内符合ISO7241-B 标准的其他制造商的快换接头进行互换
- 多用途快换接头，广泛应用于各种应用
- 碳钢快换阴接头的套筒使用硬化处理，有较好的强度及耐久性表现
- 金属材料的阀门能够阻止流量逆流，从而使系统表现更加稳定
- 蒸汽型快换阴接头使用三元乙丙橡胶进行密封，可以承受高温，并且3/8" 的快换的套筒使用滚花处理，可以方便在带手套的时候进行操作
- 黄铜快换接头使用双密封形式进行有效的密封，并使用不锈钢的锁紧钢珠能够进行有效地防腐
- 316 不锈钢快换阴接头使用氟橡胶密封，能够有效提高化学兼容性
- 快换阴接头可选配套筒锁，能阻止意外的断开
应用：
- 工业液压管路
- 食品和化学品处理
- 水和冷却液管路
- 高压流体输送
- 高温流体输送
- 移动设备
- 清洁设备
- 干洗
- 蒸汽系统
|
性能特点 |
主体尺寸： |
1/8, 1/4, 3/8, 1/2, 3/4, 1, 1 1/2, 2 1/2 inch |
max.运行压力： |
Up to 5000 psi
Up to 345 bar |
应用： |
Hydraulic, general purpose, vacuum to medium pressure |
品牌： |
Parker |
半联轴器： |
Coupler |
配件连接类型： |
Female Thread |
符合规格： |
ISO 7241-1, series B |
交换式： |
ISO 7241-1 Series B |
结构材料： |
Steel, Brass, Stainless steel |
MAX.运行温度： |
Up to 204 °C
Up to 400 °F |
介质： |
Hydraulic |
密封材料： |
Nitrile, EPR, Fluorocarbon |
真空额定压力： |
Yes |
阀门类型： |
Poppet 提升阀 |

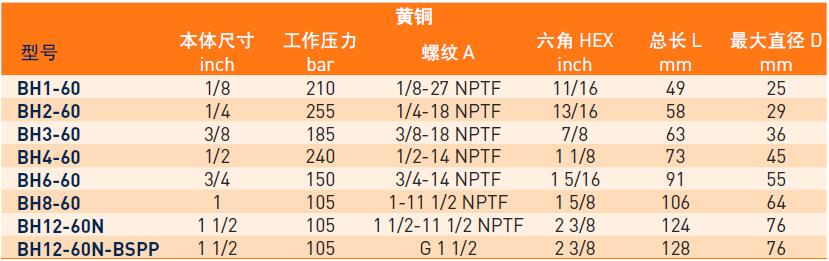

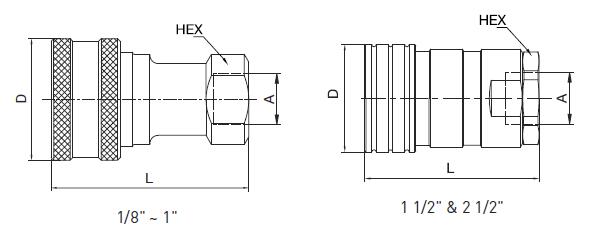

60系列 - 阴接头
黄铜
|
| 型号 |
本体尺寸
inch |
工作压力
bar |
螺纹A |
六角 HEX
inch |
总长 L
mm |
直径 D
mm |
| BH1-60 |
1/8 |
210 |
1/8-27 NPTF |
1 1/16 |
49 |
25 |
| BH2-60 |
1/4 |
255 |
1/4-18 NPTF |
1 3/16 |
58 |
29 |
| BH3-60 |
3/8 |
185 |
3/8-18 NPTF |
7/8 |
63 |
36 |
| BH4-60 |
1/2 |
240 |
1/2-14 NPTF |
1 1/8 |
73 |
45 |
| BH6-60 |
3/4 |
150 |
3/4-14 NPTF |
1 5/16 |
91 |
55 |
| BH8-60 |
1 |
105 |
1-11 1/2 NPTF |
1 5/8 |
106 |
64 |
| BH12-60N |
1 1/2 |
105 |
1 1/2-11 1/2 NPTF |
2 3/8 |
124 |
76 |
| BH12-60N-BSPP |
1 1/2 |
105 |
G 1 1/2 |
2 3/8 |
128 |
76 |

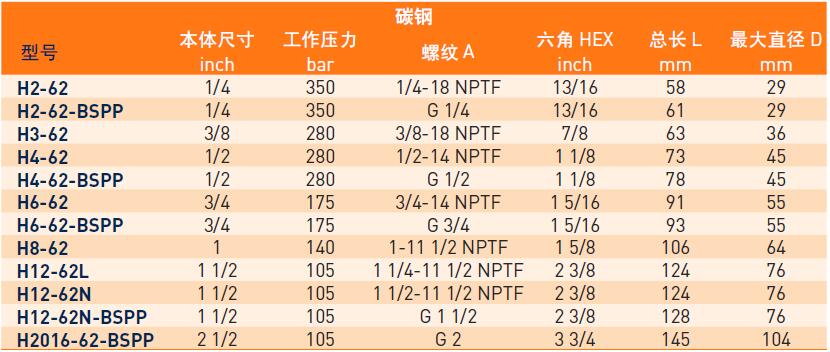

碳钢 |
| 型号 |
本体尺寸
inch |
工作压力
bar |
螺纹A |
六角 HEX
inch |
总长 L
mm |
直径 D
mm |
| H2-62 |
1/4 |
350 |
1/4-18 NPTF |
13/16 |
58 |
29 |
| H2-62-BSPP |
1/4 |
350 |
G 1/4 |
13/16 |
61 |
29 |
| H3-62 |
3/8 |
280 |
3/8-18 NPTF |
7/8 |
63 |
36 |
| H4-62 |
1/2 |
280 |
1/2-14 NPTF |
1 1/8 |
73 |
45 |
| H4-62-BSPP |
1/2 |
280 |
G 1/2 |
1 1/8 |
78 |
45 |
| H6-62 |
3/4 |
175 |
3/4-14 NPTF |
1 5/16 |
91 |
55 |
| H6-62-BSPP |
3/4 |
175 |
G 3/4 |
1 5/16 |
93 |
55 |
| H8-62 |
1 |
140 |
1-11 1/2 NPTF |
1 5/8 |
106 |
64 |
| H12-62L |
1 1/2 |
105 |
1 1/4-11 1/2 NPTF |
2 3/8 |
124 |
76 |
| H12-62N |
1 1/2 |
105 |
1 1/2-11 1/2 NPTF |
2 3/8 |
124 |
76 |
| H12-62N-BSPP |
1 1/2 |
105 |
G 1 1/2 |
2 3/8 |
128 |
76 |
| H2016-62-BSPP |
2 1/2 |
105 |
G 2 |
3 3/4 |
145 |
104 |

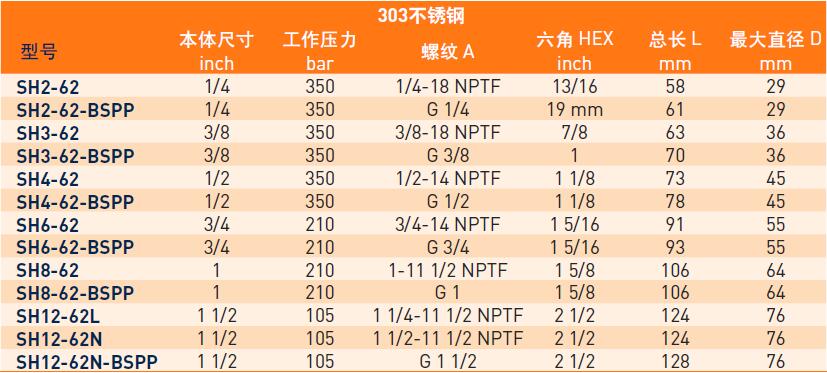

303不锈钢 |
| 型号 |
本体尺寸
inch |
工作压力
bar |
螺纹A |
六角 HEX
inch |
总长 L
mm |
直径 D
mm |
| SH2-62 |
1/4 |
350 |
1/4-18 NPTF |
13/16 |
58 |
29 |
| SH2-62-BSPP |
1/4 |
350 |
G 1/4 |
19 mm |
61 |
29 |
| SH3-62 |
3/8 |
350 |
3/8-18 NPTF |
7/8 |
63 |
36 |
| SH3-62-BSPP |
3/8 |
350 |
G 3/8 |
1 |
70 |
36 |
| SH4-62 |
1/2 |
350 |
1/2-14 NPTF |
1 1/8 |
73 |
45 |
| SH4-62-BSPP |
1/2 |
350 |
G 1/2 |
1 1/8 |
78 |
45 |
| SH6-62 |
3/4 |
210 |
3/4-14 NPTF |
1 5/16 |
91 |
55 |
| SH6-62-BSPP |
3/4 |
210 |
G 3/4 |
1 5/16 |
93 |
55 |
| SH8-62 |
1 |
210 |
1-11 1/2 NPTF |
1 5/8 |
106 |
64 |
| SH8-62-BSPP |
1 |
210 |
G 1 |
1 5/8 |
106 |
64 |
| SH12-62L |
1 1/2 |
105 |
1 1/4-11 1/2 NPTF |
2 1/2 |
124 |
76 |
| SH12-62N |
1 1/2 |
105 |
1 1/2-11 1/2 NPTF |
2 1/2 |
124 |
76 |
| SH12-62N-BSPP |
1 1/2 |
105 |
G 1 1/2 |
2 1/2 |
128 |
76 |
60系列阳接头
60 系列快换阳接头承压（液压油，流体，气体，蒸汽）可达 5000 psi，可与符合ISO 7241-B 标准的60系列阴接头配合连接。
派克60系列阀芯结构是双截止型，并且可与气体符合ISO 7241-B 标准的快换进行互换。
这些通用型快换接头有多种材料以及全尺寸范围可供货，包括高温蒸汽。派克的60系列作为一款多用途型产品，适用于各种应用，承压能力可达5000 psi。
技术参数：
- 尺寸范围：1/8” – 2-1/2”
- 材料：碳钢，黄铜，302 不锈钢，316 不锈钢
- 尾端连接：NPTF 内螺纹，ORB 内螺纹
- 密封可选：丁腈橡胶，EPR，氟橡胶，氯丁橡胶
市场：
- 工业液压
- 建筑机械
- 化工过程
- 商业清洗
- 农机设备
特点/优点：
- 可与全球范围内符合ISO 7241-B 标准的其他制造商的快换接头进行互换
- 多用途快换接头，广泛应用于各种应用
- 碳钢快换阳接头的本体使用硬化处理，有较好的强度及耐久性表现
- 316 不锈钢材料阳接头使用氟橡胶密封，提高其化学兼容性能
- 高温性能表现
应用：
- 工业液压管路
- 食品和化学品处理
- 水和冷却液管路
- 高压流体输送
- 高温流体输送
- 移动设备
- 清洁设备
- 干洗
- 蒸汽及部分气体
|
性能特点 |
主体尺寸： |
1/8, 1/4, 3/8, 1/2, 3/4, 1, 1 1/2, 2 1/2 inch |
max.运行压力： |
82 至 340 bar |
MAX.运行温度： |
200 至 400 °F
93 至 204 °C |
应用： |
Hydraulic, general purpose, vacuum to medium pressure |
品牌： |
Parker |
配件连接类型： |
Female Thread |
交换式： |
ISO 7241-1, series B |
结构材料： |
Steel, Brass, Stainless steel |
密封材料： |
Nitrile, EPR, Fluorocarbon |
真空额定压力： |
27.4 Inch-Hg
-0.9 bar |
流速： |
0.8 至 200 Gal/min
3 至 757 L/min |
介质： |
液压，蒸汽 |
符合规格： |
ISO 7241-1, B系列 |
半联轴器： |
Poppet 提升阀芯子 |
MIN.运行温度： |
-65 至 -15 °F
-54 至 -26 °C |
阀门类型： |
锥阀 |
螺纹尺寸： |
内螺纹 |
镀层类型： |
镀锌，白色三价铬钝化 |
阀门材料： |
黄铜，碳钢，303不锈钢，316不锈钢 |

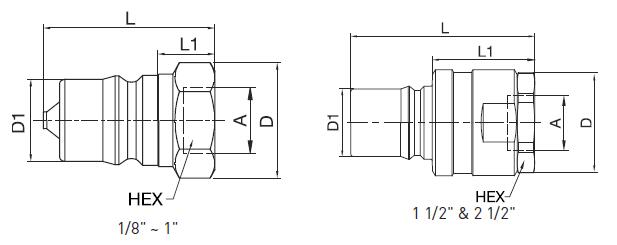

60系列 - 阳接头
黄铜 |
| 型号 |
本体尺寸
inch |
工作压力
bar |
螺纹A |
六角 HEX
inch |
总长 L
mm |
直径 D
mm |
| BH2-61 |
1/4 |
255 |
1/4-18 NPTF |
3/4 |
39 |
22 |
| BH2-61-BSPP |
1/4 |
255 |
G 1/4 |
3/4 |
43 |
22 |
| BH3-61 |
3/8 |
185 |
3/8-18 NPTF |
7/8 |
43 |
26 |
| BH3-61-BSPP |
3/8 |
185 |
G 3/8 |
7/8 |
50 |
26 |
| BH4-61 |
1/2 |
240 |
1/2-14 NPTF |
1 1/8 |
50 |
33 |
| BH4-61-BSPP |
1/2 |
240 |
G 1/2 |
1 1/8 |
54 |
33 |
| BH6-61 |
3/4 |
150 |
3/4-14 NPTF |
1 3/8 |
62 |
41 |
| BH6-61-BSPP |
3/4 |
150 |
G 3/4 |
1 3/8 |
65 |
41 |
| BH8-61 |
1 |
105 |
1-11 1/2 NPTF |
1 5/8 |
74 |
48 |
| BH8-61-BSPP |
1 |
105 |
G 1 |
1 5/8 |
74 |
48 |
| BH12-61L |
1 1/2 |
105 |
1 1/4-11 1/2 NPTF |
2 3/8 |
121 |
76 |
| BH12-61N |
1 1/2 |
105 |
1 1/2-11 1/2 NPTF |
2 3/8 |
121 |
76 |
| BH12-61L-BSPP |
1 1/2 |
105 |
G 1 1/4 |
2 3/8 |
121 |
70 |
| BH12-61N-BSPP |
1 1/2 |
105 |
G 1 1/2 |
2 3/8 |
125 |
70 |

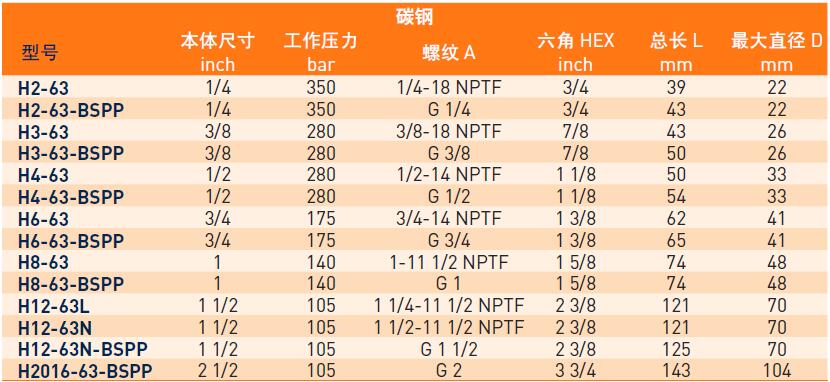

碳钢 |
| 型号 |
本体尺寸
inch |
工作压力
bar |
螺纹A |
六角 HEX
inch |
总长 L
mm |
直径 D
mm |
| H2-63 |
1/4 |
350 |
1/4-18 NPTF |
3/4 |
39 |
22 |
| H2-63-BSPP |
1/4 |
350 |
G 1/4 |
3/4 |
43 |
22 |
| H3-63 |
3/8 |
280 |
3/8-18 NPTF |
7/8 |
43 |
26 |
| H3-63-BSPP |
3/8 |
280 |
G 3/8 |
7/8 |
50 |
26 |
| H4-63 |
1/2 |
280 |
1/2-14 NPTF |
1 1/8 |
50 |
33 |
| H4-63-BSPP |
1/2 |
280 |
G 1/2 |
1 1/8 |
54 |
33 |
| H6-63 |
3/4 |
175 |
3/4-14 NPTF |
1 3/8 |
62 |
41 |
| H6-63-BSPP |
3/4 |
175 |
G 3/4 |
1 3/8 |
65 |
41 |
| H8-63 |
1 |
140 |
1-11 1/2 NPTF |
1 5/8 |
74 |
48 |
| H8-63-BSPP |
1 |
140 |
G 1 |
1 5/8 |
74 |
48 |
| H12-63L |
1 1/2 |
105 |
1 1/4-11 1/2 NPTF |
2 3/8 |
121 |
70 |
| H12-63N |
1 1/2 |
105 |
1 1/2-11 1/2 NPTF |
2 3/8 |
121 |
70 |
| H12-63N-BSPP |
1 1/2 |
105 |
G 1 1/2 |
2 3/8 |
125 |
70 |
| H2016-63-BSPP |
2 1/2 |
105 |
G 2 |
3 3/4 |
143 |

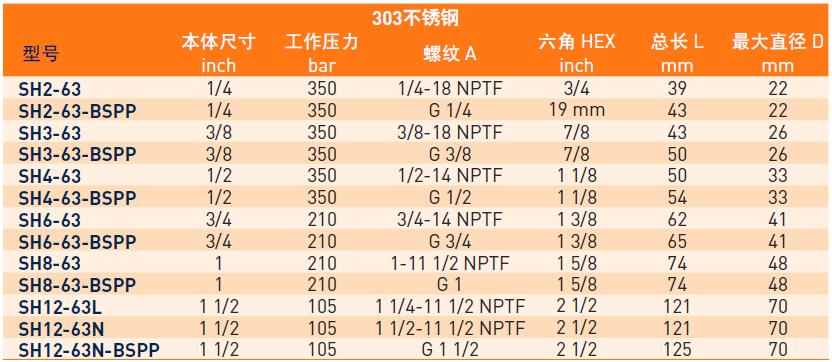

104 |
303不锈钢 |
| 型号 |
本体尺寸
inch |
工作压力
bar |
螺纹A |
六角 HEX
inch |
总长 L
mm |
直径 D
mm |
| SH2-63 |
1/4 |
350 |
1/4-18 NPTF |
3/4 |
39 |
22 |
| SH2-63-BSPP |
1/4 |
350 |
G 1/4 |
19 mm |
43 |
22 |
| SH3-63 |
3/8 |
350 |
3/8-18 NPTF |
7/8 |
43 |
26 |
| SH3-63-BSPP |
3/8 |
350 |
G 3/8 |
7/8 |
50 |
26 |
| SH4-63 |
1/2 |
350 |
1/2-14 NPTF |
1 1/8 |
50 |
33 |
| SH4-63-BSPP |
1/2 |
350 |
G 1/2 |
1 1/8 |
54 |
33 |
| SH6-63 |
3/4 |
210 |
3/4-14 NPTF |
1 3/8 |
62 |
41 |
| SH6-63-BSPP |
3/4 |
210 |
G 3/4 |
1 3/8 |
65 |
41 |
| SH8-63 |
1 |
210 |
1-11 1/2 NPTF |
1 5/8 |
74 |
48 |
| SH8-63-BSPP |
1 |
210 |
G 1 |
1 5/8 |
74 |
48 |
| SH12-63L |
1 1/2 |
105 |
1 1/4-11 1/2 NPTF |
2 1/2 |
121 |
70 |
| SH12-63N |
1 1/2 |
105 |
1 1/2-11 1/2 NPTF |
2 1/2 |
121 |
70 |
| SH12-63N-BSPP |
1 1/2 |
105 |
G 1 1/2 |
2 1/2 |
125 |
70 |
ISO 7241 series B Interchange, Multi-Purpose Quick Couplings (hydraulic, fluids, gas, steam) up to 5000 psi - 60 Series Couplers型号
| Part |
Maximum Working Pressure (psi) |
Application |
Body Size (inch) |
Body Material |
Connection Type |
Seal Material |
Locking Sleeve |
| BH1-60 |
3000 |
General Purpose |
1/8 |
Brass |
NPTF |
Nitrile |
na |
| BH1-60W |
3000 |
General Purpose |
1/8 |
Brass |
NPTF |
Ethylene propylene |
na |
| BH1-60Y |
3000 |
General Purpose |
1/8 |
Brass |
NPTF |
Fluorocarbon |
na |
| BH12-60L |
1500 |
General Purpose |
1 1/2 |
Brass |
NPTF |
Nitrile |
na |
| BH12-60N |
1500 |
General Purpose |
1 1/2 |
Brass |
NPTF |
Nitrile |
na |
| BH2-60 |
3700 |
General Purpose |
1/4 |
Brass |
NPTF |
Nitrile |
na |
| BH2-60-SL |
3700 |
General Purpose |
1/4 |
Brass |
NPTF |
Nitrile |
Yes |
| BH2-60-STM |
3700 |
Steam |
1/4 |
Brass |
NPTF |
Ethylene propylene |
na |
| BH2-60W |
3700 |
General Purpose |
1/4 |
Brass |
NPTF |
Ethylene propylene |
na |
| BH2-60Y |
3700 |
General Purpose |
1/4 |
Brass |
NPTF |
Fluorocarbon |
na |
| BH2016-60 |
1200 |
General Purpose |
2 1/2 |
Brass |
NPTF |
Nitrile |
na |
| BH3-60 |
2700 |
General Purpose |
3/8 |
Brass |
NPTF |
Nitrile |
na |
| BH3-60W |
2700 |
General Purpose |
3/8 |
Brass |
NPTF |
Ethylene propylene |
na |
| BH3-60Y |
2700 |
General Purpose |
3/8 |
Brass |
NPTF |
Fluorocarbon |
na |
| BH4-60 |
3500 |
General Purpose |
1/2 |
Brass |
NPTF |
Nitrile |
na |
| BH4-60-STM |
3500 |
Steam |
1/2 |
Brass |
NPTF |
Ethylene propylene |
na |
| BH4-60W |
3500 |
General Purpose |
1/2 |
Brass |
NPTF |
Ethylene propylene |
na |
| BH4-60Y |
3500 |
General Purpose |
1/2 |
Brass |
NPTF |
Fluorocarbon |
na |
| BH6-60 |
2200 |
General Purpose |
3/4 |
Brass |
NPTF |
Nitrile |
na |
| BH6-60-STM |
2200 |
Steam |
3/4 |
Brass |
NPTF |
Ethylene propylene |
na |
| BH6-60W |
2200 |
General Purpose |
3/4 |
Brass |
NPTF |
Ethylene propylene |
na |
| BH6-60Y |
2200 |
General Purpose |
3/4 |
Brass |
NPTF |
Fluorocarbon |
na |
| BH8-60 |
1500 |
General Purpose |
1 |
Brass |
NPTF |
Nitrile |
na |
| BH8-60-STM |
1500 |
Steam |
1 |
Brass |
NPTF |
Ethylene propylene |
na |
| BH8-60W |
1500 |
General Purpose |
1 |
Brass |
NPTF |
Ethylene propylene |
na |
| BH8-60Y |
1500 |
General Purpose |
1 |
Brass |
NPTF |
Fluorocarbon |
na |
| H1-62 |
5000 |
General Purpose |
1/8 |
Steel |
NPTF |
Nitrile |
na |
| H1-62-T4 |
5000 |
General Purpose |
1/8 |
Steel |
ORB |
Nitrile |
na |
| H1-62W |
5000 |
General Purpose |
1/8 |
Steel |
NPTF |
Ethylene propylene |
na |
| H1-62Y |
5000 |
General Purpose |
1/8 |
Steel |
NPTF |
Fluorocarbon |
na |
| H12-62-T20 |
1500 |
General Purpose |
1 1/2 |
Steel |
ORB |
Nitrile |
na |
| H12-62-T24 |
1500 |
General Purpose |
1 1/2 |
Steel |
ORB |
Nitrile |
na |
| H12-62L |
1500 |
General Purpose |
1 1/2 |
Steel |
NPTF |
Nitrile |
na |
| H12-62N |
1500 |
General Purpose |
1 1/2 |
Steel |
NPTF |
Nitrile |
na |
| H2-62 |
5000 |
General Purpose |
1/4 |
Steel |
NPTF |
Nitrile |
na |
| H2-62-407 |
5000 |
Pydraul 10E compatible |
1/4 |
Steel |
ORB |
Ethylene propylene |
na |
| H2-62-T6 |
5000 |
General Purpose |
1/4 |
Steel |
ORB |
Nitrile |
na |
| H2-62-T6SL |
5000 |
General Purpose |
1/4 |
Steel |
ORB |
Nitrile |
Yes |
| H2-62W |
5000 |
General Purpose |
1/4 |
Steel |
NPTF |
Ethylene propylene |
na |
| H2-62W-T6 |
5000 |
General Purpose |
1/4 |
Steel |
ORB |
Ethylene propylene |
na |
| H2-62Y |
5000 |
General Purpose |
1/4 |
Steel |
NPTF |
Fluorocarbon |
na |
| H2016-62 |
1500 |
General Purpose |
2 1/2 |
Steel |
NPTF |
Nitrile |
na |
| H2020-62 |
1500 |
General Purpose |
2 1/2 |
Steel |
NPTF |
Nitrile |
na |
| H2024-62 |
1500 |
General Purpose |
2 1/2 |
Steel |
NPTF |
Nitrile |
na |
| H3-62 |
4000 |
General Purpose |
3/8 |
Steel |
NPTF |
Nitrile |
na |
| H3-62-T8 |
4000 |
General Purpose |
3/8 |
Steel |
ORB |
Nitrile |
na |
| H3-62W |
4000 |
General Purpose |
3/8 |
Steel |
NPTF |
Ethylene propylene |
na |
| H3-62Y |
4000 |
General Purpose |
3/8 |
Steel |
NPTF |
Fluorocarbon |
na |
| H3-68 |
4000 |
Steam |
3/8 |
Brass |
NPTF |
Ethylene propylene |
na |
| H4-62 |
4000 |
General Purpose |
1/2 |
Steel |
NPTF |
Nitrile |
na |
| H4-62-T10 |
4000 |
General Purpose |
1/2 |
Steel |
ORB |
Nitrile |
na |
| H4-62W |
4000 |
General Purpose |
1/2 |
Steel |
NPTF |
Ethylene propylene |
na |
| H4-62Y |
4000 |
General Purpose |
1/2 |
Steel |
NPTF |
Fluorocarbon |
na |
| H6-62 |
2500 |
General Purpose |
3/4 |
Steel |
NPTF |
Nitrile |
na |
| H6-62-T12 |
2500 |
General Purpose |
3/4 |
Steel |
ORB |
Nitrile |
na |
| H6-62W |
2500 |
General Purpose |
3/4 |
Steel |
NPTF |
Ethylene propylene |
na |
| H6-62Y |
2500 |
General Purpose |
3/4 |
Steel |
NPTF |
Fluorocarbon |
na |
| H8-62 |
2000 |
General Purpose |
1 |
Steel |
NPTF |
Nitrile |
na |
| H8-62-T16 |
2000 |
General Purpose |
1 |
Steel |
ORB |
Nitrile |
na |
| H8-62Y |
2000 |
General Purpose |
1 |
Steel |
NPTF |
Fluorocarbon |
na |
| SH1-62 |
5000 |
General Purpose |
1/8 |
303 Stainless steel |
NPTF |
Nitrile |
na |
| SH1-62-T4 |
5000 |
General Purpose |
1/8 |
303 Stainless steel |
ORB |
Nitrile |
na |
| SH1-62W |
5000 |
General Purpose |
1/8 |
303 Stainless steel |
NPTF |
Ethylene propylene |
na |
| SH1-62Y |
5000 |
General Purpose |
1/8 |
303 Stainless steel |
NPTF |
Fluorocarbon |
na |
| SH12-62L |
1500 |
General Purpose |
1 1/2 |
303 Stainless steel |
NPTF |
Nitrile |
na |
| SH12-62N |
1500 |
General Purpose |
1 1/2 |
303 Stainless steel |
NPTF |
Nitrile |
na |
| SH2-62 |
5000 |
General Purpose |
1/4 |
303 Stainless steel |
NPTF |
Nitrile |
na |
| SH2-62-SL |
5000 |
General Purpose |
1/4 |
303 Stainless steel |
NPTF |
Nitrile |
Yes |
| SH2-62-T6 |
5000 |
General Purpose |
1/4 |
303 Stainless steel |
ORB |
Nitrile |
na |
| SH2-62W |
5000 |
General Purpose |
1/4 |
303 Stainless steel |
NPTF |
Ethylene propylene |
na |
| SH2-62Y |
5000 |
General Purpose |
1/4 |
303 Stainless steel |
NPTF |
Fluorocarbon |
na |
| SH3-62 |
5000 |
General Purpose |
3/8 |
303 Stainless steel |
NPTF |
Nitrile |
na |
| SH3-62-T8 |
5000 |
General Purpose |
3/8 |
303 Stainless steel |
ORB |
Nitrile |
na |
| SH3-62W |
5000 |
General Purpose |
3/8 |
303 Stainless steel |
NPTF |
Ethylene propylene |
na |
| SH3-62Y |
5000 |
General Purpose |
3/8 |
303 Stainless steel |
NPTF |
Fluorocarbon |
na |
| SH4-62 |
5000 |
General Purpose |
1/2 |
303 Stainless steel |
NPTF |
Nitrile |
na |
| SH4-62-T10 |
5000 |
General Purpose |
1/2 |
303 Stainless steel |
ORB |
Nitrile |
na |
| SH4-62W |
5000 |
General Purpose |
1/2 |
303 Stainless steel |
NPTF |
Ethylene propylene |
na |
| SH4-62Y |
5000 |
General Purpose |
1/2 |
303 Stainless steel |
NPTF |
Fluorocarbon |
na |
| SH6-62 |
3000 |
General Purpose |
3/4 |
303 Stainless steel |
NPTF |
Nitrile |
na |
| SH6-62-T12 |
3000 |
General Purpose |
3/4 |
303 Stainless steel |
ORB |
Nitrile |
na |
| SH6-62W |
3000 |
General Purpose |
3/4 |
303 Stainless steel |
NPTF |
Ethylene propylene |
na |
| SH6-62W-T12 |
3000 |
General Purpose |
3/4 |
303 Stainless steel |
ORB |
Ethylene propylene |
na |
| SH6-62Y |
3000 |
General Purpose |
3/4 |
303 Stainless steel |
NPTF |
Fluorocarbon |
na |
| SH8-62 |
3000 |
General Purpose |
1 |
303 Stainless steel |
NPTF |
Nitrile |
na |
| SH8-62-T16 |
3000 |
General Purpose |
1 |
303 Stainless steel |
ORB |
Nitrile |
na |
| SH8-62W |
3000 |
General Purpose |
1 |
303 Stainless steel |
NPTF |
Ethylene propylene |
na |
| SH8-62Y |
3000 |
General Purpose |
1 |
303 Stainless steel |
NPTF |
Fluorocarbon |
na |
| SSH1-62Y |
5000 |
General Purpose |
1/8 |
316 Stainless steel |
NPTF |
Fluorocarbon |
na |
| SSH12-62NY |
1500 |
General Purpose |
1 1/2 |
316 Stainless steel |
NPTF |
Fluorocarbon |
na |
| SSH2-62 |
5000 |
General Purpose |
1/4 |
316 Stainless steel |
NPTF |
Nitrile |
na |
| SSH2-62W |
5000 |
General Purpose |
1/4 |
316 Stainless steel |
NPTF |
Ethylene propylene |
na |
| SSH2-62Y |
5000 |
General Purpose |
1/4 |
316 Stainless steel |
NPTF |
Fluorocarbon |
na |
| SSH2-62Y-T6 |
5000 |
General Purpose |
1/4 |
316 Stainless steel |
ORB |
Fluorocarbon |
na |
| SSH2016-62Y |
1500 |
General Purpose |
2 1/2 |
316 Stainless steel |
NPTF |
Fluorocarbon |
na |
| SSH3-62 |
5000 |
General Purpose |
3/8 |
316 Stainless steel |
NPTF |
Nitrile |
na |
| SSH3-62W |
5000 |
General Purpose |
3/8 |
316 Stainless steel |
NPTF |
Ethylene propylene |
na |
| SSH3-62Y |
5000 |
General Purpose |
3/8 |
316 Stainless steel |
NPTF |
Fluorocarbon |
na |
| SSH3-62Y-T8 |
5000 |
General Purpose |
3/8 |
316 Stainless steel |
ORB |
Fluorocarbon |
na |
| SSH4-62 |
5000 |
General Purpose |
1/2 |
316 Stainless steel |
NPTF |
Nitrile |
na |
| SSH4-62W |
5000 |
General Purpose |
1/2 |
316 Stainless steel |
NPTF |
Ethylene propylene |
na |
| SSH4-62Y |
5000 |
General Purpose |
1/2 |
316 Stainless steel |
NPTF |
Fluorocarbon |
na |
| SSH4-62Y-T10 |
5000 |
General Purpose |
1/2 |
316 Stainless steel |
ORB |
Fluorocarbon |
na |
| SSH6-62 |
3000 |
General Purpose |
3/4 |
316 Stainless steel |
NPTF |
Nitrile |
na |
| SSH6-62W |
3000 |
General Purpose |
3/4 |
316 Stainless steel |
NPTF |
Ethylene propylene |
na |
| SSH6-62Y |
3000 |
General Purpose |
3/4 |
316 Stainless steel |
NPTF |
Fluorocarbon |
na |
| SSH6-62Y-T12 |
3000 |
General Purpose |
3/4 |
316 Stainless steel |
ORB |
Fluorocarbon |
na |
| SSH8-62Y |
3000 |
General Purpose |
1 |
316 Stainless steel |
NPTF |
Fluorocarbon |
na |
| SSH8-62Y-T16 |
3000 |
General Purpose |
1 |
316 Stainless steel |
ORB |
Fluorocarbon |
na |
ISO 7241 series B Interchange, Multi-Purpose Quick Couplings (hydraulic, fluids, gas, steam) up to 5000 psi - 60 Series Nipples型号
| Part |
Maximum Working Pressure (psi) |
Application |
Body Size (inch) |
Body Material |
Connection Thread Size (inch) |
Connection Type |
Seal Material |
| BH1-61 |
3000 |
General Purpose |
1/8 |
Brass |
1/8 - 27 |
NPTF |
Nitrile |
| BH1-61W |
3000 |
General Purpose |
1/8 |
Brass |
1/8 - 27 |
NPTF |
Ethylene propylene |
| BH1-61Y |
3000 |
General Purpose |
1/8 |
Brass |
1/8 - 27 |
NPTF |
Fluorocarbon |
| BH12-61L |
1500 |
General Purpose |
1 1/2 |
Brass |
1 1/4 - 11 1/2 |
NPTF |
Nitrile |
| BH12-61N |
1500 |
General Purpose |
1 1/2 |
Brass |
1 1/2 - 11 1/2 |
NPTF |
Nitrile |
| BH2-61 |
3700 |
General Purpose |
1/4 |
Brass |
1/4 - 18 |
NPTF |
Nitrile |
| BH2-61-STM |
3700 |
Steam |
1/4 |
Brass |
1/4 - 18 |
NPTF |
Ethylene propylene |
| BH2-61W |
3700 |
General Purpose |
1/4 |
Brass |
1/4 - 18 |
NPTF |
Ethylene propylene |
| BH2-61Y |
3700 |
General Purpose |
1/4 |
Brass |
1/4 - 18 |
NPTF |
Fluorocarbon |
| BH2016-61 |
1200 |
General Purpose |
2 1/2 |
Brass |
2 - 11 1/2 |
NPTF |
Nitrile |
| BH3-61 |
2700 |
General Purpose |
3/8 |
Brass |
3/8 - 18 |
NPTF |
Nitrile |
| BH3-61W |
2700 |
General Purpose |
3/8 |
Brass |
3/8 - 18 |
NPTF |
Ethylene propylene |
| BH3-61Y |
2700 |
General Purpose |
3/8 |
Brass |
3/8 - 18 |
NPTF |
Fluorocarbon |
| BH4-61 |
3500 |
General Purpose |
1/2 |
Brass |
1/2 - 14 |
NPTF |
Nitrile |
| BH4-61-STM |
3500 |
Steam |
1/2 |
Brass |
1/2 - 14 |
NPTF |
Ethylene propylene |
| BH4-61W |
3500 |
General Purpose |
1/2 |
Brass |
1/2 - 14 |
NPTF |
Ethylene propylene |
| BH4-61Y |
3500 |
General Purpose |
1/2 |
Brass |
1/2 - 14 |
NPTF |
Fluorocarbon |
| BH6-61 |
2200 |
General Purpose |
3/4 |
Brass |
3/4 - 14 |
NPTF |
Nitrile |
| BH6-61-STM |
2200 |
Steam |
3/4 |
Brass |
3/4 - 14 |
NPTF |
Ethylene propylene |
| BH6-61W |
2200 |
General Purpose |
3/4 |
Brass |
3/4 - 14 |
NPTF |
Ethylene propylene |
| BH6-61Y |
2200 |
General Purpose |
3/4 |
Brass |
3/4 - 14 |
NPTF |
Fluorocarbon |
| BH8-61 |
1500 |
General Purpose |
1 |
Brass |
1 - 11 1/2 |
NPTF |
Nitrile |
| BH8-61-STM |
1500 |
Steam |
1 |
Brass |
1 - 11 1/2 |
NPTF |
Ethylene propylene |
| BH8-61W |
1500 |
General Purpose |
1 |
Brass |
1 - 11 1/2 |
NPTF |
Ethylene propylene |
| BH8-61Y |
1500 |
General Purpose |
1 |
Brass |
1 - 11 1/2 |
NPTF |
Fluorocarbon |
| H1-63 |
5000 |
General Purpose |
1/8 |
Steel |
1/8 - 27 |
NPTF |
Nitrile |
| H1-63-T4 |
5000 |
General Purpose |
1/8 |
Steel |
7/16 - 20 |
ORB |
Nitrile |
| H1-63W |
5000 |
General Purpose |
1/8 |
Steel |
1/8 - 27 |
NPTF |
Ethylene propylene |
| H1-63Y |
5000 |
General Purpose |
1/8 |
Steel |
1/8 - 27 |
NPTF |
Fluorocarbon |
| H12-63-T20 |
1500 |
General Purpose |
1 1/2 |
Steel |
1 5/8 - 12 |
ORB |
Nitrile |
| H12-63-T24 |
1500 |
General Purpose |
1 1/2 |
Steel |
1 7/8 - 12 |
ORB |
Nitrile |
| H12-63L |
1500 |
General Purpose |
1 1/2 |
Steel |
1 1/4 - 11 1/2 |
NPTF |
Nitrile |
| H12-63N |
1500 |
General Purpose |
1 1/2 |
Steel |
1 1/2 - 11 1/2 |
NPTF |
Nitrile |
| H2-63 |
5000 |
General Purpose |
1/4 |
Steel |
1/4 - 18 |
NPTF |
Nitrile |
| H2-63-407 |
5000 |
Pydraul 10E compatible |
1/4 |
Steel |
9/16 - 18 |
ORB |
Ethylene propylene |
| H2-63-T6 |
5000 |
General Purpose |
1/4 |
Steel |
9/16 - 18 |
ORB |
Nitrile |
| H2-63W |
5000 |
General Purpose |
1/4 |
Steel |
1/4 - 18 |
NPTF |
Ethylene propylene |
| H2-63Y |
5000 |
General Purpose |
1/4 |
Steel |
1/4 - 18 |
NPTF |
Fluorocarbon |
| H2-63Y-T6 |
5000 |
General Purpose |
1/4 |
Steel |
9/16 - 18 |
ORB |
Fluorocarbon |
| H2-63Z |
5000 |
General Purpose |
1/4 |
Steel |
1/4 - 18 |
NPTF |
Neoprene |
| H2016-63 |
1500 |
General Purpose |
2 1/2 |
Steel |
2 - 11 1/2 |
NPTF |
Nitrile |
| H2020-63 |
1500 |
General Purpose |
2 1/2 |
Steel |
2 1/2 - 8 |
NPTF |
Nitrile |
| H2024-63 |
1500 |
General Purpose |
2 1/2 |
Steel |
3 - 8 |
NPTF |
Nitrile |
| H3-63 |
4000 |
General Purpose |
3/8 |
Steel |
3/8 - 18 |
NPTF |
Nitrile |
| H3-63-T8 |
4000 |
General Purpose |
3/8 |
Steel |
3/4 - 16 |
ORB |
Nitrile |
| H3-63W |
4000 |
General Purpose |
3/8 |
Steel |
3/8 - 18 |
NPTF |
Ethylene propylene |
| H3-63Y |
4000 |
General Purpose |
3/8 |
Steel |
3/8 - 18 |
NPTF |
Fluorocarbon |
| H3-69 |
4000 |
Steam |
3/8 |
Brass |
3/8 - 18 |
NPTF |
Ethylene propylene |
| H4-63 |
4000 |
General Purpose |
1/2 |
Steel |
1/2 - 14 |
NPTF |
Nitrile |
| H4-63-T10 |
4000 |
General Purpose |
1/2 |
Steel |
7/8 - 14 |
ORB |
Nitrile |
| H4-63W |
4000 |
General Purpose |
1/2 |
Steel |
1/2 - 14 |
NPTF |
Ethylene propylene |
| H4-63Y |
4000 |
General Purpose |
1/2 |
Steel |
1/2 - 14 |
NPTF |
Fluorocarbon |
| H6-63 |
2500 |
General Purpose |
3/4 |
Steel |
3/4 - 14 |
NPTF |
Nitrile |
| H6-63-T12 |
2500 |
General Purpose |
3/4 |
Steel |
1 1/16 - 12 |
ORB |
Nitrile |
| H6-63W |
2500 |
General Purpose |
3/4 |
Steel |
3/4 - 14 |
NPTF |
Ethylene propylene |
| H6-63Y |
2500 |
General Purpose |
3/4 |
Steel |
3/4 - 14 |
NPTF |
Fluorocarbon |
| H6-63Z |
2500 |
General Purpose |
3/4 |
Steel |
3/4 - 14 |
NPTF |
Neoprene |
| H8-63 |
2000 |
General Purpose |
1 |
Steel |
1 - 11 1/2 |
NPTF |
Nitrile |
| H8-63-T16 |
2000 |
General Purpose |
1 |
Steel |
1 5/16 - 12 |
ORB |
Nitrile |
| H8-63W |
2000 |
General Purpose |
1 |
Steel |
1 - 11 1/2 |
NPTF |
Ethylene propylene |
| H8-63Y |
2000 |
General Purpose |
1 |
Steel |
1 - 11 1/2 |
NPTF |
Fluorocarbon |
| SH1-63 |
5000 |
General Purpose |
1/8 |
303 Stainless steel |
1/8 - 27 |
NPTF |
Nitrile |
| SH1-63-T4 |
5000 |
General Purpose |
1/8 |
303 Stainless steel |
7/16 - 20 |
ORB |
Nitrile |
| SH1-63W |
5000 |
General Purpose |
1/8 |
303 Stainless steel |
1/8 - 27 |
NPTF |
Ethylene propylene |
| SH1-63Y |
5000 |
General Purpose |
1/8 |
303 Stainless steel |
1/8 - 27 |
NPTF |
Fluorocarbon |
| SH12-63L |
1500 |
General Purpose |
1 1/2 |
303 Stainless steel |
1 1/4 - 11 1/2 |
NPTF |
Nitrile |
| SH12-63N |
1500 |
General Purpose |
1 1/2 |
303 Stainless steel |
1 1/2 - 11 1/2 |
NPTF |
Nitrile |
| SH2-63 |
5000 |
General Purpose |
1/4 |
303 Stainless steel |
1/4 - 18 |
NPTF |
Nitrile |
| SH2-63-T6 |
5000 |
General Purpose |
1/4 |
303 Stainless steel |
9/16 - 18 |
ORB |
Nitrile |
| SH2-63W |
5000 |
General Purpose |
1/4 |
303 Stainless steel |
1/4 - 18 |
NPTF |
Ethylene propylene |
| SH2-63Y |
5000 |
General Purpose |
1/4 |
303 Stainless steel |
1/4 - 18 |
NPTF |
Fluorocarbon |
| SH3-63 |
5000 |
General Purpose |
3/8 |
303 Stainless steel |
3/8 - 18 |
NPTF |
Nitrile |
| SH3-63-T8 |
5000 |
General Purpose |
3/8 |
303 Stainless steel |
3/4 - 16 |
ORB |
Nitrile |
| SH3-63W |
5000 |
General Purpose |
3/8 |
303 Stainless steel |
3/8 - 18 |
NPTF |
Ethylene propylene |
| SH3-63Y |
5000 |
General Purpose |
3/8 |
303 Stainless steel |
3/8 - 18 |
NPTF |
Fluorocarbon |
| SH4-63 |
5000 |
General Purpose |
1/2 |
303 Stainless steel |
1/2 - 14 |
NPTF |
Nitrile |
| SH4-63-T10 |
5000 |
General Purpose |
1/2 |
303 Stainless steel |
7/8 - 14 |
ORB |
Nitrile |
| SH4-63W |
5000 |
General Purpose |
1/2 |
303 Stainless steel |
1/2 - 14 |
NPTF |
Ethylene propylene |
| SH4-63Y |
5000 |
General Purpose |
1/2 |
303 Stainless steel |
1/2 - 14 |
NPTF |
Fluorocarbon |
| SH6-63 |
3000 |
General Purpose |
3/4 |
303 Stainless steel |
3/4 - 14 |
NPTF |
Nitrile |
| SH6-63-T12 |
3000 |
General Purpose |
3/4 |
303 Stainless steel |
1 1/16 - 12 |
ORB |
Nitrile |
| SH6-63W |
3000 |
General Purpose |
3/4 |
303 Stainless steel |
3/4 - 14 |
NPTF |
Ethylene propylene |
| SH6-63W-T12 |
3000 |
General Purpose |
3/4 |
303 Stainless steel |
1 1/16 - 12 |
ORB |
Ethylene propylene |
| SH6-63Y |
3000 |
General Purpose |
3/4 |
303 Stainless steel |
3/4 - 14 |
NPTF |
Fluorocarbon |
| SH8-63 |
3000 |
General Purpose |
1 |
303 Stainless steel |
1 - 11 1/2 |
NPTF |
Nitrile |
| SH8-63-T16 |
3000 |
General Purpose |
1 |
303 Stainless steel |
1 5/16 - 12 |
ORB |
Nitrile |
| SH8-63W |
3000 |
General Purpose |
1 |
303 Stainless steel |
1 - 11 1/2 |
NPTF |
Ethylene propylene |
| SH8-63Y |
3000 |
General Purpose |
1 |
303 Stainless steel |
1 - 11 1/2 |
NPTF |
Fluorocarbon |
| SSH1-63Y |
5000 |
General Purpose |
1/8 |
316 Stainless steel |
1/8 - 27 |
NPTF |
Fluorocarbon |
| SSH12-63LY |
1500 |
General Purpose |
1 1/2 |
316 Stainless steel |
1 1/4 - 11 1/2 |
NPTF |
Fluorocarbon |
| SSH12-63NY |
1500 |
General Purpose |
1 1/2 |
316 Stainless steel |
1 1/2 - 11 1/2 |
NPTF |
Fluorocarbon |
| SSH2-63 |
5000 |
General Purpose |
1/4 |
316 Stainless steel |
1/4 - 18 |
NPTF |
Nitrile |
| SSH2-63W |
5000 |
General Purpose |
1/4 |
316 Stainless steel |
1/4 - 18 |
NPTF |
Ethylene propylene |
| SSH2-63Y |
5000 |
General Purpose |
1/4 |
316 Stainless steel |
1/4 - 18 |
NPTF |
Fluorocarbon |
| SSH2-63Y-T6 |
5000 |
General Purpose |
1/4 |
316 Stainless steel |
9/16 - 18 |
ORB |
Fluorocarbon |
| SSH2016-63Y |
1500 |
General Purpose |
2 1/2 |
316 Stainless steel |
2 - 11 1/2 |
NPTF |
Fluorocarbon |
| SSH3-63 |
5000 |
General Purpose |
3/8 |
316 Stainless steel |
3/8 - 18 |
NPTF |
Nitrile |
| SSH3-63W |
5000 |
General Purpose |
3/8 |
316 Stainless steel |
3/8 - 18 |
NPTF |
Ethylene propylene |
| SSH3-63Y |
5000 |
General Purpose |
3/8 |
316 Stainless steel |
3/8 - 18 |
NPTF |
Fluorocarbon |
| SSH3-63Y-T8 |
5000 |
General Purpose |
3/8 |
316 Stainless steel |
3/4 - 16 |
ORB |
Fluorocarbon |
| SSH4-63 |
5000 |
General Purpose |
1/2 |
316 Stainless steel |
1/2 - 14 |
NPTF |
Nitrile |
| SSH4-63W |
5000 |
General Purpose |
1/2 |
316 Stainless steel |
1/2 - 14 |
NPTF |
Ethylene propylene |
| SSH4-63Y |
5000 |
General Purpose |
1/2 |
316 Stainless steel |
1/2 - 14 |
NPTF |
Fluorocarbon |
| SSH4-63Y-T10 |
5000 |
General Purpose |
1/2 |
316 Stainless steel |
7/8 - 14 |
ORB |
Fluorocarbon |
| SSH6-63 |
3000 |
General Purpose |
3/4 |
316 Stainless steel |
3/4 - 14 |
NPTF |
Nitrile |
| SSH6-63W |
3000 |
General Purpose |
3/4 |
316 Stainless steel |
3/4 - 14 |
NPTF |
Ethylene propylene |
| SSH6-63Y |
3000 |
General Purpose |
3/4 |
316 Stainless steel |
3/4 - 14 |
NPTF |
Fluorocarbon |
| SSH6-63Y-T12 |
3000 |
General Purpose |
3/4 |
316 Stainless steel |
1 1/16 - 12 |
ORB |
Fluorocarbon |
| SSH8-63Y |
3000 |
General Purpose |
1 |
316 Stainless steel |
1 - 11 1/2 |
NPTF |
Fluorocarbon |
| SSH8-63Y-T16 |
3000 |
General Purpose |
1 |
316 Stainless steel |
1 5/16 - 12 |
ORB |
Fluorocarbon |
|
