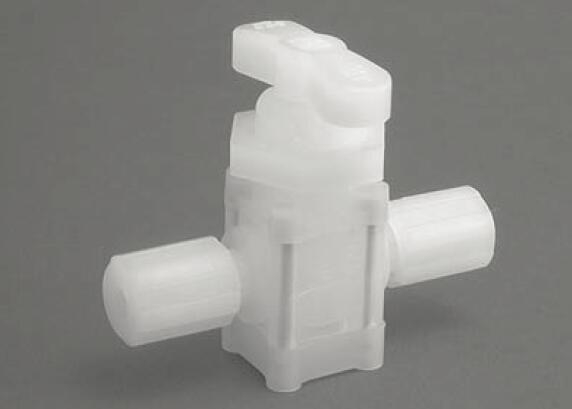

UHP PFA手动隔膜（1/4英寸）三通阀 - MV-10系列 UHP PFA Manual Diaphragm (1/4 inch) 3 Way Valve – MV-10 Series
MV-10系列PFA手动阀具有很高的泄漏完整性和出色的耐腐蚀性。 它具有三通配置，专为超高纯度（UHP）和腐蚀性流体应用（高达80 psig）而设计。
The MV-10 Series PFA Manual Valve offers high leak integrity and excellent resistance to corrosion. It is available in 3-way configurations and is designed for ultra-high purity (UHP) and aggressive fluid applications (up to 80 psig).
MV-10系列是1/4英寸手动操作的PFA隔膜阀，设计用于超高纯度（UHP）和腐蚀性气体和液体处理系统，包括那些在半导体制造和清洁区域应用中看到的系统。 该阀具有三通配置，并采用模制的PFA阀体和精密加工的密封区域，具有出色的泄漏完整性和耐化学性。
The MV-10 Series is a 1/4 inch manually operated PFA diaphragm valve that is designed for use in ultra-high purity (UHP) and aggressive gas and liquid handling systems, including those seen in semiconductor manufacturing and clean-area applications. The valve is available in 3-way configurations and utilizes a molded PFA body with precision-machined sealing areas for superior leak integrity and chemical resistance.
MV-10系列配备了一件式的改性PTFE隔膜，具有出色的柔韧性和高循环寿命，可降低更换成本并减少停机时间。 它还具有含氟聚合物涂层的不锈钢弹簧，可减少腐蚀性环境的影响，并与多种工艺介质兼容。 根据客户要求，MV-10系列阀门可以安装多种口径配置，包括Parflare和Pargrip管件。 这些配件减少了组装和安装时间，同时确保了密封性，以确保清洁度至关重要的应用中的性能。
The MV-10 Series is equipped with a one-piece modified PTFE diaphragm, which provides excellent flexibility and high cycle life for lower replacement costs and less downtime. It also features a Fluoropolymer-coated stainless steel spring, which reduces the effects of corrosive environments and enables compatibility with a wide range of process media. Depending on customer requirements, MV-10 Series valves can be fitted with a variety of port configurations, including Parflare and Pargrip tube fittings. The fittings reduce assembly and installation time, while ensuring a leak-tight seal for performance in applications where cleanliness is critical.
MV-10系列PFA阀的严格设计可控制阀座和隔膜的应力，从而提供可靠且免维护的使用寿命。 它的榫槽密封确保了隔膜与阀体之间的可靠密封，从而大程度地减少了颗粒截留和隔离工艺介质。 该阀具有一个完整的1/4英寸孔口，在高达80 psig的工作压力下没有大流量的限制。 流量范围为0.20 – 0.62，具体取决于端口大小和配置。
The MV-10 Series PFA valve's exacting design controls seat and diaphragm stresses to provide a reliable and maintenance-free service life. Its tongue and groove seal ensures a positive diaphragm to body seal, resulting in minimal particle entrapment and isolation of process media. The valve features a full 1/4 inch orifice with no restrictions for maximum flow at working pressures up to 80 psig. Flow capacities range from 0.20 – 0.62 depending on port size and configuration.
MV-10是1/4圈操作的，具有可拆卸的手柄，可防止篡改，从而无需单独的锁定装置。
The MV-10 is 1/4 turn operated and has a removable handle for tamper resistance, which eliminates the requirement for a separate lockout device.
UHP PFA手动隔膜（1/4英寸）三通阀 - MV-10系列 UHP PFA Manual Diaphragm (1/4 inch) 3 Way Valve – MV-10 Series
MV-10 PFA三通隔膜阀用于高纯半导体行业。也是超纯水和腐蚀性化学品或气体应用的选择。
MV-10 PFA三通隔膜阀用于高纯半导体行业。也是超纯水和腐蚀性化学品或气体应用的理想选择.采用模铸高纯PFA阀体，带有精密加工密封区域。使用一片式加工改性聚四氟乙烯隔膜，获得优良的柔韧性和使用寿命。1/4”全通径提供紧凑结构的大流通能力。一片式精密加工隔膜材料为新技术改性聚四氟乙烯，超过传统聚四氟乙烯5倍弯曲寿命。正向流通关闭榫槽式阀座和隔膜和阀体密封隔膜。PVDF涂层不锈钢弹簧。1/4圈可拆卸手柄，有效降低误操作.
市场Markets:
- Semiconductor
- Analytical Laboratory
- Pharmaceutical
- BioPharm
- Aerospace
- Industrial
-半导体
-分析实验室
-制药
-生物制药
-航空航天
-工业
特点/优势Features/Benefits:
- Excellent leak integrity
- Modified PTFE diaphragm and Fluoropolymer-coated stainless steel spring provide high cycle life and exceptional resistance to corrosion
- Pressure rated in both forwards and backwards direction from vacuum to 80 psig
- Available in 3-way configurations
- Can be fitted with a variety of port configurations, including Parflare and Pargrip tube fittings
- 1/4 turn operated with removable handle for tamper resistance
- Ambient temperature range: 0°F to +150° F (-17°C to +66° C)
- Fluid temperature range: 0°F to +266° F (-17°C to +130° C)
-出色的泄漏完整性
-改性的PTFE隔膜和涂有氟聚合物的不锈钢弹簧可提供较高的循环寿命和出色的耐腐蚀性
-额定压力范围为正负，从真空至80 psig
-3向配置
-可以配备多种端口配置，包括Parflare和Pargrip管配件
-1/4圈，可移动手柄，可防止篡改
-环境温度范围：0°F至+ 150°F（-17°C至+ 66° C）
-流体温度范围：0°F至+ 266°F（-17°C至+ 130°C）
应用Applications:
- Corrosive and specialty gases
- Semiconductor Tools
- Tool Hook-ups
- Valve Manifold Boxes (VMBs)
-腐蚀性和特种气体
-半导体工具
-工具连接
-阀门歧管箱（VMB）
Technical Specifications
| Wetted Material: |
PFA, Modified PTFE |
| Non-Wetted Material: |
PFA, PVDF, 18-8-SS, Viton Seals, PTFE Coated SS Springs |
| Pressure Rating: |
27" HG Vacuum (913 mbar) to 80 psig (5.5 bar) (Forward) (Backward) |
| Maximum Ambient Temperature: |
66 °C, 150 °F |
| Minimum Ambient Temperature: |
17 °C, 0 °F |
| Maximum Fluid Temperature: |
130 °C, 266 °F |
| Minimum Fluid Temperature: |
17 °C, 0 °F |
| Flow Rate: |
Cv: 0.60, 0.24, 0.62, 0.20 |
| Flow Coefficient: |
Kv: 2.8 to 8.8 L/min |
| Flow Control: |
3 Way |
UHP PFA Manual Diaphragm (1/4 inch) 3 Way Valve – MV-10 Series 型号
|
