Parker PFA阀
Parker PFA Valves

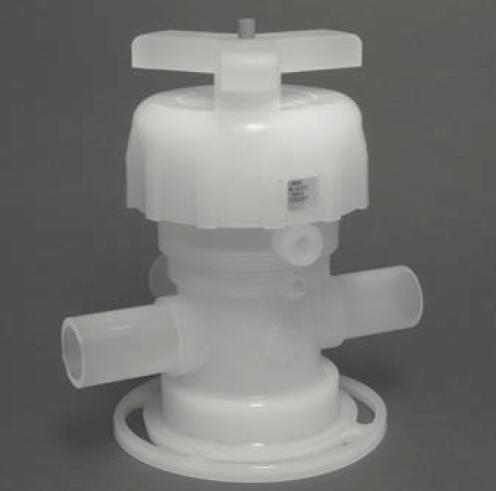

UHP 超高纯 PFA手动隔膜 (3/4") 3 通阀 – MV-16系列UHP超高纯 PFA 手动隔膜 (3/4") 3通阀 – MV-16系列 Manual Diaphragm (3/4 inch) 3 Way Valve – MV-16 Series

MV-16 系列PFA隔膜阀提供高泄露完整性和优异的耐腐蚀性。它有3通型，用于超高纯(UHP)和腐蚀性流体和气体处理 应用。 The MV-16 Series PFA Diaphragm Valve offers high leak integrity and excellent resistance to corrosion. It is available in 3-way configurations and is designed for ultra-high purity (UHP) and aggressive liquid and gas applications.

MV-16 系列是3/4PFA手动隔膜阀，用于超高纯(UHP)和腐蚀性流体处理应用，包括半导体制造操作。阀门有3通型，采用成型PFA阀体和精密加工密封区域，具有更高的泄露完整性和耐化学性。The MV-16 Series is a 3/4 inch PFA manual diaphragm valve that is designed for use in ultra-high purity (UHP) and aggressive fluid handling applications, including semiconductor manufacturing operations. The valve is available in 3-way configurations and utilizes a molded PFA body with precision-machined sealing areas for superior leak integrity and chemical resistance.

MV-16系列配备一体式改性聚四氟乙烯隔膜，提供优异的柔韧性和较之传统聚四氟乙烯更长久的循环寿命。阀门采用氟聚合物涂层不锈钢弹簧，降低腐蚀性环境的影响，与多种工艺介质实现兼容。根据客户需求，MV-16系列阀门可配套多种连接形式，包括Parflare和Parbond管接头。接头减少装配和安装时间，以获得洁净至关重要的应用中无泄漏密封性能。 The MV-16 Series is equipped with a one-piece modified PTFE diaphragm, which provides excellent flexibility and higher cycle life than conventional PTFE. The valve also features an Fluoropolymer-coated stainless steel spring, which reduces the effects of corrosive environments and enables compatibility with a wide range of process media. Depending on customer requirements, MV-16 Series valves can be fitted with a variety of port configurations, including Parflare and Parbond tube fittings. The fittings reduce assembly and installation time, while ensuring a leak-tight seal for performance in applications where cleanliness is critical.

MV-16系列PFA阀门的严格设计控制阀座和隔膜应力，同稳定和无维护使用寿命。它的榫槽密封以实现隔膜与阀体的稳定密封，形成高循环寿命、更低的维修成本，隔离工艺介质。阀门采用3/4全通径，紧凑结构无流量限制，工作压力上限120 psig。流量取决于结构和接口类型(MV-16 Parbond和Parflare连接方式可达7.9 C?v)。MV-16可多圈旋转，允许精密流量调整。The MV-16 Series PFA valve's exacting design controls seat and diaphragm stresses to provide a reliable and maintenance-free service life. Its tongue and groove seal ensures a positive diaphragm to body seal, resulting in high cycle life, lower replacement costs, and isolation of process media. The valve features a full 3/4 inch orifice with no restrictions for maximum flow in a compact package at working pressures up to 120 psig. Flow capacities are dictated by configuration and end type (up to 7.9 C?v for MV-16 with Parbond or Parflare connection). The MV-16 has multi-turn capability, which allows for precise flow adjustment.

UHP PFA Manual Diaphragm (3/4 inch) 3 Way Valve – MV-16 Series

市场Markets:

- Semiconductor
- Analytical Laboratory
- Pharmaceutical
- BioPharm
- Aerospace
- Industrial
- 半导体
- 分析试验室
- 制药
- 生物制药
- 航空航天
- 工业

特点/优势Features/Benefits:

- Excellent leak integrity
- Modified PTFE diaphragm and Fluoropolymer-coated stainless steel spring provide high cycle life and exceptional resistance to corrosion
- Pressure rated in both forwards and backwards direction from vacuum to 120 psig
- Available in 3-way configuration
- Can be fitted with a variety of port configurations, including Parflare and Parbond tube fittings
- Multi-turn capability allows for precise flow adjustment
- MV-16 Series has multi-turn capability, which allows for precise flow adjustment
- Ambient temperature range: 0°F to +150° F (-17°C to +66° C)
- Fluid temperature range: 0°F to +266° F (-17°C to +130° C)
- 出色的泄露完整性
- 改性聚四氟乙烯隔膜和氟聚合物涂层不锈钢弹簧提供高循环寿命和优异的耐腐蚀性
- 正反向压力范围：真空到120 psig
- 有3通型
- 可配套多种连接形式，包括Parflare和Parbond管接头
- 可多圈旋转，允许精密流量调整
- MV-16系列可多圈旋转，允许精密流量调整
- 环境温度范围:0°F 至 +150° F (-17°C 至 +66° C)
- 流体温度范围:0°F 至 +266° F (-17°C 至 +130° C)

应用Applications:

- Corrosive and specialty gases
- Semiconductor Tools
- Tool Hook-ups
- Valve Manifold Boxes (VMBs)
- 腐蚀性和特殊气体
- 半导体工具
- 工具挂钩
- 阀组箱 (VMBs)

Technical Specifications

UHP PFA Manual Diaphragm (3/4 inch) 3 Way Valve – MV-16 Series 型号
