Parker 球阀
Parker Ball Valves

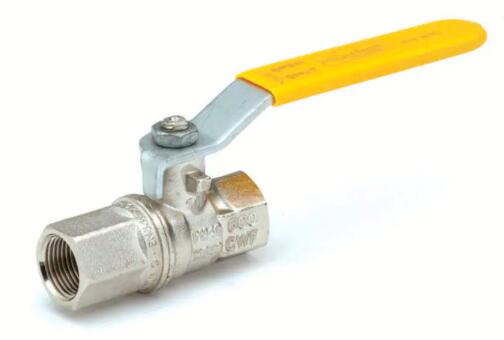

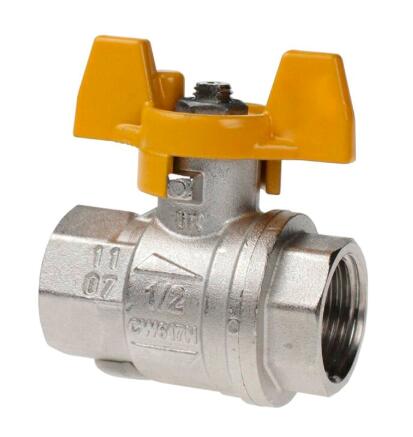

BVGL & BVGLOCK 系列球阀 - 带加长内螺纹Ball Valve Series BVGL & BVGLOCK - Long Female Threads

BVGL＆BVGLOCK系列球阀具有镀镍黄铜阀体和镀铬黄铜阀球，并且为长内螺纹结构设计。BVGL & BVGLOCK series ball valves feature a nickel plated brass body and a chrome plated brass ball and are manufactured with long female threads.

派克的BVGL＆BVGL系列球阀按照DIN 2999 / ISO 228标准制造，带有长内螺纹。这使得该阀既可以与Prestolok和黄铜转换接头一起使用，也可以与派克的碳钢液压接头（例如Tiple-Lok，O-Lok，EO和BSPP锥螺纹接头）一起使用。Parker's BVGL & BVGL series ball valves are manufactured with long female threads in accordance to DIN 2999/ISO 228. This enables the valves to be used with Prestolok and brass adaptors but also Parker's range of steel hydraulic fittings, e.g. Tiple-Lok, O-Lok, EO, and BSPP coned adaptors.

这些球阀配有防挤压杆，以防止在压力峰值时爆裂。阀杆由两个氟碳O形圈密封，以实现更大的安全性和性能。所有阀门均为全流量。这限制了流体通过阀门时所产生的湍流，从而将压降降至较低。These ball valves are fitted with an anti extrusion stem to prevent blow out in the case of pressure peaks. The stem is sealed with two Fluorocarbon O-rings for maximum safety and performance. All valves are full-flow. This limits the turbulence created by the passage of fluid across the valve, minimizing pressure drop.

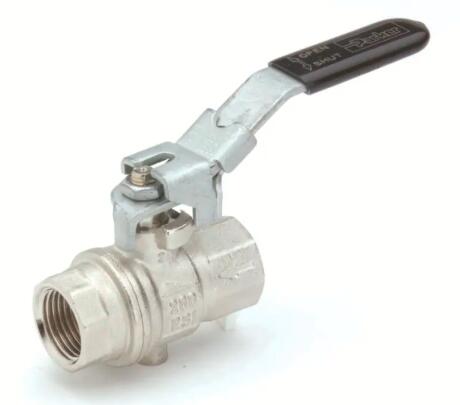

BVGLOCK球阀具有可锁定的手柄和PTFE填料压盖。BVGLOCK球阀符合欧洲指令DI 89/392 / CEE中有关电源隔离的要求，并符合DU Travail法规L233-5段中有关机器和材料的健康和安全要求。The BVGLOCK ball valves feature a lockable handle and a PTFE packing gland. The BVGLOCK ball valves meet the requirements of European directive DI 89/392/CEE relating to the isolation of power supply and to meet the health and safety requirements for machines and materials in paragraphs L233-5 of the code DU Travail.

Ball Valve Series BVGL & BVGLOCK - Long Female Threads

市场Markets:
- Industrial
- Transportation
- Oil & Gas
- Chemical
- 工业
- 交通运输
- 石油和加油站
- 化学

特点与优势Features/Benefits:
- Nickel plated brass body
- Chrome plated brass ball
- PTFE seats/seals
- Fluorocarbon stem seal
- 镀镍黄铜主体
- 镀铬黄铜球
- PTFE阀座/密封
- 氟碳管密封

应用Applications:
- Automotive
- Cleaning Equipment
- 汽车
- 清洁工具

Technical Specifications

Ball Valve Series BVGL & BVGLOCK - Long Female Threads 型号
