Parker 流量控制阀
Parker Flow Control Valves

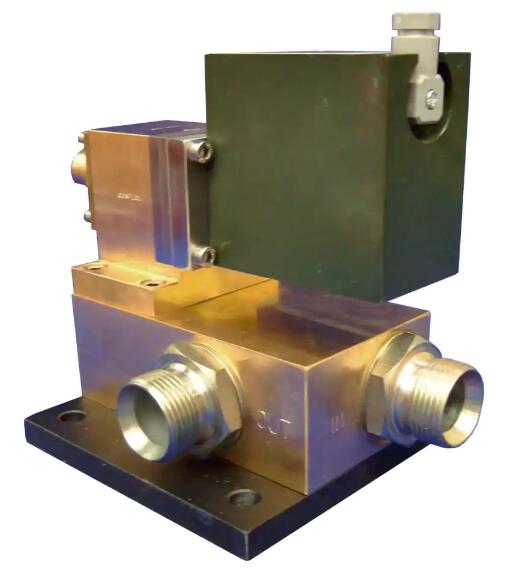

流体管路截止阀 - Conflow 5042系列 Fluid Line Stop Valves - Code 5042

派克的 Conflow 5042系列应用于地表以下，是一个高效的本安型水流量控制开关装置。 Parker Conflow's Code 5042 is a highly effective Intrinsically Safe water flow switching device for use underground in dust suppression applications.

派克的 Conflow 5042系列应用于地表以下，是一个高效的本安型水流量控制开关装置。 Parker Conflow's Code 5042 is a highly effective Intrinsically Safe water flow switching device for use underground in dust suppression applications.

已注册为本安型 (IS) 井下环境防爆使用，该先导阀可用于高达100 bar的压力。它由两部分组成：阀门（沾湿部分）和电磁阀。 Certified as being Instrinsically Safe (IS) for underground use in explosive atmospheres, this pilot-operated valve can be used with pressures up to 100 bar. It consists of two halves – valve (wet end) and solenoid.

该阀是先导式截止阀，它只需要一个小的力即可打开。电磁阀有一部分是电磁线圈（驱动线圈），通电时，会导致一个温和的铁芯在线圈内轴向移动。这种运动产生的力超过了在沾湿部分操作先导阀所需的力。 The valve is a pilot operated stop-valve, which requires only a small force to open fully. The solenoid half is an electrical coil (driver) which, when energised, causes a mild steel core to move axially within the coil. This movement exerts a force in excess of that required to operate the pilot valve in the wet end.

尺寸 1/2, 3/4, 1和 2”这些版本可选和其流量控制可达180 GPM。It is available in 1/2", 3/4", 1" & 2” versions and controls flows up to 180 GPM.

该设备由12V直流电源供电，设计成一种适合井下使用的本安型低能量电源。 Operated by a 12V DC supply, the device has been designed to operate with an intrinsically safe low energy supply suitable for underground use.

市场Markets:

- Quarrying
- Mining
- 采石厂
- 采矿业

特点/优势Features/Benefits:

- Rapid shut off time provides efficient use of water.
- Safety – operated by a 12V DC supply - uses low voltage unit for operating underground.
- 快速关闭时间可有效控制用水量。
- 安全-由12V直流电源供电-使用低压装置进行井下操作。

应用Applications:

- Controlling belt sprays.
- Dust suppression on the cutting heads in mines.
- Control of water cooling to trunk conveyor belt drives.
- 控制皮带喷雾。
- 矿山切割头上的粉尘抑制。
- 控制冷却水到主干传送带驱动器。

Technical Specifications

Fluid Line Stop Valves - Code 5042 型号
