Parker 针阀
Parker Needle Valves

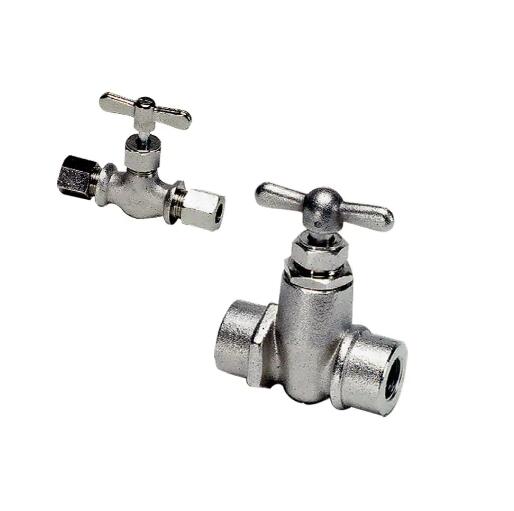

针型阀 Needle Valves

派克乐可利紧凑型针阀可安装在任何系统中，用来实现精确的无泄漏流体控制以及优异的使用寿命。Parker Legris compact needle valves can be installed in any system and are designed for applications requiring accurate leak-free fluid control and excellent service life.

派克乐可利紧凑型针阀可以安装在不同系统中，为精密无泄漏流体控制及优异的使用寿命而设计。Parker Legris compact needle valves can be installed in any system and are designed for applications requiring accurate leak-free fluid control and excellent service life.

特点/优势Features/Benefits:

- 坚固耐用，易于安装使用Robust and Easy-to-Use

- Accurate flow control
- Forged brass for improved long-term mechanical strength
- Robust stem for good operational reliability
- Corrosion resistance
? 精密流量控制
? 锻造黄铜可提高机械强度，延长使用寿命
? 阀杆坚固耐用，具有良好稳定的操作性。
? 耐腐蚀性能

- 大范围Wide range

- Two materials (nickel-plated brass and stainless steel) suitable for many applications
- Numerous valve and safety accessory configurations
? 两种材质适于多用应用需求（铜镀镍和不锈钢）
? 多种阀门和安全附件配置

市场Markets:

- Packaging
- Wearing Apparel
- Lumber & Wood
- Rubber & Tire Processing
- Plastic Processing
- Water
- Rail
? 包装
? 纺织
? 木材砍伐/木材加工制造
? 橡胶与轮胎加工
? 塑料加工
? 水
? 轨道交通

应用Applications:

- Allow/Stop Fluid Circulation on Industrial Circuits with Accuracy
- Suitable for Slightly Corrosive Industrial Fluids
? 正确地允许/停止工业回路上的流体介质循环
? 适用于微腐蚀工业流体介质

技术Technologies:

- Pressure relief valve
- Industrial valves
- Gauge valve
- Brass needle valve
- Stainless steel needle valve
? 泄压阀
? 工业阀门
? 表阀
? 黄铜针阀
? 不锈钢针阀

技术特性Technical Characteristics:

- Fluids:
Brass: Compressed air, water, industrial fluids, etc. Other fluids: contact us
Stainless steel: Many fluids
- Materials: zamk, nickel-plated brass or 316L stainless steel, mineral fibre, nickel-plated shot-blasted brass or stainless steel, silicone free
- Pressure:
Brass: 0 to 120 bar
Stainless steel: 0 to 400 bar
- Temperature:
Brass: -20°C to +100°C (except model 0510)
Stainless steel: -20°C to 180°C
? 流体:
黄铜：压缩空气,水,工业流体等等,其他流体：请与我们联络
不锈钢：多种流体介质
? 材料：锌合金，黄铜镀镍或316L不锈钢，矿物纤维，喷丸强化的镀镍黄铜或不锈钢，无硅
? 压力范围：
黄铜：0 到 120 bar
不锈钢：0 到 400 bar
? 温度范围：
黄铜：-20°C 到 +100°C
不锈钢：-20°C 到180°C

法规条例Regulations:

- DI: 97/23/EC (module PED A - diameters greater than 25 mm)
- DI: 2006/42/EC (Machinery Directive)
- DI: 2002/95/EC (RoHS)
- RG: 1907/2006 (REACH)
? DI：97/23/EC (欧盟PED认证A模式 - 直径大于25mm)
? DI：2006/42/EC (机械指令)
? DI：2002/95/EC (欧洲RoHS指令)
? RG：1907/2006 (欧盟REACH法规)

产品类型Product Types:

- In-Line Needle Valve, Female BSPP Thread
- In-Line Needle Valve, Male/Female BSPP Thread
- In-Line Needle Valve with Compression Connections
- Right-Angle Needle Valve, Female BSPP Thread
- Right-Angle Needle Valve, Male/Female BSPP Thread
- Needle Drain Valve, Male BSPP and Metric Thread
- Needle Drain Valve, Male NPT Thread
- Automatic Vent Pressure Gauge Valve, Female BSPP Thread
- Pressure Relief Valve, Male BSPP Thread
- Needle Valve, Female BSPP Thread
? 直通针阀，BSPP 内螺纹
? 直通针阀，BSPP 外/内螺纹
? 卡套式连接直通球阀
? 直角型针阀，BSPP内螺纹
? 直角型针阀，BSPP 外/内螺纹
? 针式排泄阀，BSPP 外螺纹和公制螺纹
? 针式排泄阀，NPT外螺纹
? 压力表用自动排气阀，BSPP 内螺纹
? 排气阀，BSPP外螺纹
? 针阀，BSPP内螺纹

Technical Specifications

Needle Valves 型号
