Parker 流量控制阀
Parker Flow Control Valves

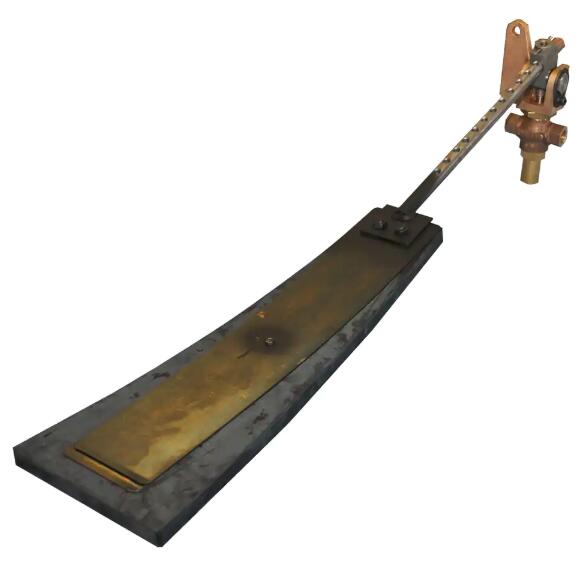

钟摆式阀门 - 派克的 Conflow 15系列 Pendulum Valves - Code 15

派克的Conflow 15系列摆尘阀适用于输送带，通过一个简单的凸轮操作调节液体的流量，因此更大限度地减少水的使用。 Parker Conflow's Code 15 pendulum dust suppression valve is used on conveyor belts to regulate the flow of liquid through a simple cam operation, therefore minimising water usage.

派克的 Conflow 15系列摆尘阀适用于输送带，通过一个简单的凸轮操作调节液体的流量，因此大限度地减少水的使用。它在派克的Conflow喷雾连接头由垂直挂桨运动调节液体的流量。只有当钟摆从垂直位置移动时，阀门才会打开，从而使流体流动。 Parker Conflow's Code 15 pendulum dust suppression valve is used on conveyor belts to regulate the flow of liquid through a simple cam operation, therefore minimising water usage. It operates in conjunction with Parker Conflow's spray heads to regulate the flow of liquid by movement of a vertically hanging paddle. The valve opens only when the pendulum is moved from the vertical position, allowing the fluid to flow.

派克的 Conflow 15系列可在 1/2”和 3/4”的尺寸大小中选择，并且其工作压力上限为105 bar。 Code 15 is available in 1/2” to a maximum working pressure of 105 bar.

钟摆式阀门 - 派克的 Conflow 15系列 Pendulum Valves - Code 15

市场Markets:

- Quarrying
- Mining
- Anything with a conveyed load which creates dust.
- 采石厂
- 采矿业
- 运输负载时产生灰尘的情况。

特点/优势Features/Benefits:

- Simple method of dust suppression, low maintenance and mechanically operated.
- Only sprays when necessary, saving water.
- Adjustable cam for greater flexibility.
- Manufactured from fire resistant paddle material.
- Easy to install and maintain.
- Adjustable pendulum length.
- Heavy duty construction ideal for mineral processing.
- Can be used in a sequence.
- 简单的防尘、低维护和机械操作的方法。
- 必要时喷洒，节约用水。
- 可调凸轮以获得更大的灵活性。
- 由耐火桨叶材料制成。
- 易于安装和维护。
- 可调摆长。
- 重型结构矿物加工的选择。
- 可排列使用。

应用Applications:

- Supplying dust suppression water at belt conveyor transfer points, chutes and bunkers and feeder breakers in mining and quarrying.
- 在带式输送机转运点除尘水供应，在采矿业和采石厂的溜槽和掩体和馈线断路器

Technical Specifications

Pendulum Valves - Code 15 型号
